Matrix T7x - Page 31

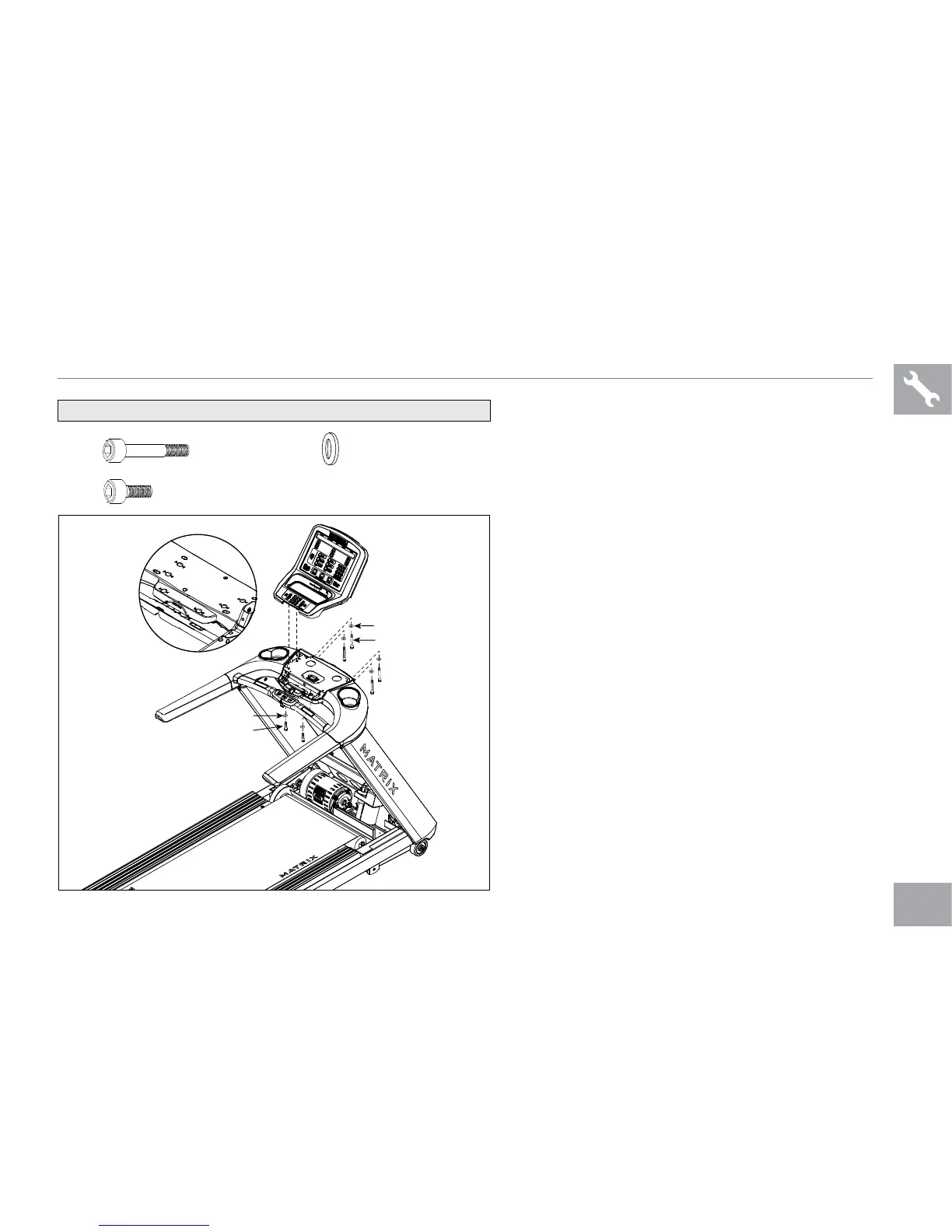

ASSEMBLY STEP 6
A Open HARDWARE BAG 4.
B Attach MAIN FRAME BOOTS using 4
SCREWS (D).
C Before the first use, lubricate the treadmill
deck by following the instructions in the
MAINTENANCE section in the TREADMILL
GUIDE.
13
SOCKET HEAD CAP SCREW
Qty: 4
16
SOCKET HEAD CAP SCREW
Qty: 2
23
RIBBED LOCK WASHER
Qty: 6
YELLOW HARDWARE BAG CONTENTS :
15
14
13
23
16
23
Console wire
Ferrite cord
Console wire assembly
through the ferrite
and fasteners
fasteners
