Part #: Part Name: Outline: Dimensions: Quantity: Bag Color:
10 020090-00 Socket head cap screw
M8 x 20mm 10 Black
14 0000086571 Flat Washer
6.2 x 12 x 1.6 10 Black
20 0000084935 Left Connection Bracket SPHC 4.0T 1
21 0000084936 Right Connection Bracket
SPHC 4.0T 1
11 004541-AC Socket Head Cap Screw M8 x 1.25P x 45 mm 2 White
12 035882-AB Socket Head Cap Screw
M8 x 1.25P x 75 mm 4 White
14 0000086571 Flat Washer
6.2 x 12 x 1.6T 6 White
17 004539-AD Socket Head Cap Screw
M8 x 1.25P x 25mm 2 Blue
19 0000088905 Spacer 6.2 x 12.0 x 1.6 2 Blue
15 004859-AC
Button Socket Head Cap
Screw
M8 x 1.25 x 20 mm 6 Red
14 0000086571 Flat Washer 6.2 x 12 x 1.6T 6 Red
13 020072-00 Socket Head Cap Screw M8 x 1.25 x 60mm 4 Yellow
16 062769-00 Socket Head Cap Screw M8 x 1.25 x 15mm 2 Yellow
23 0000089835 Ribbed Lock Washer 8.5 x 12.8 x .8/1.3H 6 Yellow
22 0000086284 Power Cord Holder SPHC 1.6 1 Green
002153-C Power Cord 1 Green
18 004386-00 Button Head Screw 6.2 x 12.0 x 1.6T 2 Green

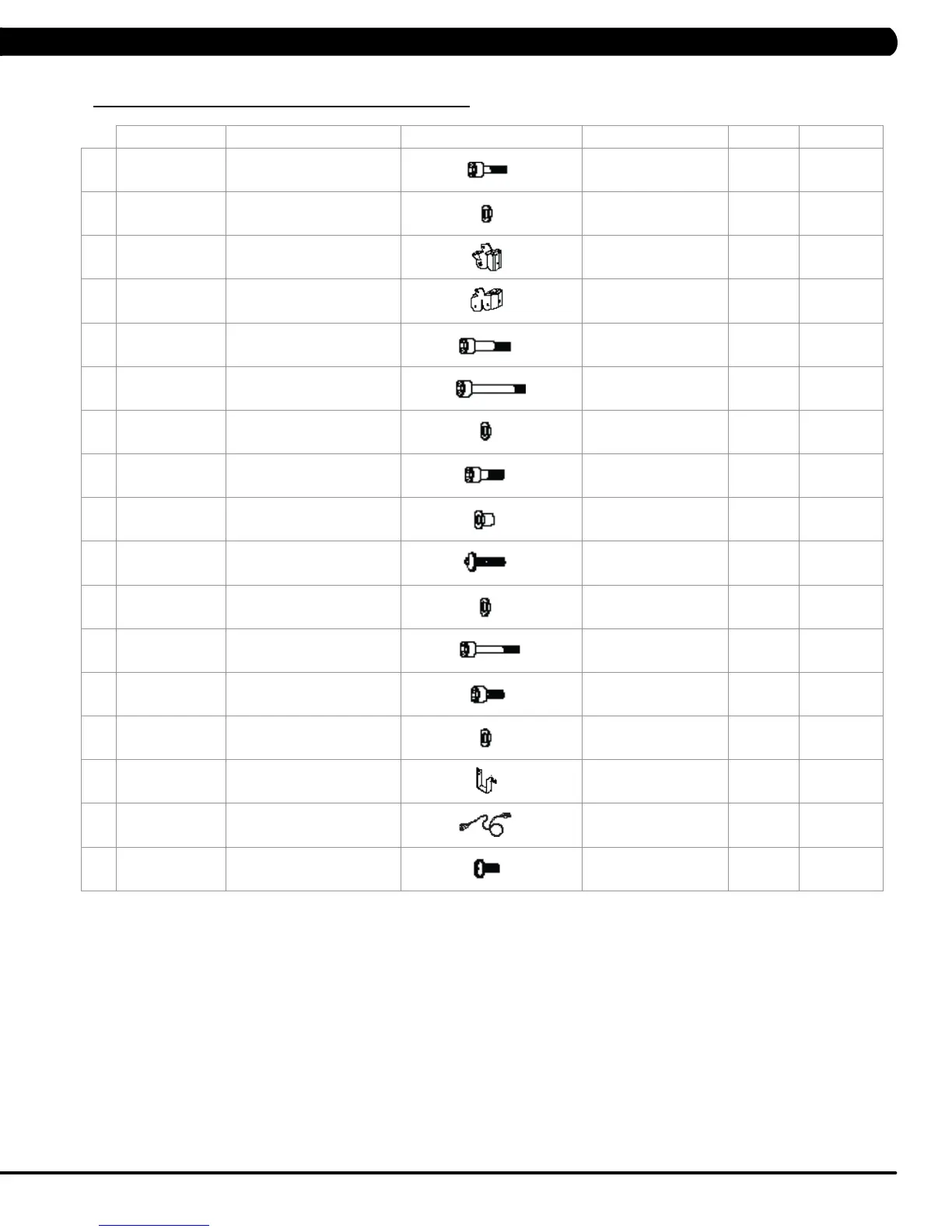

10.2 FASTENERS AND ASSEMBLY TOOLS
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
