9.4 RUNNING DECK CUSHION REPLACEMENT
1) Remove the running deck as outlined in Section 9.3.

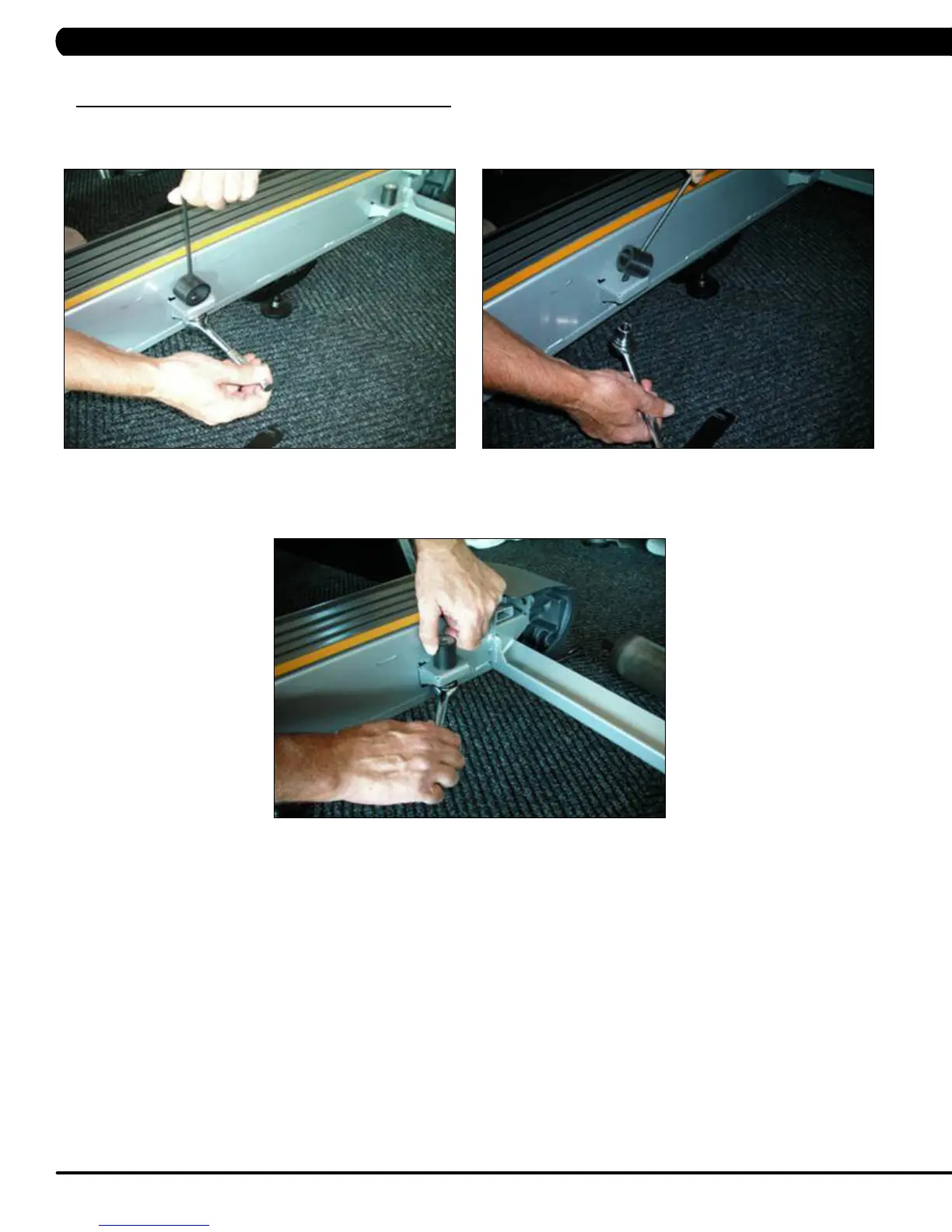

2) Hold the running deck cushion bolt with a 5 mm Allen wrench and loosen the nut with 13 mm socket (Figures A & B).
3) Remove the rear cushion by holding the cushion while removing the 13 mm nut (Figure C).
4) Reverse Steps 1-3 to install new running deck cushions.
5) Tension the running belt as outlined in Section 3.6.
FIGURE A FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
