Both the 2.4GHz and 5 GHz patterns are fairly symmetric in the azimuthal plane (XY), so it makes little to no difference how the AP is rotated
abouttheZ-axiswhenmounting.Thepatternsareasymmetricalintheelevationplane(XZ),withsignicantlymoreantennagaininthearea
directly above the plane formed by the access point (Z+). This results in a coverage pattern that resembles an inverted cone whose axis of

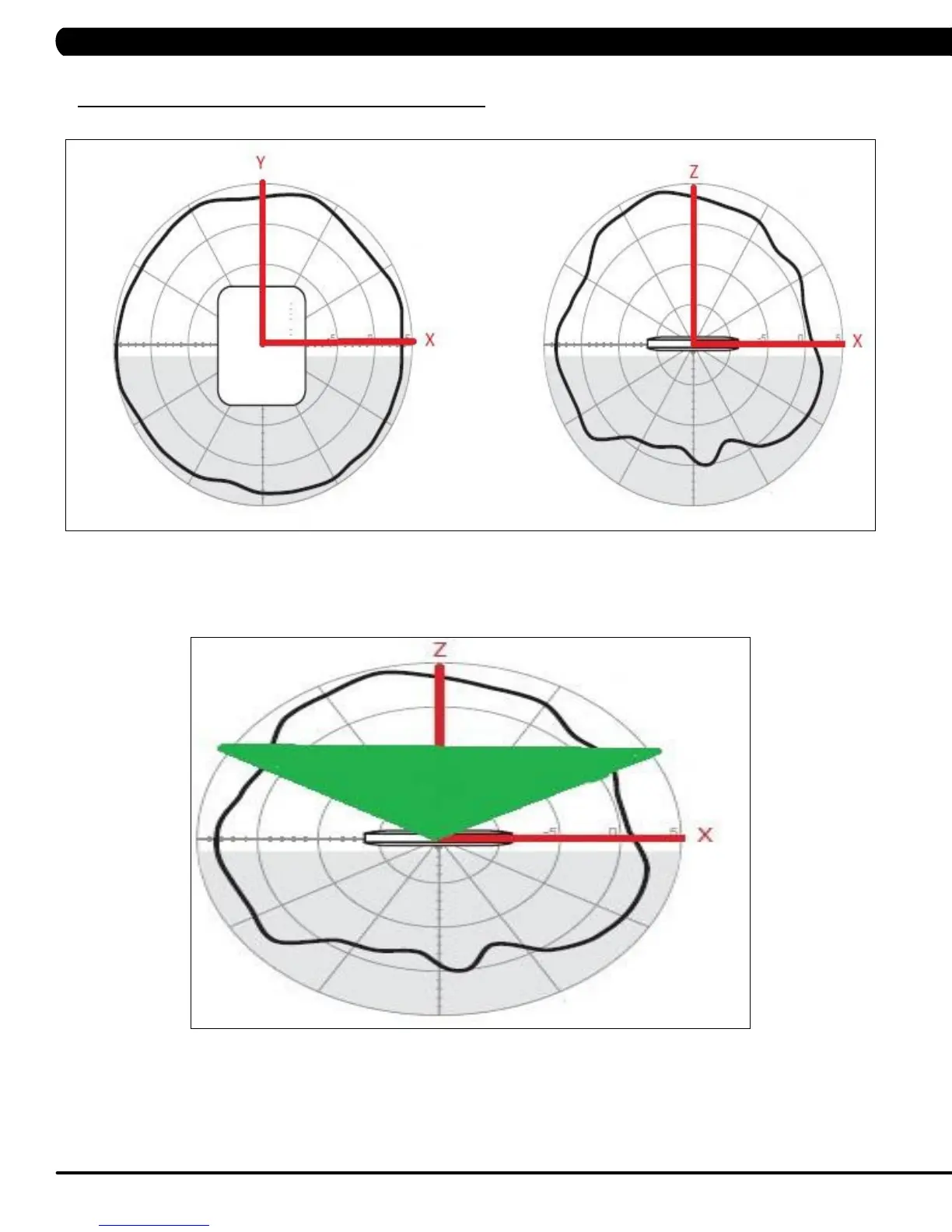

symmetry is normal to the plane of the AP. See the diagram below for a side view of the green coverage zone.
