DEDICATED CIRCUIT AND ELECTRICAL INFO
A “Dedicated Circuit” means that each outlet you plug into should not have anything else running on that same circuit. The
easiest way to verify this is to locate the main circuit breaker box, and turn off the breaker(s) one at a time. Once a breaker has
been turned off, the only thing that should not have power to it are the units in question. No lamps, vending machines, fans,
sound systems, or any other item should lose power when you perform this test.
Non-looped (isolated) neutral/grounding means that each circuit must have an individual neutral/ground connection coming
from it, and terminating at an approved earth ground. You cannot “jumper” a single neutral/ground from one circuit to the next.
ELECTRICAL REQUIREMENTS
For your safety and to ensure good treadmill performance, the ground on this circuit must be non-looped (isolated). Please
refer to NEC article 210-21 and 210-23. Your treadmill is provided with a power cord with a plug listed below and requires the
listed outlet. Any alterations of this power cord could void all warranties of this product.
For units with an integrated TV (like the 7xe and 7xi), the TV power requirements are
included in the unit. An RG6 coaxial cable with ‘F Type’ compression fittings on each
end will need to be connected to the cardio unit and the video source. For units with
an add-on digital TV (5x only), the machine in which the add-on digital TV is connected
to powers the add-on digital TV. Additional power requirements are not needed for the
add-on digital TV. For units with an add-on PCTV (5x only), the TV power requirements
are separate.
110 V UNITS
All Matrix 5x, 7xe and 7xi 110 V treadmills require the use of a 100-125 V, 60 Hz and
a 20 A “Dedicated Circuit”, with a non-looped (isolated) neutral/ground for power. This
outlet should be a NEMA 5-20R and have the same configuration as the plug. No
adapter should be used with this product.
220 V UNITS
All Matrix 5x, 7xe and 7xi 220 V treadmills require the use of a 216-250 V, 50 Hz and
a 20 A “Dedicated Circuit”, with a non-looped (isolated) neutral/ground for power. This
outlet should be a NEMA 6-20R and have the same configuration as the plug. No
adapter should be used with this product.

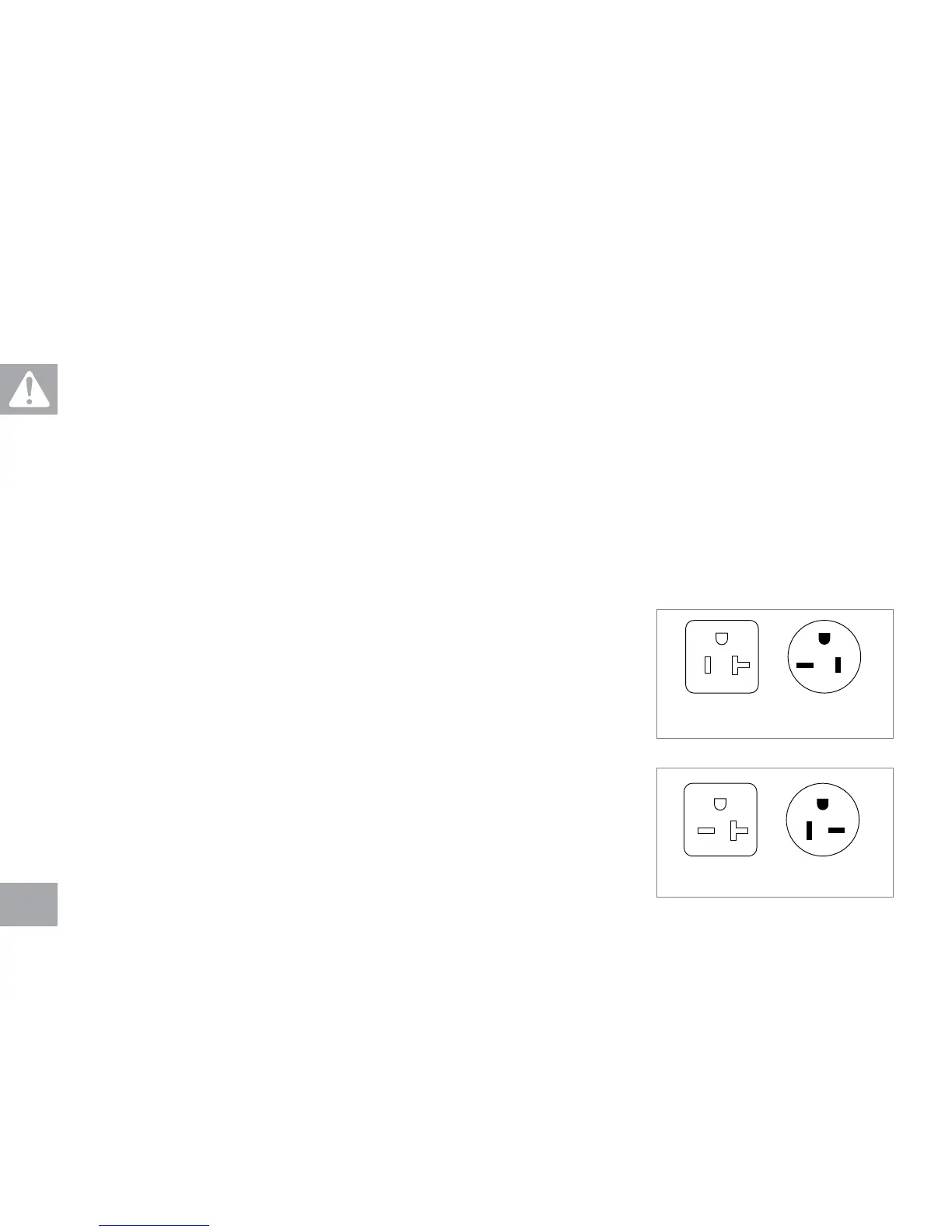

North American power cord plugs shown.
Depending on your country, the plug type may vary.
110 NEMA 5-20R
RECEPTACLE
110 NEMA 5-20P
PLUG
