9.1 CONSOLE REPLACEMENT

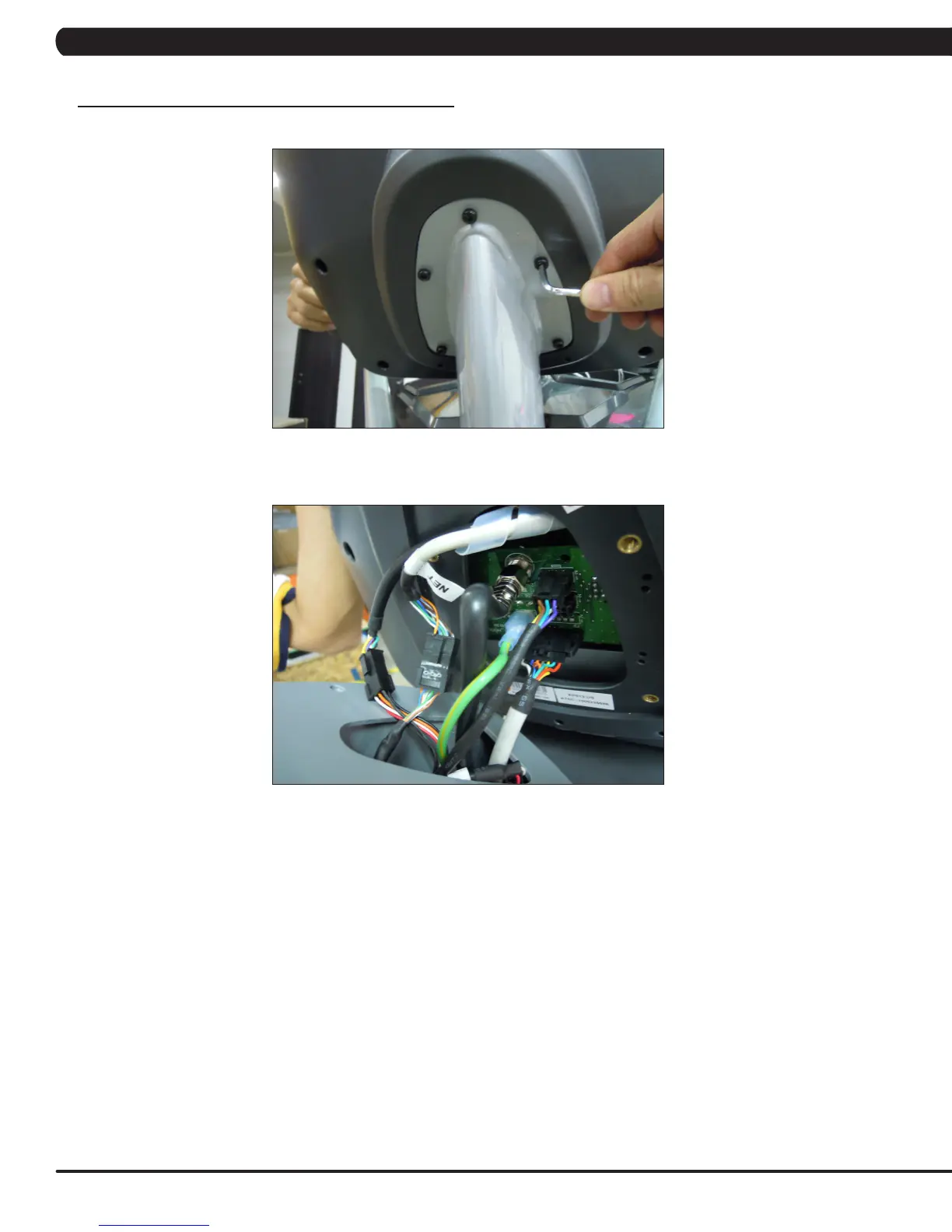

1) Remove the 4 screws holding the console to the frame (Figure A).
2) Disconnect the console cable and HR connections from the defective console and remove the console (Figure B).
3) Reinstall the wire connections to the new console.
4) Carefully push the wires into the console and mast until they are clear of the console / mast connection and attach the console to the mast
using the 4 screws.
5) Test the bike for function as outlined in Section 9.20.
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
