CHAPTER 9: PART REPLACEMENT GUIDE
9.5 CONSOLE KEYPAD / OVERLAY REPLACEMENT
NOTE: The instructions below are similar for console overlays / keypads replacement, but the procedure is the same regardless of where the
overlay / keypad is.

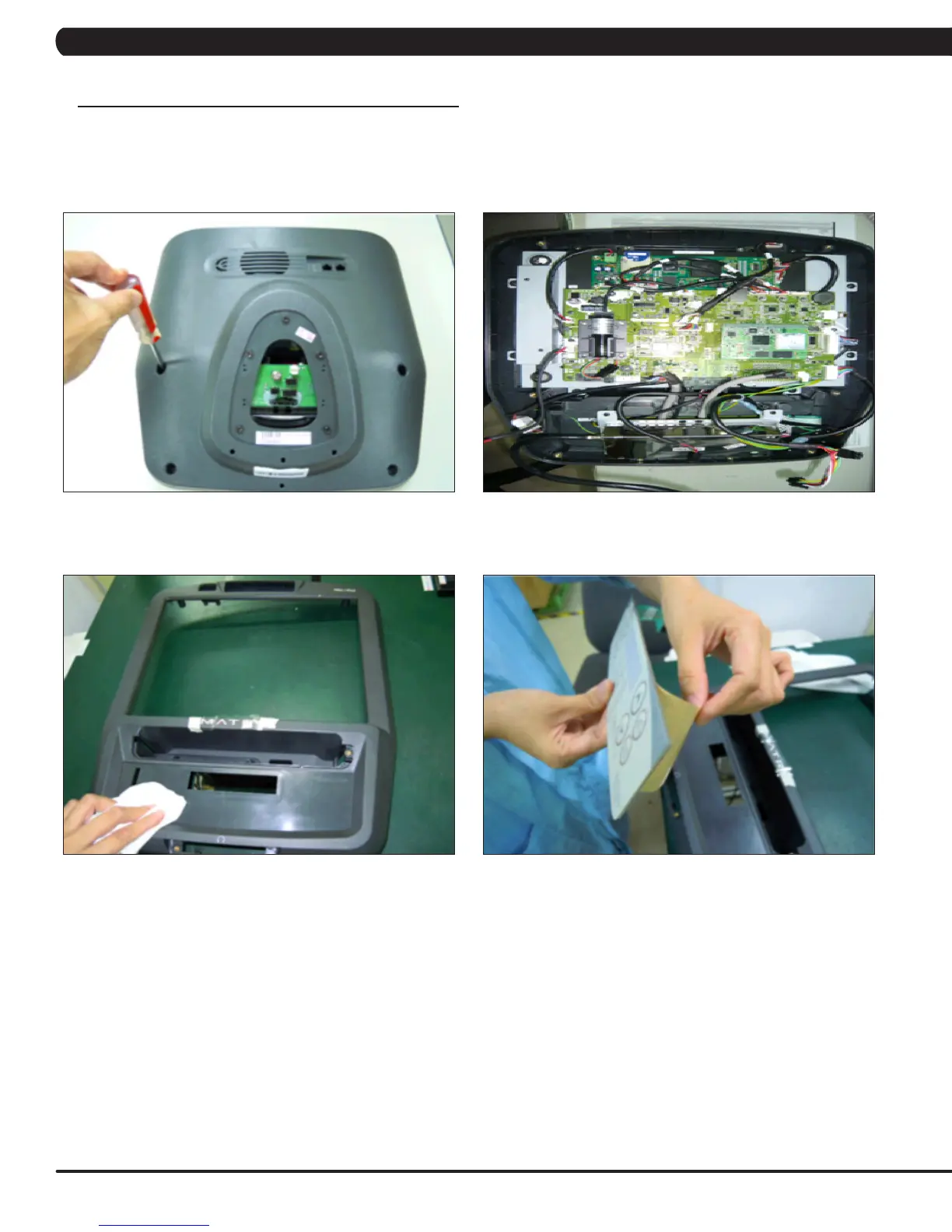

1) Remove the console as outlined in Section 9.1.
2) Remove the back cover of the console (Figure A).
3) Unplug and remove the faulty overlay (Figure B).
4) Clean the console area with alcohol to remove any left over adhesive (Figure C).
5) Peel part of the protective film from the back of the overlay / keypad (Figure D).
FIGURE A
FIGURE B
FIGURE C FIGURE D
