9.8 FRONT SHROUDS REPLACEMENT
1) Remove the 2 screws that hold the silver cover to the frame (Figure A).
2) Remove the silver cover (Figure B).
3) Remove the 2 screws that hold the grey cover to the frame (Figure C).
4) Remove the black cover (Figure D).
5) Reverse Steps 1-4 to install new shrouds.
6) Test the bike for function as outlined in Section 9.20.

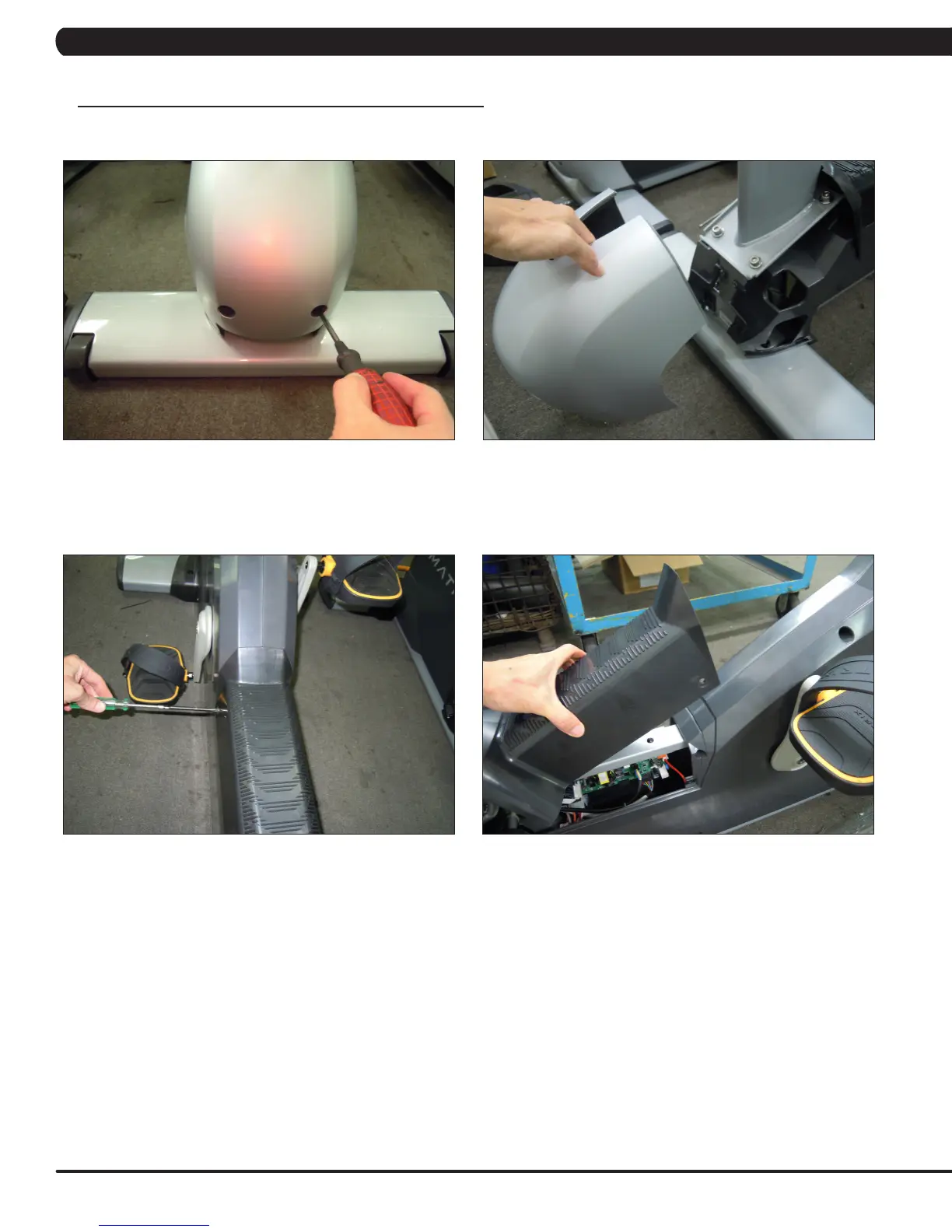

FIGURE A FIGURE B
FIGURE C FIGURE D
