9.7 CRANK AXLE SET REPLACEMENT
1) Remove the bolt that holds the crank to the drive axle set (Figure A).
2) The crank can be removed (Figure B).
3) Reverse Steps 1-2 to install a new crank axle set. NOTE: Torque the bolt removed in Step 1 to 80 N-m / 800 kgf-cm.
4) Test the bike as outlined in Section 9.20.

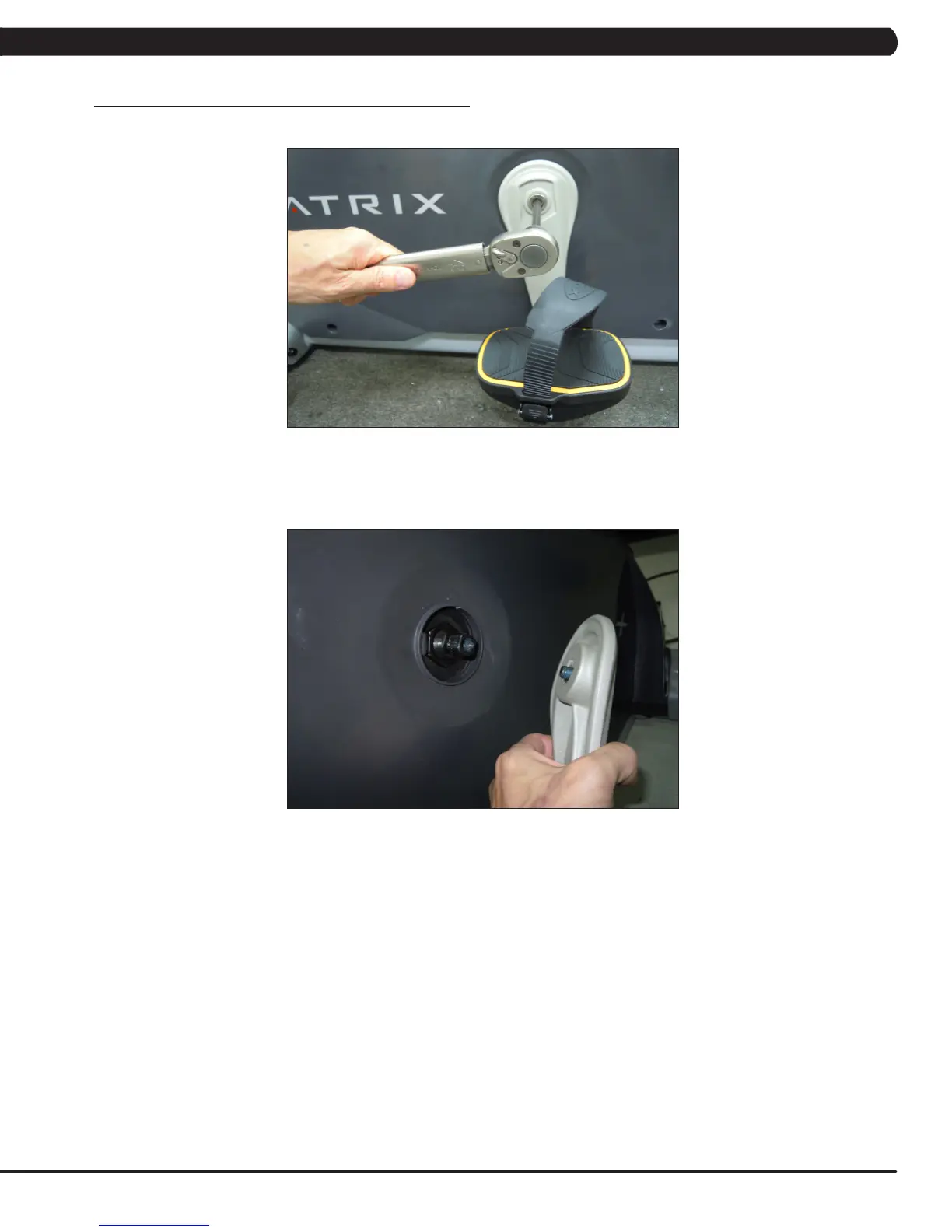

FIGURE A
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE B
