Matrix VS-S22 User Manual

15
ASSEMBLY
STEP 2 | LEFT ARM TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
21 Axle Locking Sleeve 1
22 M5 X 10L SHC 3
23 M5 Flat Washer 3
24 Cap 1
25 M5 X 16L SHC 1
PART 4: LOWER LEFT ARM ASSEMBLY

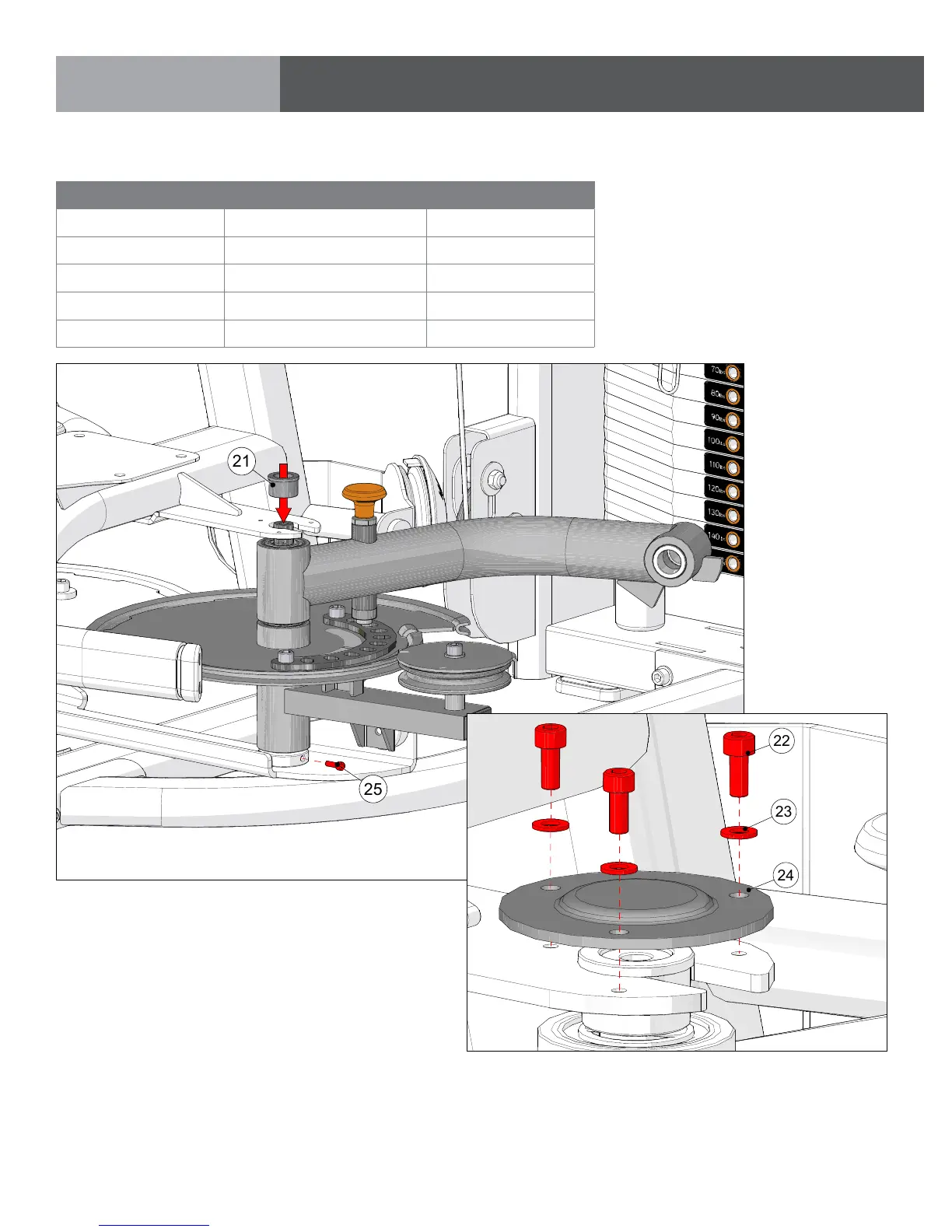

Press item 21 in place to lock the assembly. Then cap assembly with cover as shown. Torque to : 7 N-m/5 ft-lbs.
25
21
23
24
22
Tighten to 7 N-m/5 ft-lbs. to lock axle in place
