Matrix VS-S22 - Part 6 Upper Arm Assembly

17
ASSEMBLY
STEP 1 | UPPER ARMS TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
PART 6: UPPER ARM ASSEMBLY
30
34
2
32
31
33

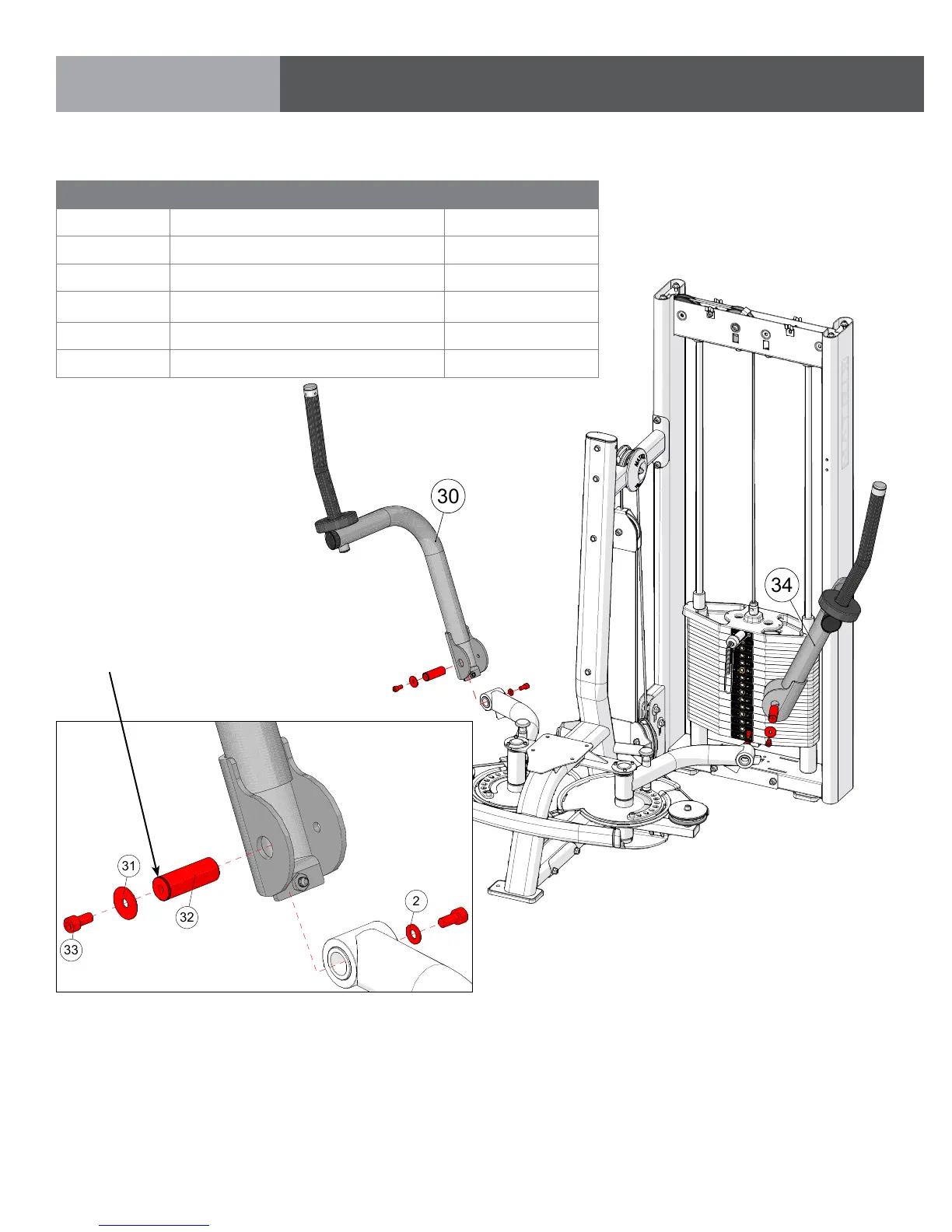

Assemble upper arms as shown.
Tighten to 77 N-m/57 ft-lbs.
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
30 Upper Right Arm Assembly 1
31 M10 Flat Washer (35 mm Diameter) 2
32
Axle (Ø25 X 69.4L)
2
33 M10 X 15L SHC 4
34 Upper Left Arm Assembly 1
Locate knurled end of axles and large
washers as shown
