20
ASSEMBLY

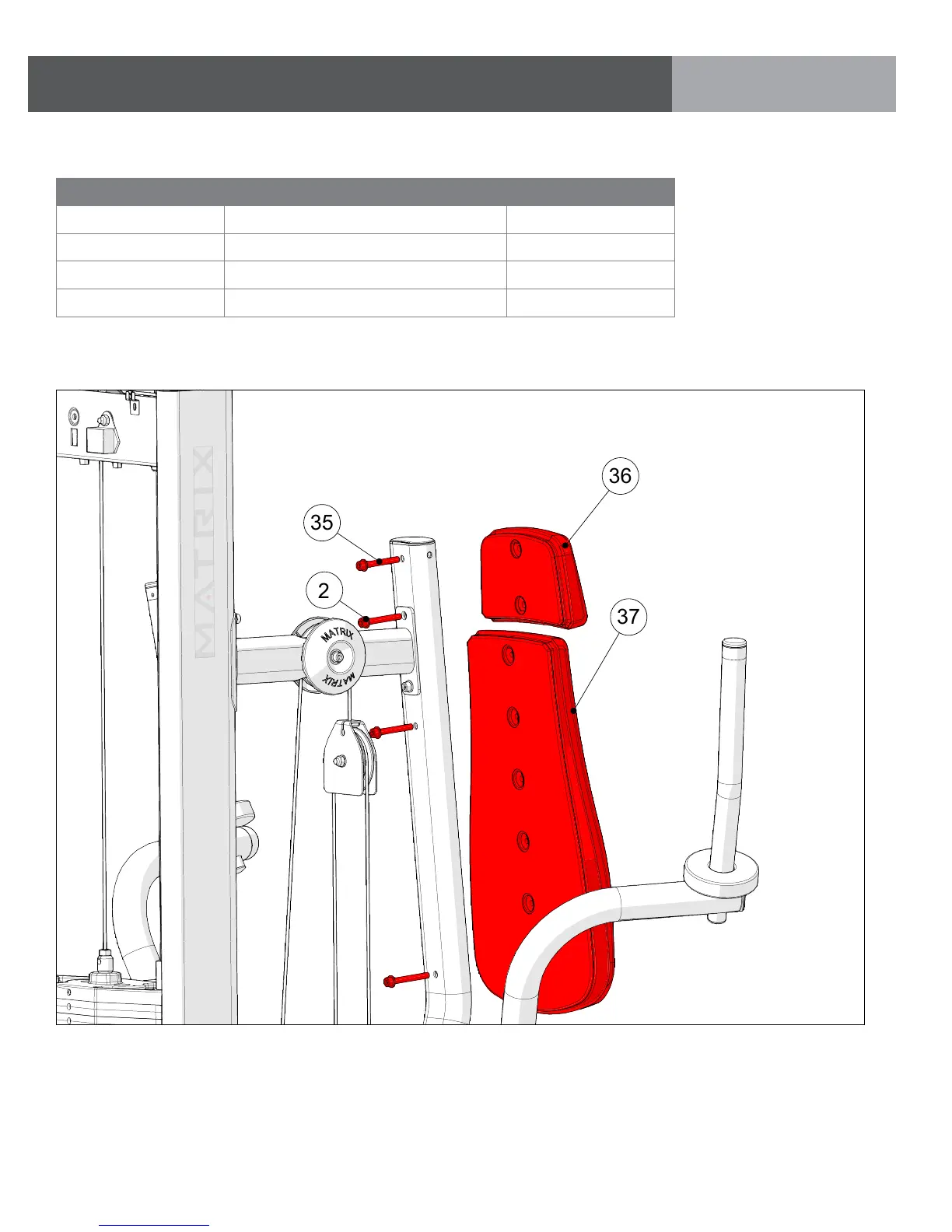

STEP 1 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
35 M10 X 75L SHC 4
36 Head Pad 1
37 Back Pad 1
37
36
2
35
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
PART 7: PAD ASSEMBLY
