STEP 2 | PAD ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
38 Pad 1
39 M10 X 20L Hex Bolt 4
ASSEMBLY

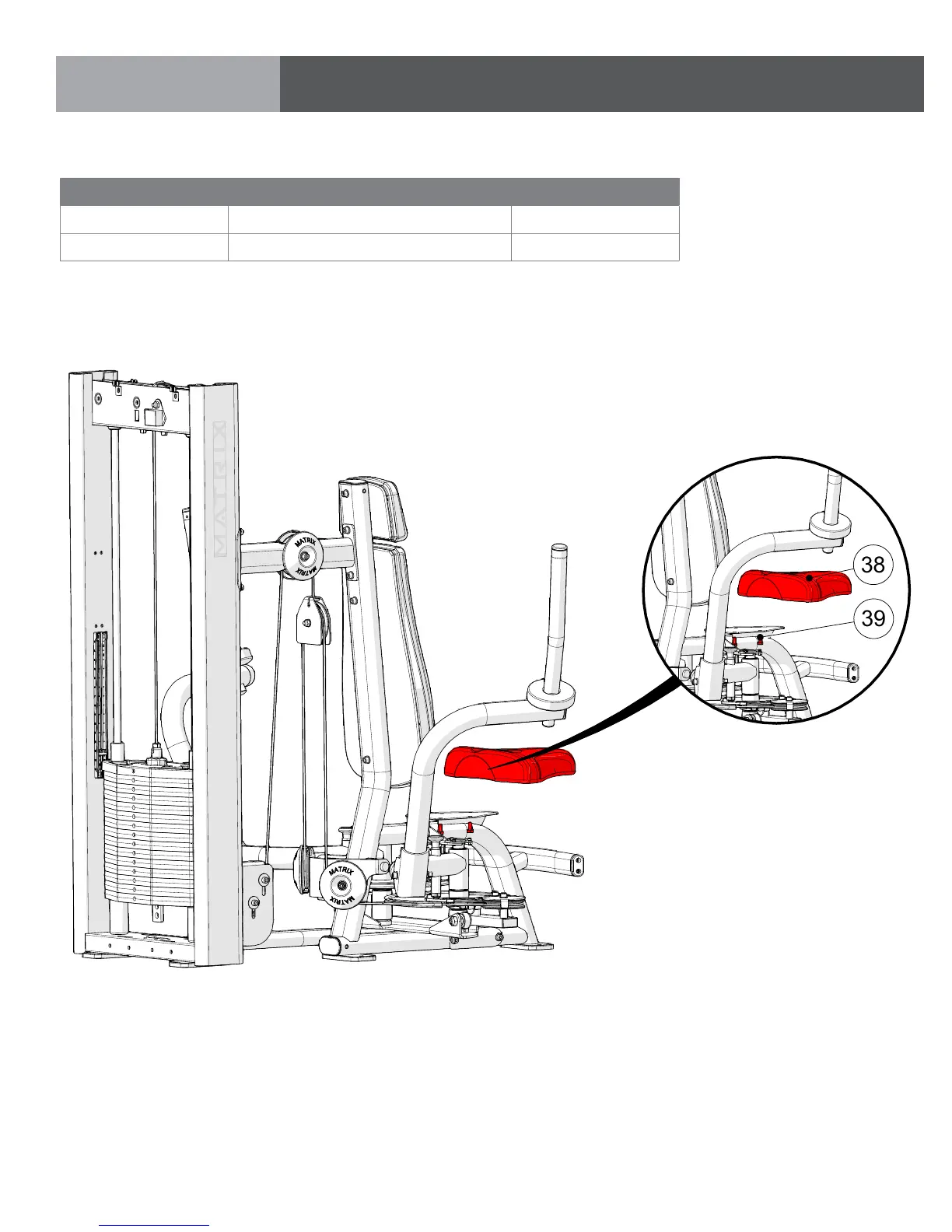

PART 7: PAD ASSEMBLY
39
38
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
