27
ASSEMBLY
STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 9: PREMIUM KIT ASSEMBLY
Machine Sensor Locations (Sensor “A” = Top, “B” = Middle, “C” = Bottom)
Chest Press A2, B7, C13
Shoulder Press A1, B4, C13
Leg Extension A1, B7, C13
Seated Leg Curl A6, B10, C13
Leg Press A6, B10, C13
Lat Pulldown A1, B3, C13
Triceps Press A5, B8, C13
Seated Row A1, B4, C13
Bicep Curl A6, B8, C13
Hip Add/Abduction A7, B11, C13
Pec Fly/Rear Delt A7,B 9, C13
Abdominal A8, B10, C13
Back Extension A6, B8, C13
Glute A2, B7, C13

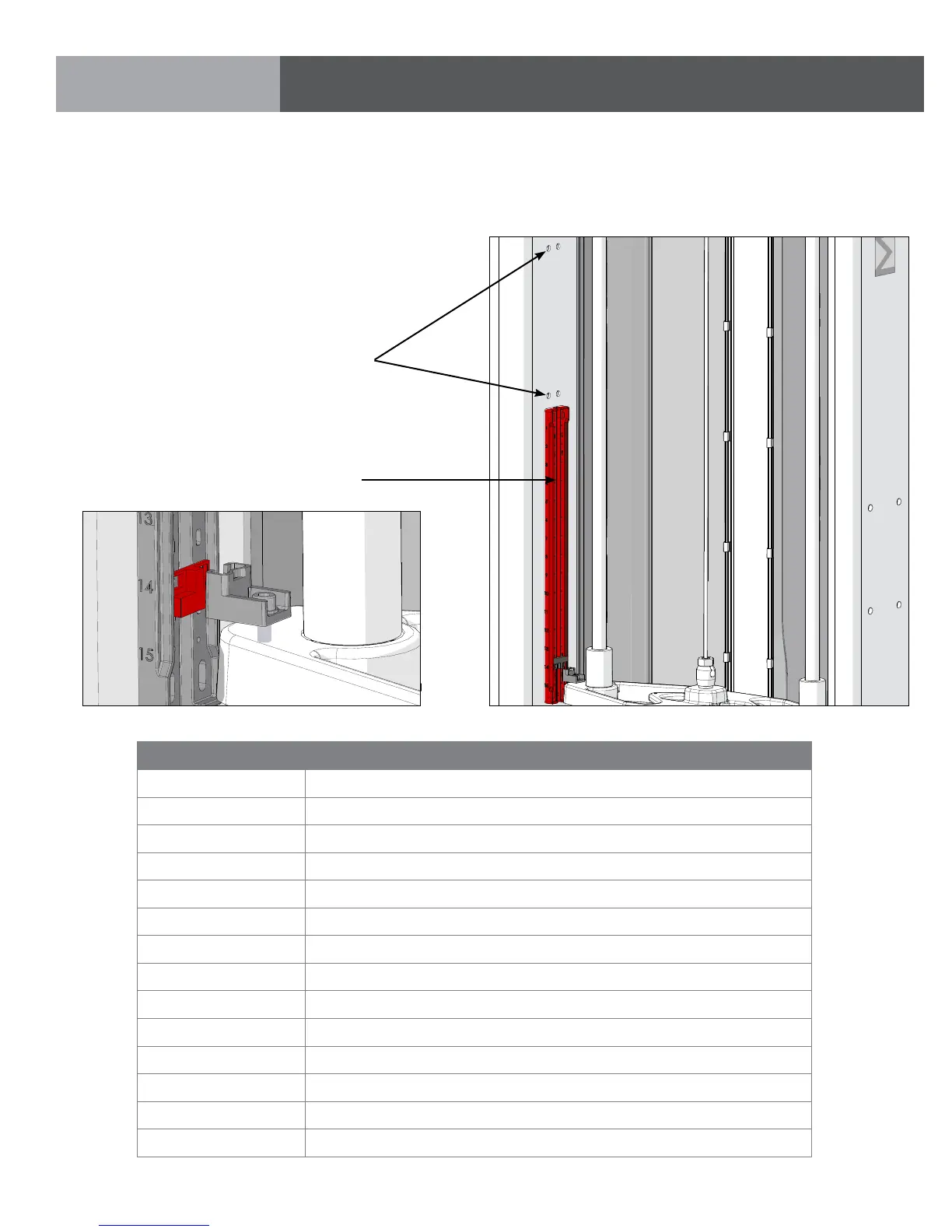

Rep Counter - Sensors
1. Assemble Rep Counter sensor base using (4)
screws included with the kit.
2. Assemble (3) sensors located per machine
chart shown below.
Route wires in groove
Thread zip ties through
holes to secure cables
To Next Page
