14
ASSEMBLY

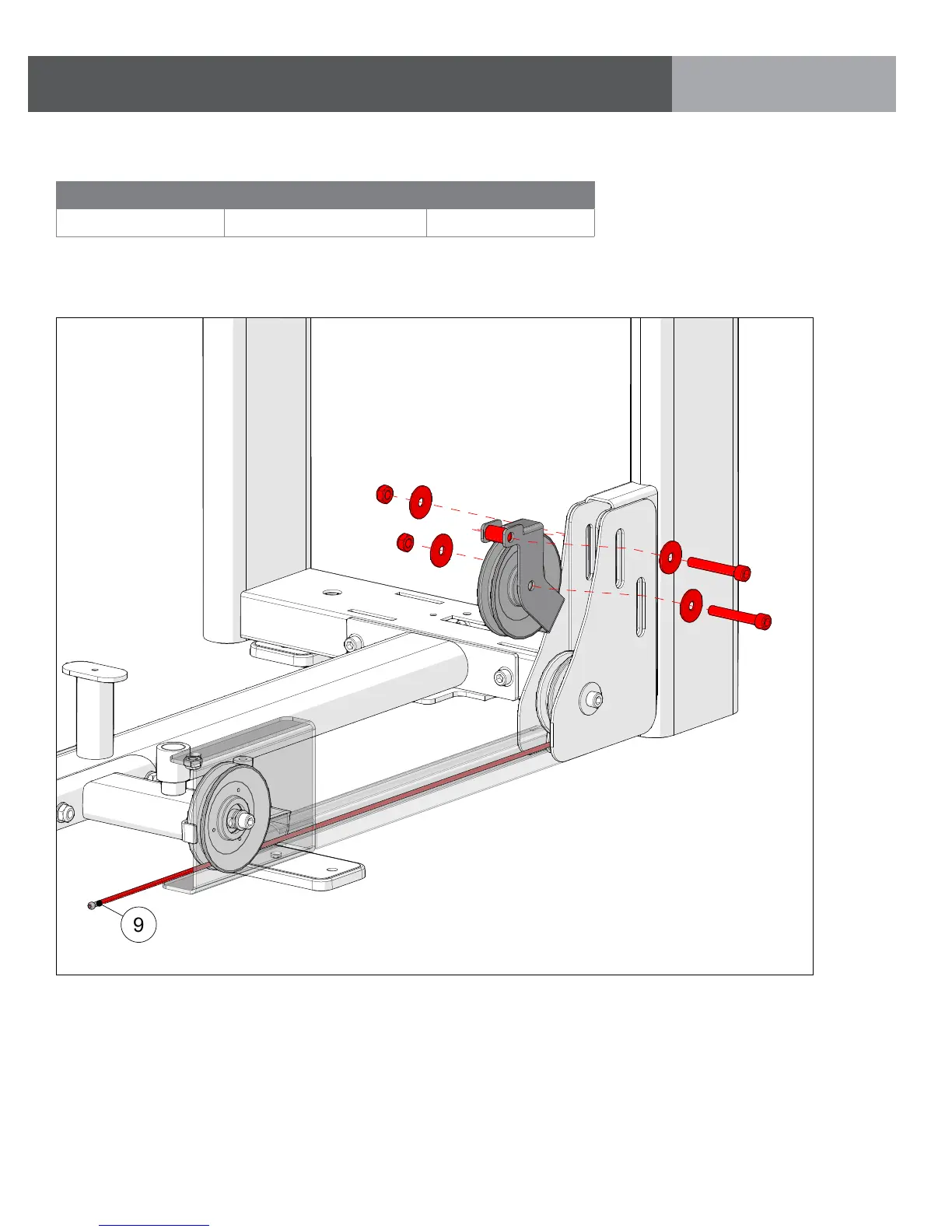

STEP 3 | ADJUSTABLE PULLEY ASSEMBLY INSTRUCTION & NOTES
PART 3: STACK & USER FRAME ASSEMBLY
ID DESCRIPTION QUANTITY
9 Cable 1
Route cable through frame tube and reassemble pulley. Replace the hardware from page 11 as shown,
being sure to locate the nylock nuts inboard.
Torque all M10 hardware from pages 10 - 14 to: 77 N-m/57 ft-lbs
