Matrix VS-S74 User Manual

24
24
25
23
22
ID DESCRIPTION QUANTITY
22 M5 X 12L SHC 3
23 M5 Flat Washer 3
24 Cap 1
25 Threaded Sleeve 1

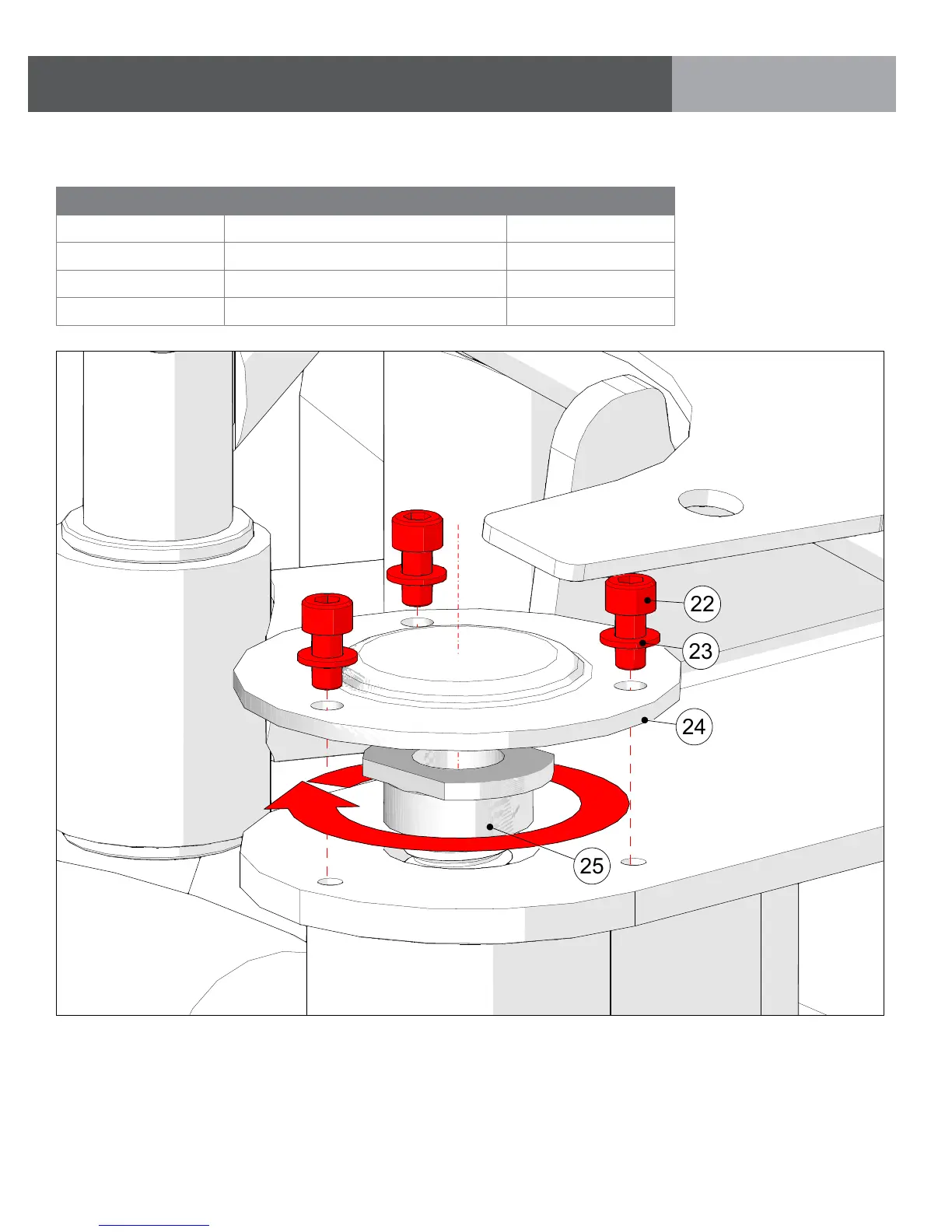

PART 7: LEFT ARM ASSEMBLY
STEP 2 | LEFT ARM TO FRAME ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY
Lock assembly in place by threading on item 22. Then cap assembly with
cover as shown. Torque to : 7 N-m/5 ft-lbs.
