25
4
36
26
ASSEMBLY

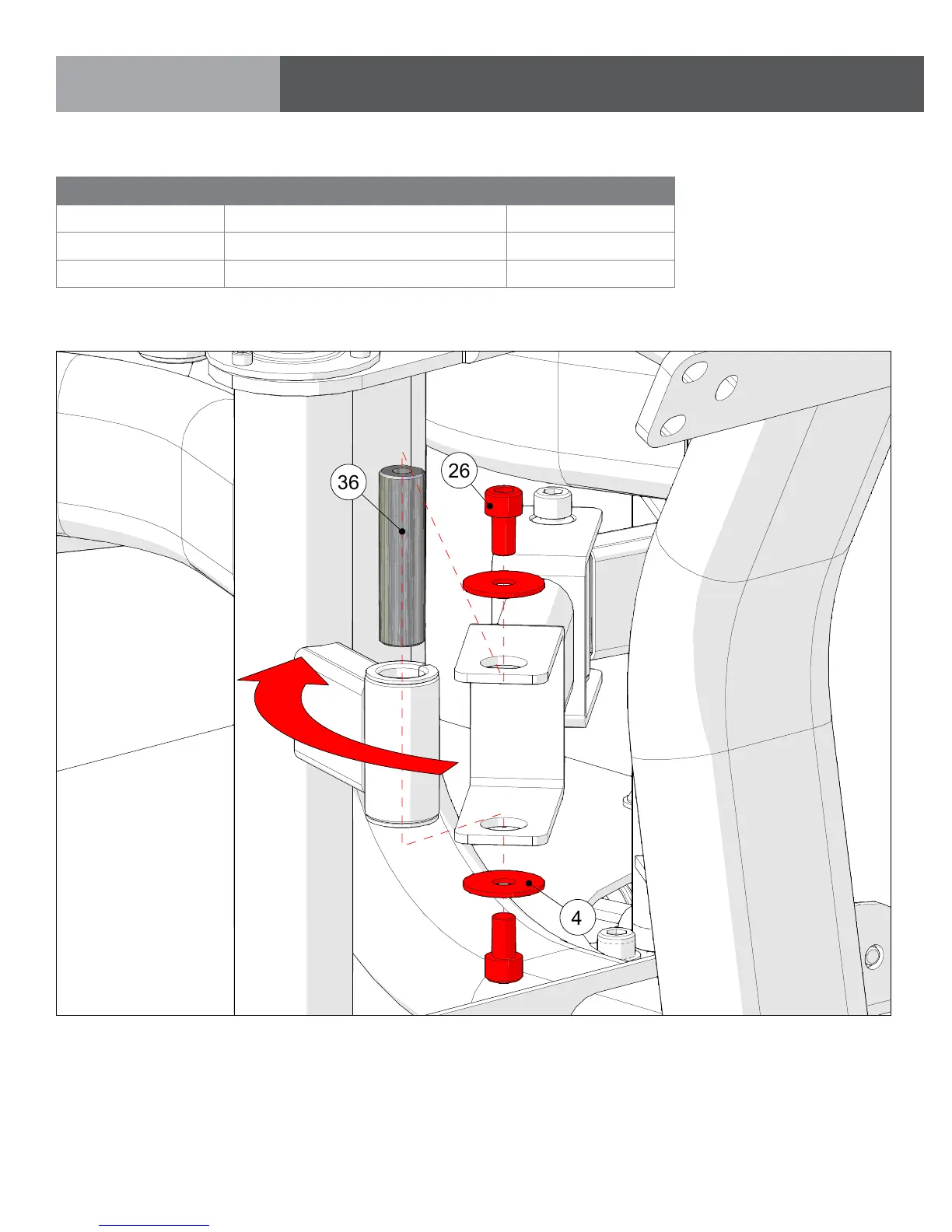

STEP 3 | LINKAGE TO LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 7: LEFT ARM ASSEMBLY
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 2
26 M10 X 15L SHC 2
36 Axle 1
Assemble the axle from the top of the linkage, and locate the two “D”
features to each other. Torque to 77 N-m/57 ft-lbs.
