STEP 2 | BACK PAD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 2
41 Back Pad 1
42 M10 X 75L SHC 2
ASSEMBLY

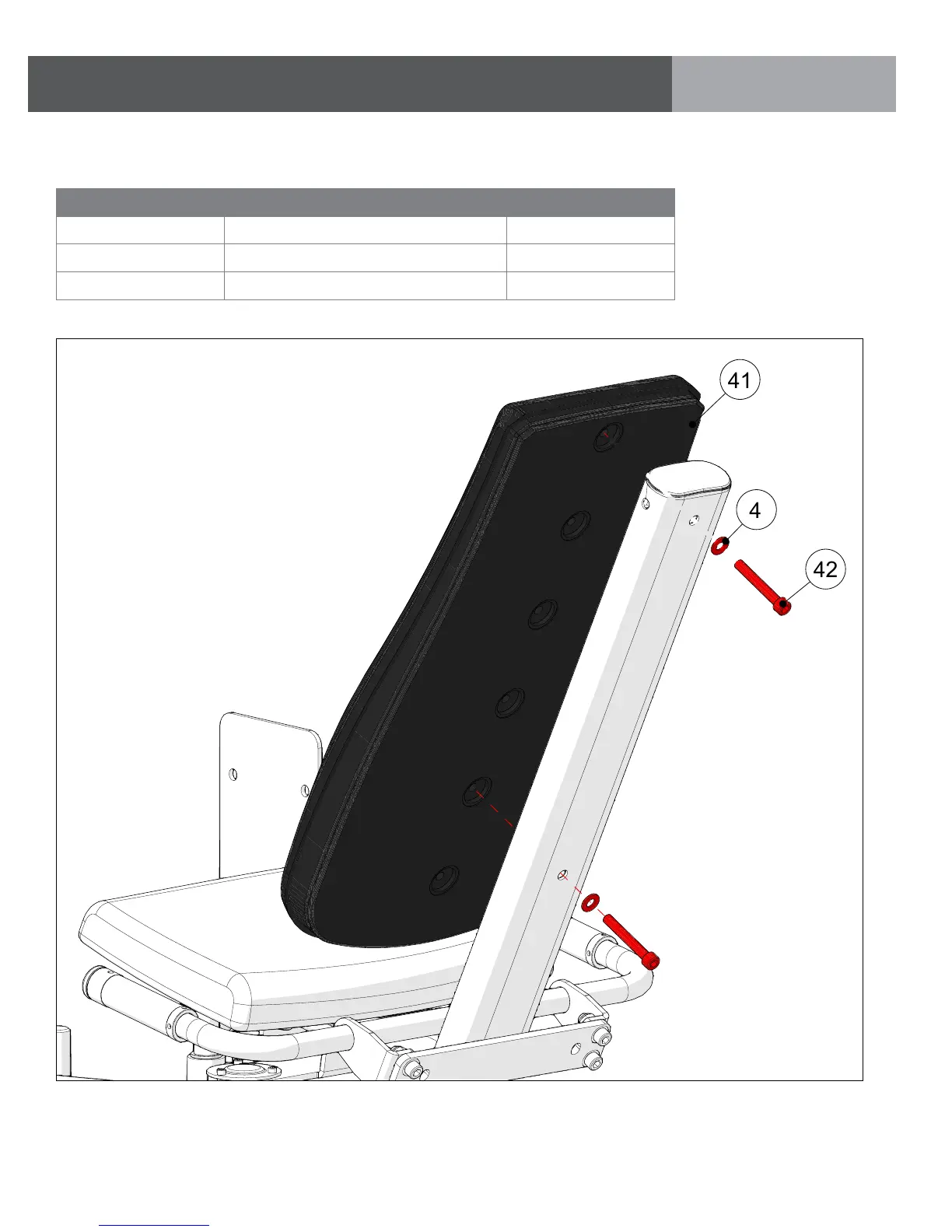

PART 9: PAD ASSEMBLY
41
4
42
Tighten M10 bolts to 57 N-m/29 ft-lbs.
