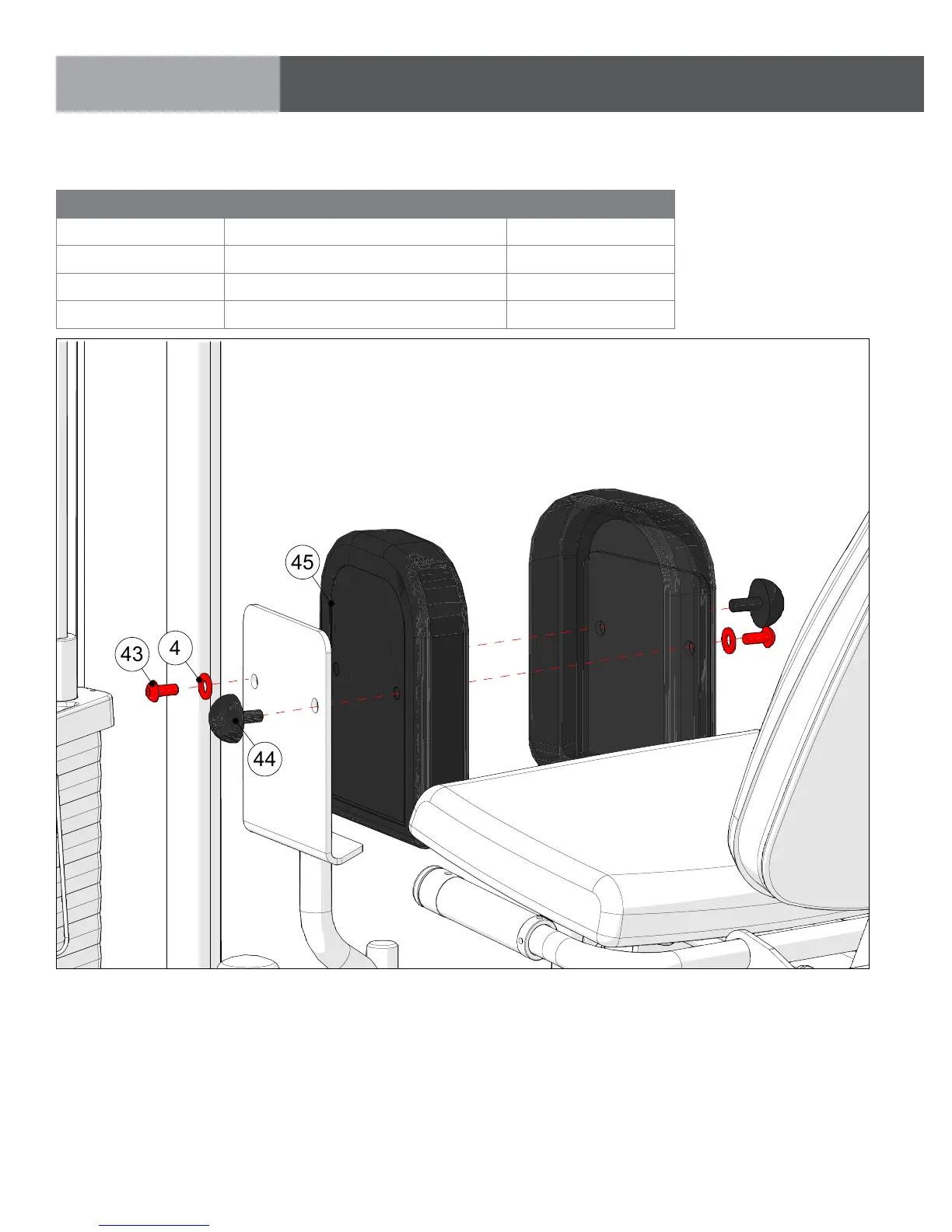

STEP 3 | THIGH PAD ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY
PART 9: PAD ASSEMBLY
45
4
43
44
ID DESCRIPTION QUANTITY
4 M10 Flat Washer 2
43 M10 X 15L BHC 2
44 Rubber Bumper 2
45 Thigh Pad 2
Install the pad as shown, locating the bumpers on opposite positions of one
another: Tighten M10 bolts to 57 N-m/29 ft-lbs.
