Connecting MXO2 LE to your computer
Connecting MXO2 LE to your computer
Connect MXO2 LE to your computer using the Matrox PCIe cable. For MXO2 LE to
be detected on a desktop computer, power must be supplied to MXO2 LE, and it must
be connected to your system before starting your computer.
¡ Important Do not disconnect the Matrox PCIe cable from the adapter, or MXO2
LE, when your computer is running. To safely remove the Matrox PCIe host
Expresscard/34 adapter, see “Installing and removing your PCIe host ExpressCard/34
adapter (for laptops)” on page 2.
OR
A
A

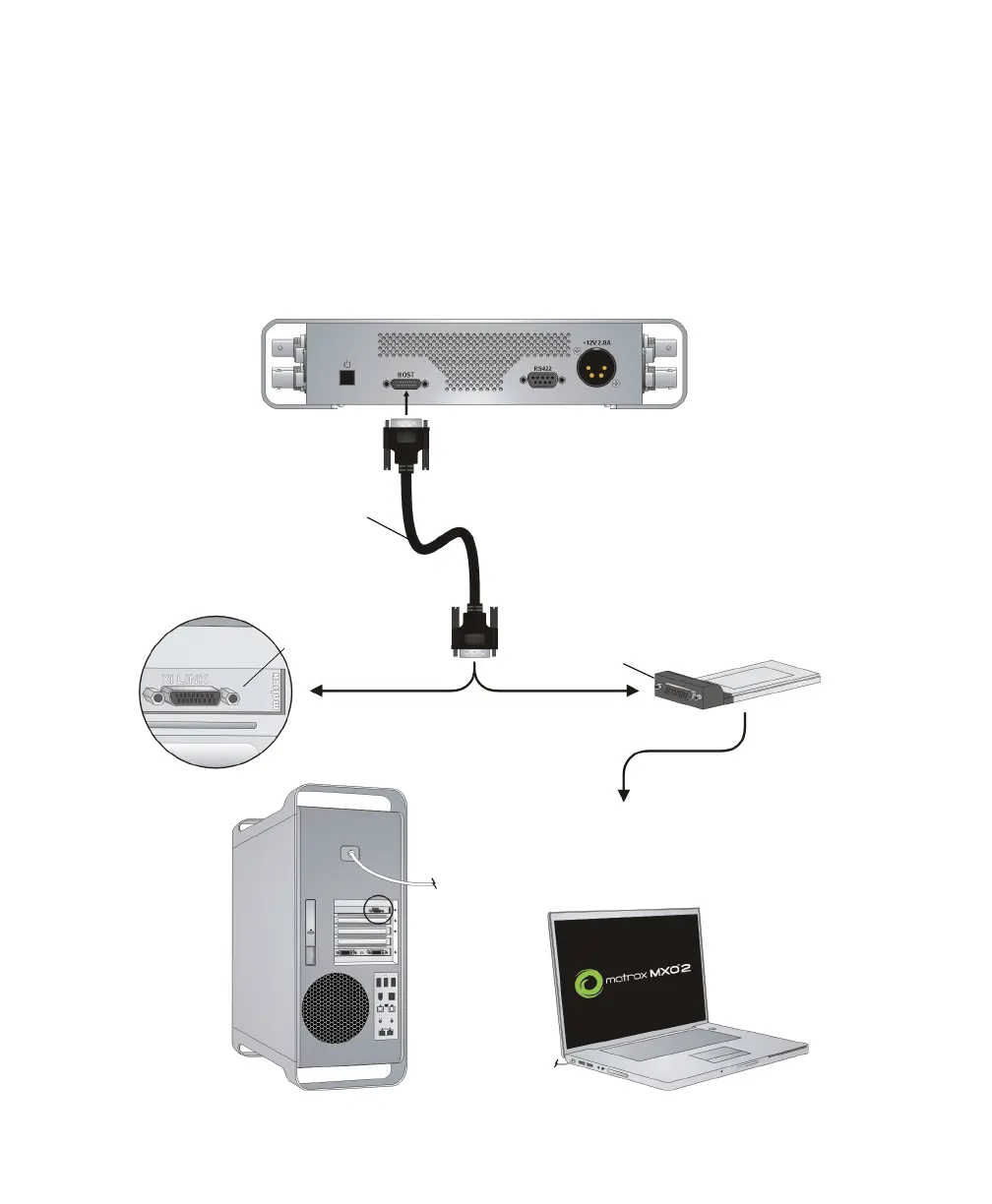

Matrox PCIe host
ExpressCard/34
adapter
Matrox PCIe
host adapter
PCIe cable
²Caution Ensure proper orientation
when connecting the PCIe cable to avoid
damaging the cable or host connector.
To your laptop’s ExpressCard/34
slot (see “Installing and removing
your PCIe host ExpressCard/34
adapter (for laptops)” on page 2).
MXO2 LE
(side view)
