Typical MXO2 LE digital video connections
Typical MXO2 LE digital video connections

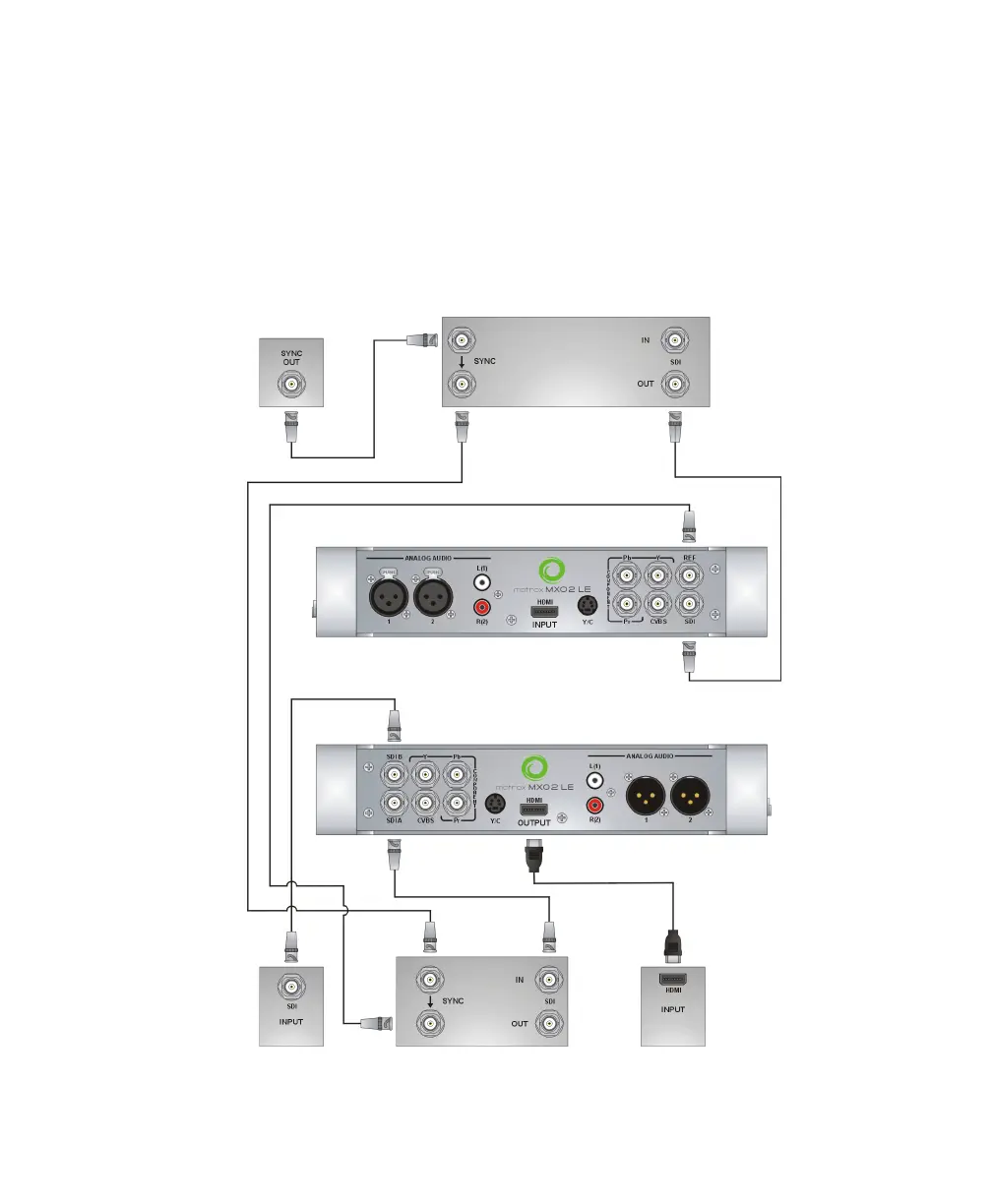

In the following illustration, we’ve connected a video monitor to view the signal that
will be recorded, and separate source and record decks. You may, however, use the
same deck as both your source and record device by making the input and output
connections to a single deck. We’re using SDI connectors for video and audio, an SDI
connector for video monitoring, and we’re monitoring the audio on a surround sound
speaker system through an HDMI connector. The video is genlocked using a tri-level
sync generator.
Recorder (Deck 2)Video monitor Surround sound
speaker system
Source
(Deck 1)
Tri-level
sync
generator
MXO2 LE Outputs
MXO2 LE Inputs
