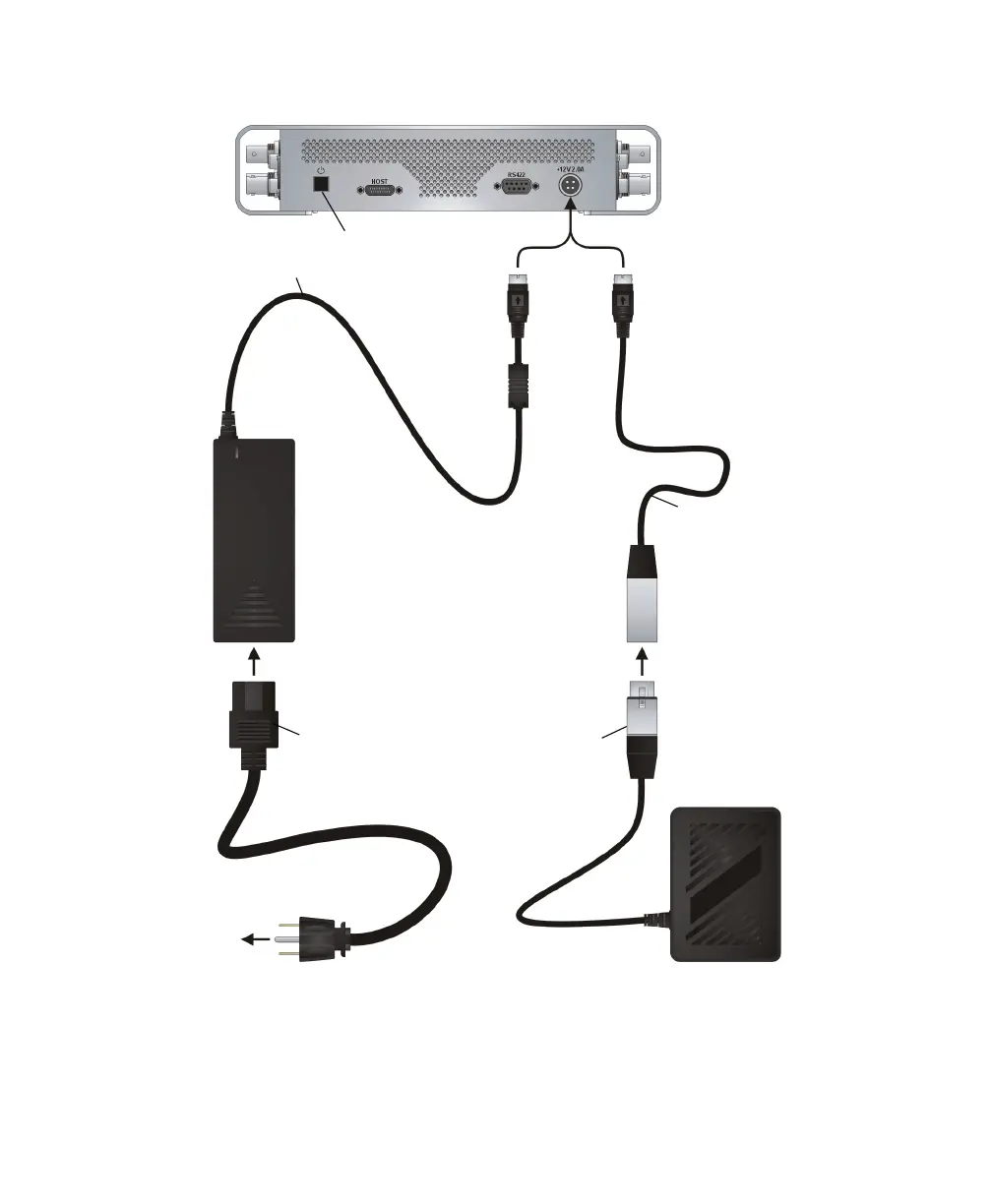

Powering Matrox MXO2
Matrox MXO2
OR
External
power supply
Female 4-pin
XLR cable
Battery on a
universal battery
adapter
Matrox battery
power cable
To A C
outlet
IEC-C13
power cord
Power button
²Caution When
disconnecting the power
supply from MXO2,
make sure that you slide
back the casing on the
connector to release the
locking mechanism.
MXO2
(side view)
