52 Appendix B: Technical information

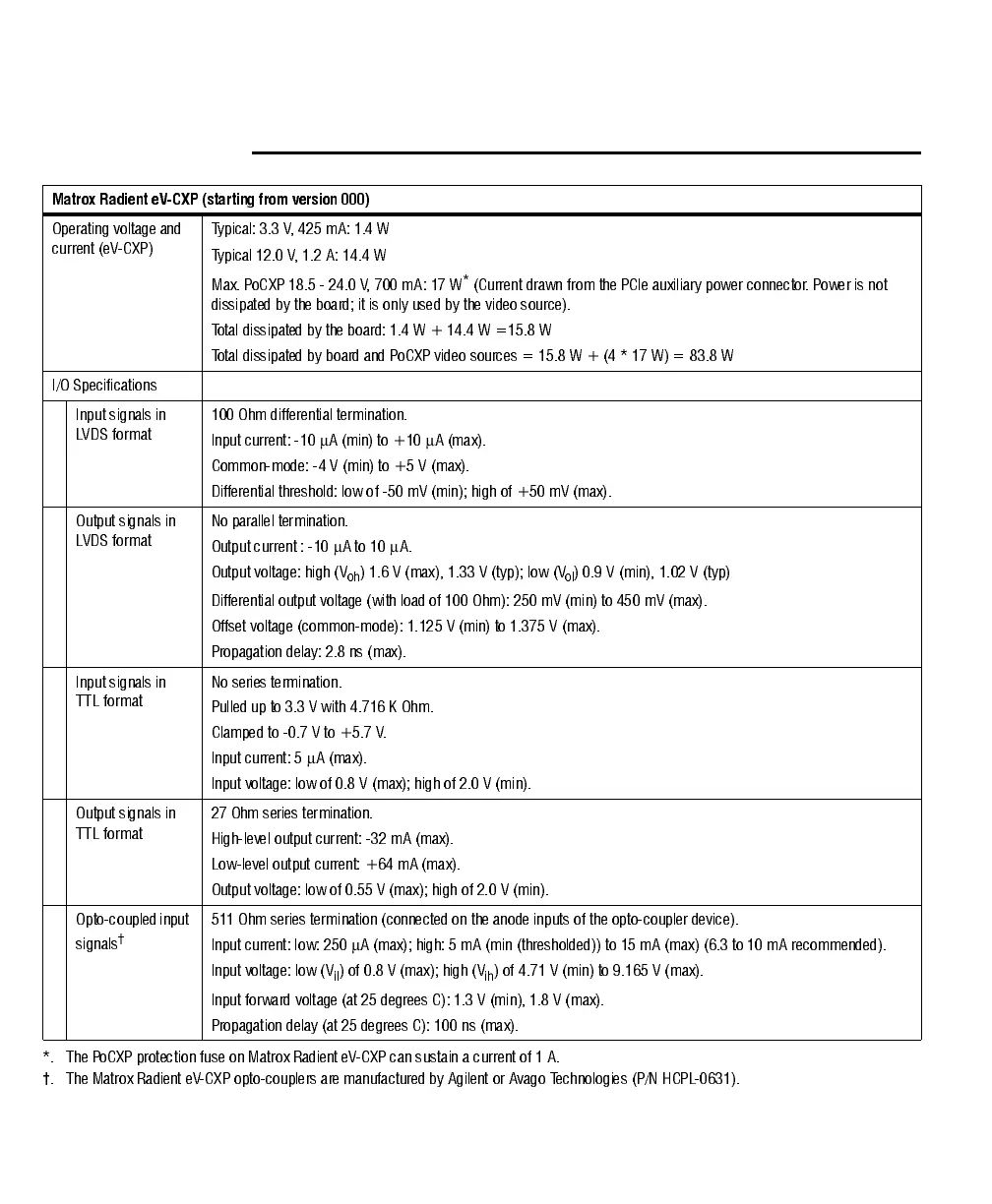

Electrical specifications
Matrox Radient eV-CXP (starting from version 000)
Operating voltage and
current (eV-CXP )
Typical: 3.3 V, 425 mA: 1.4 W
Typical 12.0 V, 1.2 A: 14.4 W
Max. PoCXP 18.5 - 24.0 V, 700 mA: 17 W
*
(Current drawn from the PCIe auxiliary power connector. Power is not
dissipated by the board; it is only used by the video source).
Total dissipated by the board: 1.4 W + 14.4 W =15.8 W
Total dissipated by board and PoCXP video sources = 15.8 W + (4 * 17 W) = 83.8 W
I/O Specifications
Input signals in
LVDS format
100 Ohm differential termination.
Input current: -10
μ A (min) to +10 μ A (max).
Common-mode: -4 V (min) to +5 V (max).
Differential threshold: l ow of -50 mV (min); high of +50 mV (max).
Output signals in
LVDS format
No parallel termination.
Output current : -10
μ A to 10 μ A.
Output voltage: high (V
oh
) 1.6 V (max), 1.33 V (typ); low (V
ol
) 0.9 V (min), 1.02 V (typ)
Differential output voltage (with load of 100 Ohm): 250 mV (min) to 450 mV (max).
Offset voltage (co mmon-mode): 1. 12 5 V (min) to 1.37 5 V (max).
Propagation delay: 2.8 ns (max).
Input signals in
TTL format
No series terminat ion.
Pulled up to 3.3 V with 4.716 K Ohm.
Clamped to -0.7 V to +5.7 V.
Input current: 5
μ A (max).
Input voltage: low of 0.8 V (max); high of 2.0 V (min).
Output signals in
TTL format
27 Ohm series termination.
High-level output current: -32 mA (max).
Low-level output current: + 64 mA (max).
Output voltage: low of 0.55 V (max ); high of 2. 0 V (min).
Opto-coupled inp ut
signals
†
511 Ohm series termination (connected on the anode inputs of the opto-coupler device).
Input current: low: 250
μ A (max); high: 5 mA (min (thresholded)) to 15 mA (max) (6.3 to 10 mA recommended).
Input voltage: low (V
il
) of 0.8 V (max); high (V
ih
) of 4.71 V (min) to 9.165 V (max).
Input forward voltage (at 25 degrees C): 1.3 V (min), 1.8 V (max).
Propagation delay (at 25 degrees C): 100 ns (max).
*. The PoCXP protection fuse on Matrox Radient eV-CXP can sustain a current of 1 A.
†. The Matrox Radient eV-CX P opto-couplers are manufactured by Agilent or Avago Technologies (P/N HCPL-063 1 ).
