2.06
General Information - Safety
TI008G0001

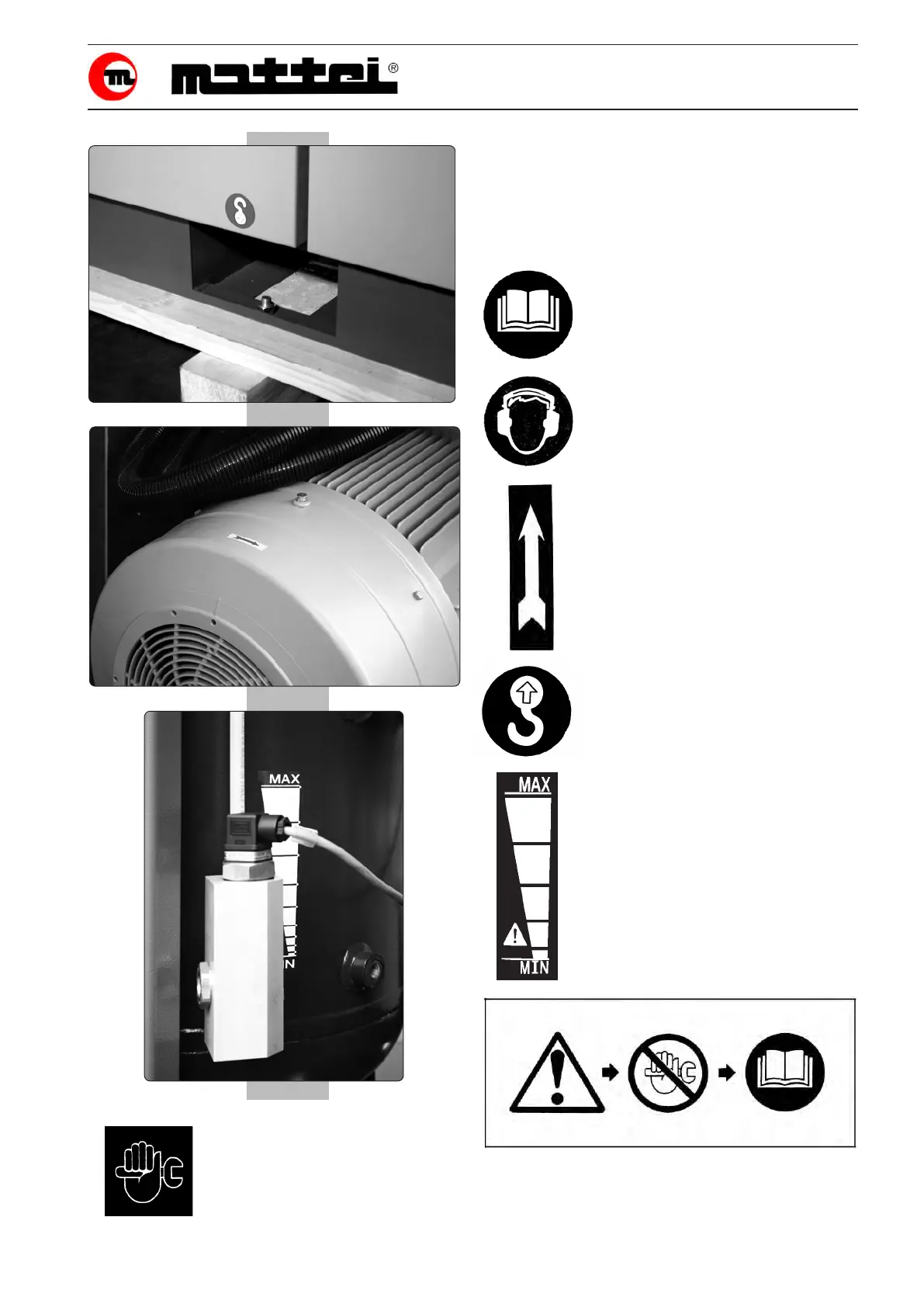

Description of Pictograms
Obligation pictograms
These are circular signs on a blue background, and
the symbol is white.
Read the instructions manual before
carrying out any operation on the
machine.
Use individual protective means
against noise.
Indication pictograms
These signs may vary in shape and
they give useful information.
Lifting point.
Direction of rotation.
003908
909
113114
115
116
Oil level
209.2
Combination of pictograms
The above shown combination of pictograms
means:
Warning ! Please refer to the Instruction Manual
before starting any activity.
118
Possibility to carry out jobs.
117
