Description of the Machine
Hardware Characteristics
- Microprocessor-based technology
- Ergonomic control panel with rapid access keys to main menus
- Access keys to menus, start/stop and reset keys with Led-
controlled indications
- “LCD” display – text with blue leds - 8 lines - 22 types
- 24 V AC 50/60Hz Power Supply
- 24 V dc Digital Inputs
- Digital output with clean contacts up to 230Vac and until 24Vdc
- Analogue output 0-10 Vdc
- Pressure analog signals (4-20mA)
- Temperature analog signals (NPT)
- Interfaces:
❏ RS485 to communicate with other “MAESTRO xs” devices
❏ RS485 (optional) to communicate with supervising PC and lan
Software Characteristics:
- Easy use based on a menu structure
- Updating possibility
- Display of :
❏ Analogue data:
- Line pressure, pressure in the chamber, oil temperature, output
air temperature
❏ General data:
- Alarms, operating messages, machine status, maximum and
minimum pressure, last start and last stop
❏ Hour counter:
- Display of schedules of activation, start, loading, mainte-
nance warns
❏ Events archive:
- Storage of alarms and blocks, with the indication of the when
the alarm was activated, machine status.
851

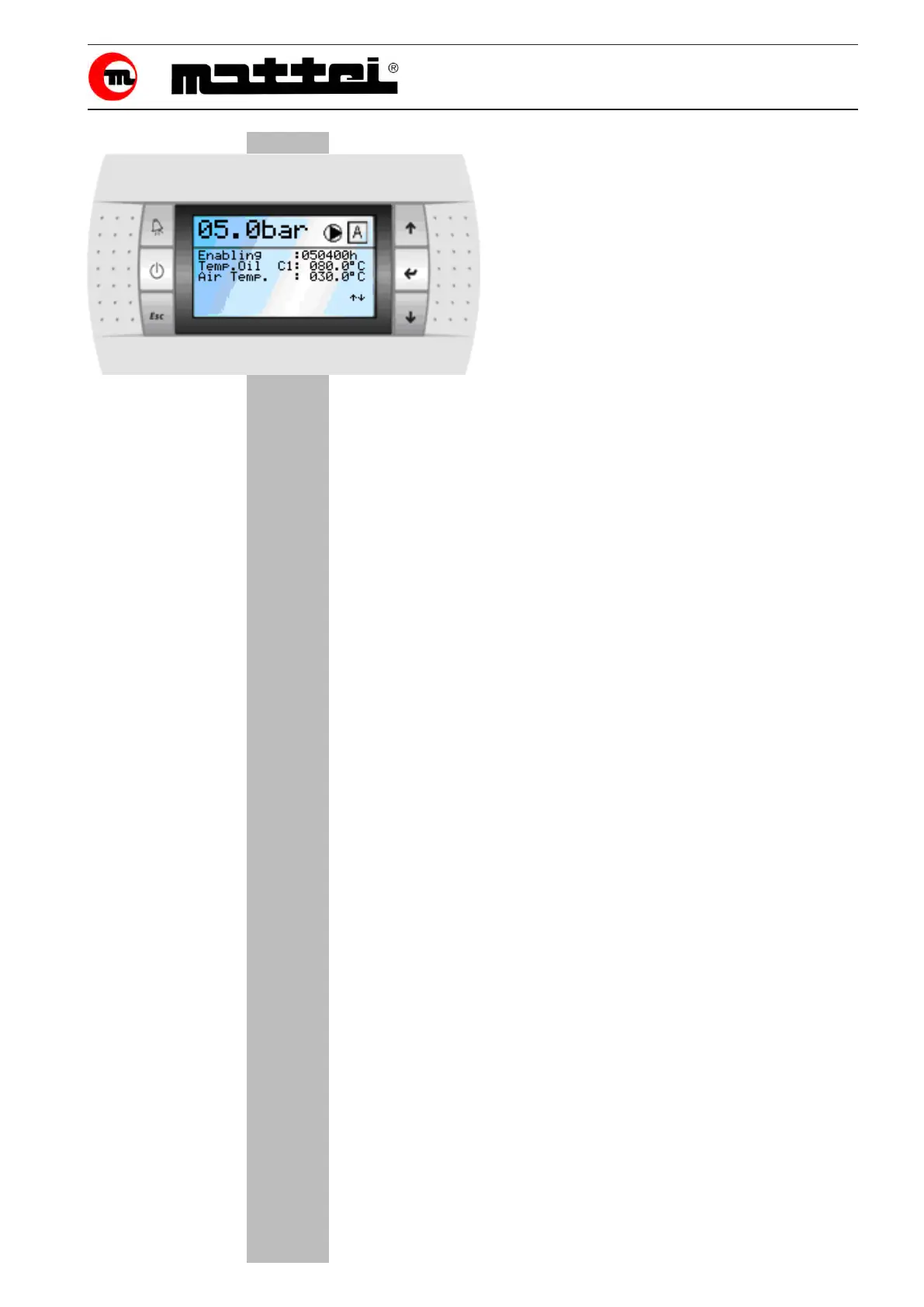

MAESTRO
xs
is a programmable control unit
which adapts compressor operation to the
specic requirements of the air line it is con-
nected to. It features various programming
levels and performs operating and fault con-
trols and analysis.
Advanced programming and analysis levels
are protected by digital codes to prevent unin-
tentional access.
Maestro xs also contains a memory which
saves settings and operating data even if the
compressor is disconnected from the power
supply or switches off due to a power cut.
