Maintenance

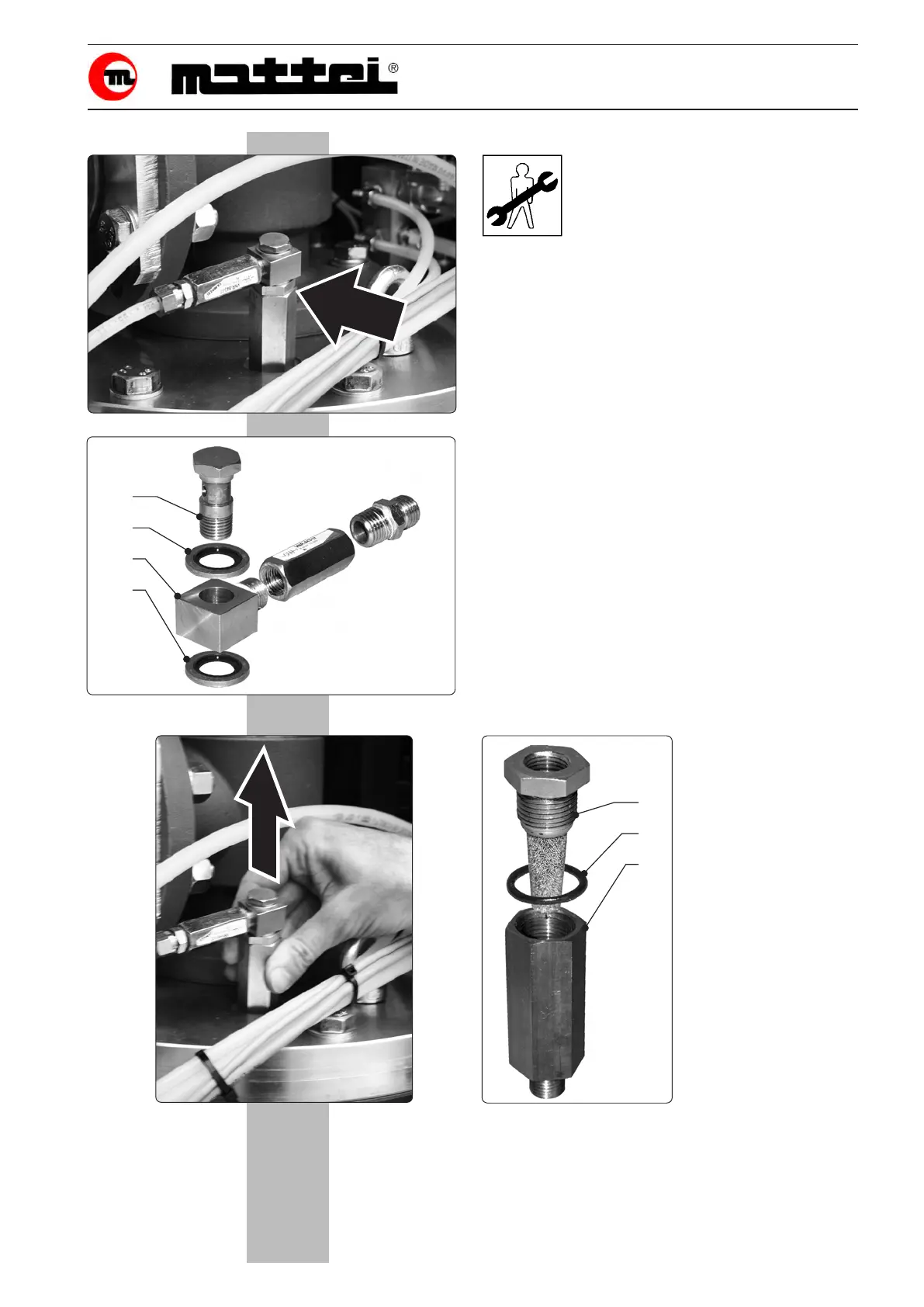

Cleaning and/or replacing the oil return
valves (Photo 1)
Proceed as follows :
- unscrew the screw (Photo 2 - Pos. 1);
- remove the connection (Photo 2 - Pos. 3) and
the gaskets (Photo 2 - Pos. 2);
- unscrew the lter (Photo 4 - Pos. 4) from its
seat (Photo 4 - Pos. 6);
wash the valve with detergent and blow with
compressed air; replace the sintered lter if it is
fouled.
Always check the integrity of the O ring (Photo 4
- Pos. 5) for the assembly and replace it, if neces-
sary.
Replace it (Photo 4 - Pos. 5) always when chan-
ging the oil.
Repeat the operation at every 500 hours of ope-
ration.
