TI008G0001
7.06
Maintenance

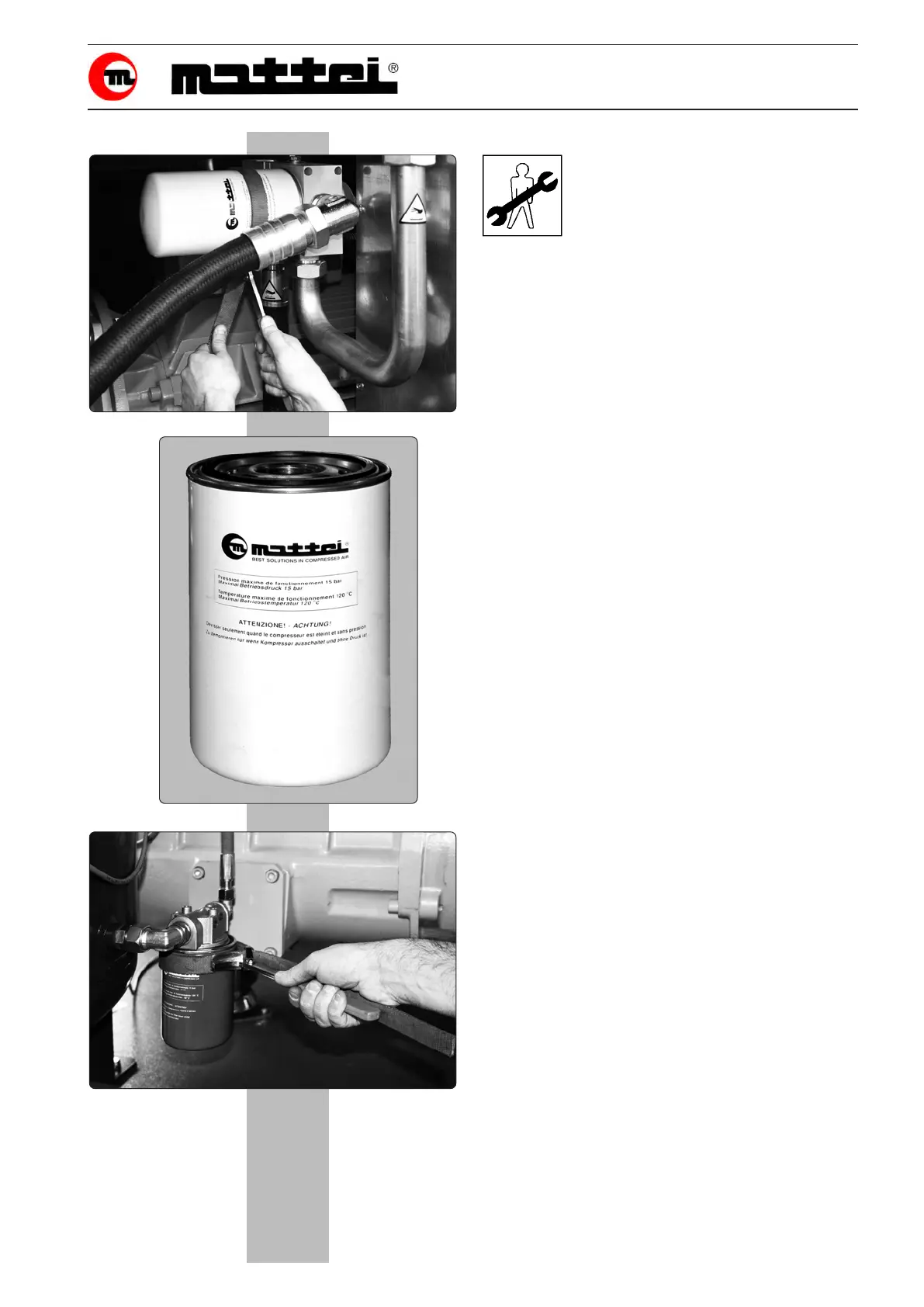

Replacing of the oil lter
Replace the oil lter every time
you change the oil.
Do not discharge the oil from the machine to
replace the lter.
Just wait for a few seconds after the last stop to
enable the oil in the tubes to ow.
Proceed as follows:
- unscrew the lter cartridge (Photo 1)
- clean the seat;
- wet the gasket of the new cartridge with oil and
screw it (Photo 2).
637
1
927
2
101
3
934
Cleaning and replacement of bush lter
(Photo 3)
Proceed as follows:
- unscrew the lter cartridge (Photo 3)
- clean the seat;
- wet the gasket of the new cartridge with oil and
screw it.
