Maintenance
TI008G0001

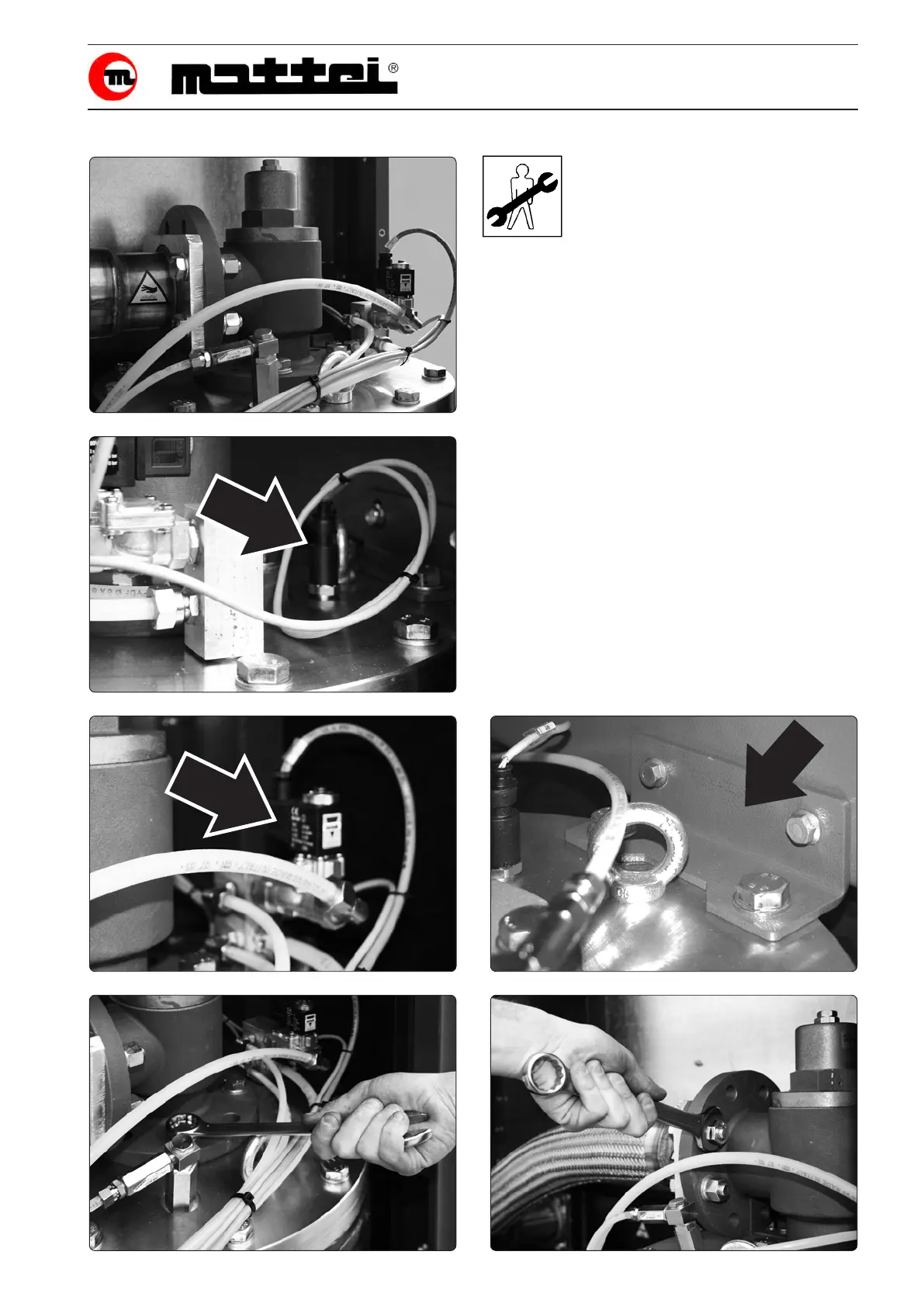

Replacing the air-oil separator
elements (Photo 1)
1 - Remove the side panels of the soundproof
canopy to gain access to the separator.
2 - Disconnect the separator pressure probe
(Photo 2).
3 - Remove the ORV as shown in section “ORV
Cleaning and Replacement”.
4 - Detach the pressure exhaust solenoid valve
and the feeding pipes of the oil stop valve, the
load setting valve and the vacuum relief valve
(Photo 3).
5 - Dismantle the small squares xing the separator
to the canopy panel (Photo 4).
6 - Remove the minimum pressure valve body:
- unscrew the 4 screws xing the head to the
separator cover (Photo 5).
- To remove the body extract the air delivery
pipe from the radiator housing (Photo 6).
928
2
929930
3
626
3
931
932
101
5
4
6
1
