7.08
Maintenance
TI008G0001
ATTENTION
The tool shown in Photo 7
allows for an easier removal
of the cover.
Please contact MTA for or-
dering the tool.

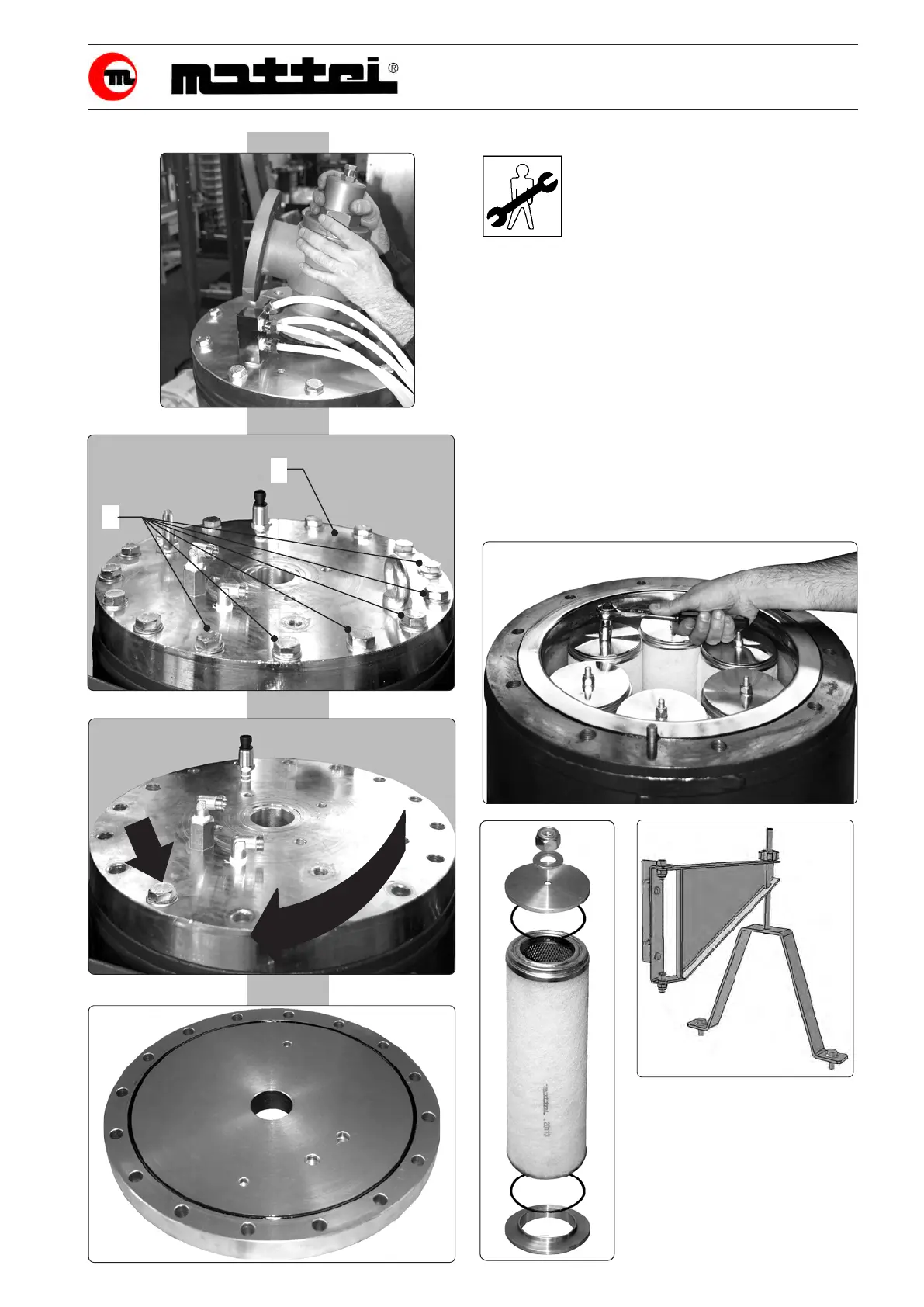

Replacing the air-oil separator
elements
7 - Unscrew the xing screws
(Photo 2 - Pos. 2) of the cover
(Photo 2 - Pos. 1).
8 - Remove the xing screws except one that will
act as the cover rotation pin.
9 - Rotate the cover as shown in Photo 3
while avoiding any damage to the o-ring.
(Photo 4)
10 - Unscrew the spark plugs (Photo 5) and
withdraw them from the separator.
11 - Replace the spark plugs (Photo 6).
Act in the reverse order for the assembling, while
verifying the condition of the o-ring.
Note: Carefully tighten the cover screws with a 20
Kgm torque.
