BLADE
5-1
TI215G0010
Installation
THE MACHINE POSITION
In the section “Technical Data” you can nd the overall
dimensions, the weight, and the cooling values of the
machine. The compressor must be installed in a covered
and well ventilated area, away form heat sources. It can
be simply placed on a solid and level oor. It does not
require any type of special foundation.

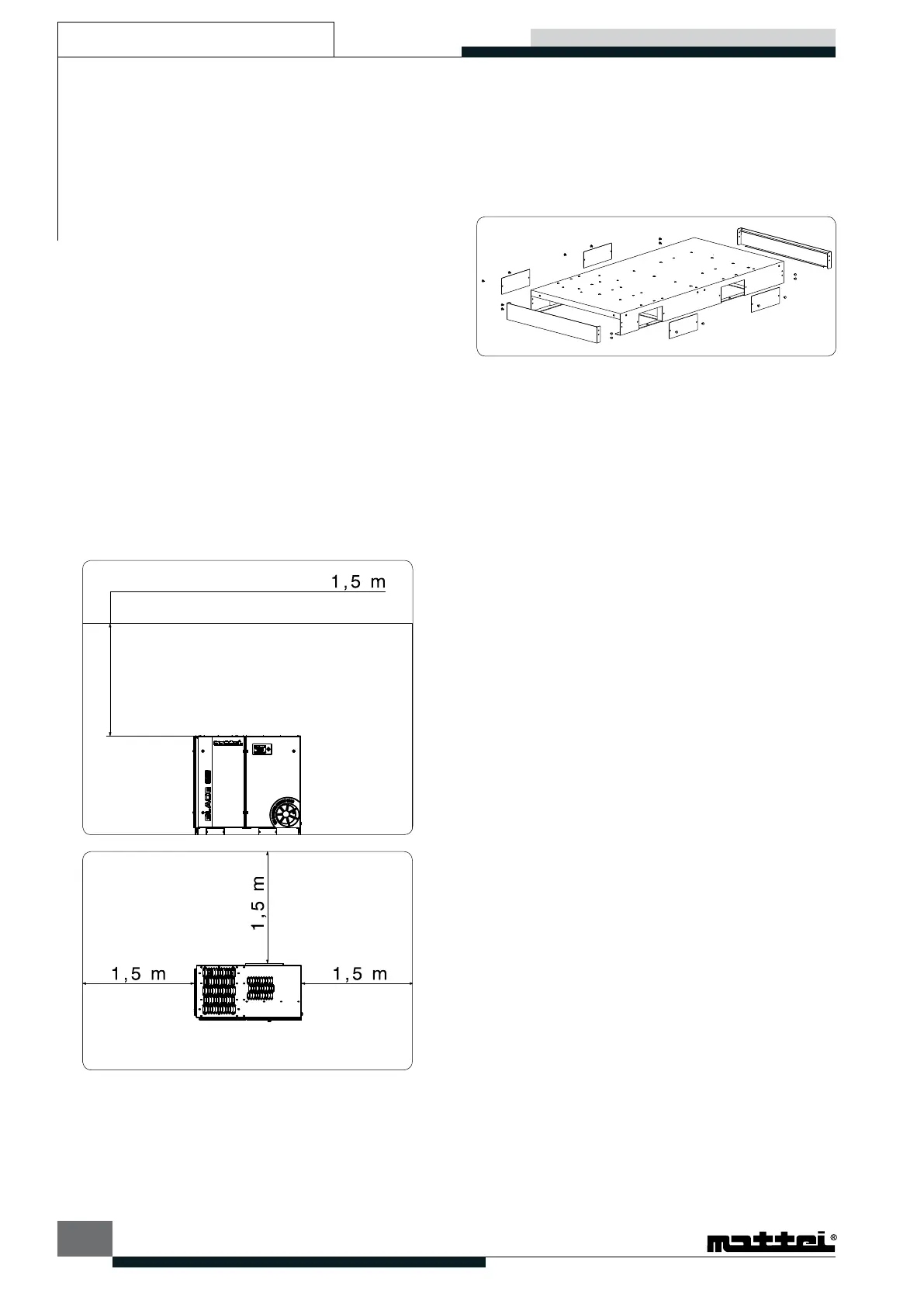

Space and ventilation around the machine are essential.
An air-cooled compressor, driven by an electrical motor,
produces heat equal to about 85% the absorbed power.
For the BLADE 15÷22 Series machines, having the
cooling air outlet on the canopy top panel, the distance
from the ceiling should not be lower than 1,5 meters.
If such a clearance is not possible, a hot air conveyor
must be installed (see further on the section on ducts
size and heat recovery). The 1,5 meter distance, free from
any obstructions, should be also kept on the intake end.
To make it easier to perform checks and maintenance
operations on the compressor leave at least 1,5 m
clearance from all other sides.
Together with the compressor a kit to complete the set
up of the machine is supplied, which has to be mounted
on the base after the compressor installation (see image
below).
