MAX power MPOP5720/US - Operation and Maintenance; Battery Replacement Procedure

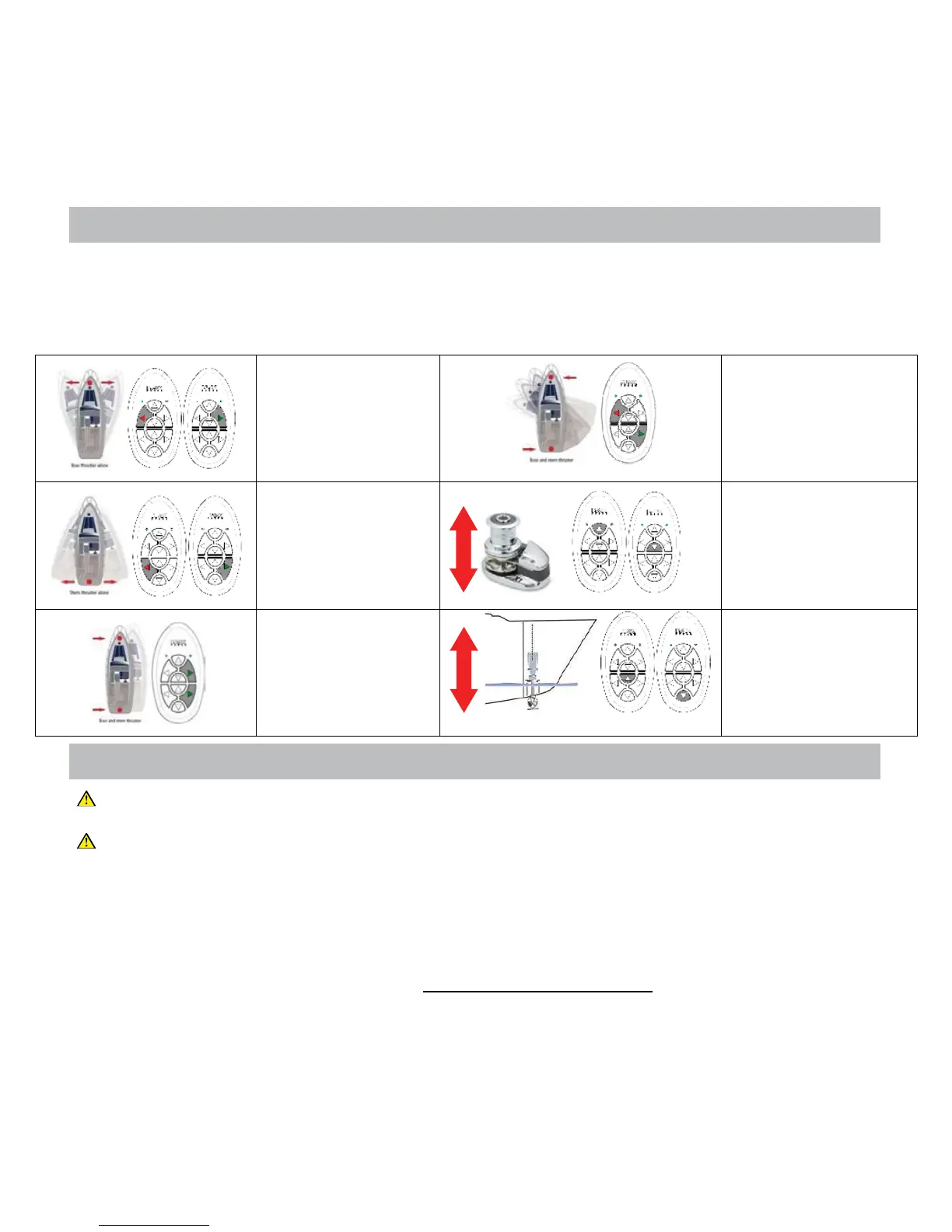

10- EXAMPLES OF USE
11- REPLACING THE BATTERIES
Using the remote control with a Max Power thruster or a windlass
1. Turn the thruster / windlass ON (via its control panel).
2. Turn the receiver ON if the power supply is not the same as the thruster / windlass.
3. Use the remote control to operate the thruster / windlass (see below instructions).
BOW THRUSTER
PORT / STARBOARD
STERN THRUSTER
PORT / STARBOARD
BOW AND STERN
THRUSTER
STARBOARD /
STARBOARD
BOW AND STERN
THRUSTER
PORT / STARBOARD
WINDLASS
UP / DOWN
RETRACTABLE
THRUSTER
UP / DOWN
CAUTION: ENSURE THAT THE EQUIPMENT’S POWER SUPPLY IS SWITCHED OFF BEFORE REPLACING THE
BATTERIES IN ORDER TO AVOID ACCIDENTAL ACTIVATION OF THE EQUIPMENT.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.
1. Remove the 4 screws from the back of the transmitter
2. Remove the back part of the transmitter
3. Remove the 2 batteries on the electronic control card
4. Replace the 2 batteries with 2 new CR2430 batteries. Ensure the polarities are respected.
5. Replace the back part of the transmitter and GENTLY TIGHTEN THE SCREWS whilst ensuring that the rubber
membrane is correctly positioned so that the product remains waterproof.
IT IS RECOMMENDED TO CHANGE THE BATTERIES AT THE START OF EACH SEASON
9
