MAX power MPOP5720/US - Electrical Wiring Connections; Control Box and Receiver Supply Diagram; System Component Connections

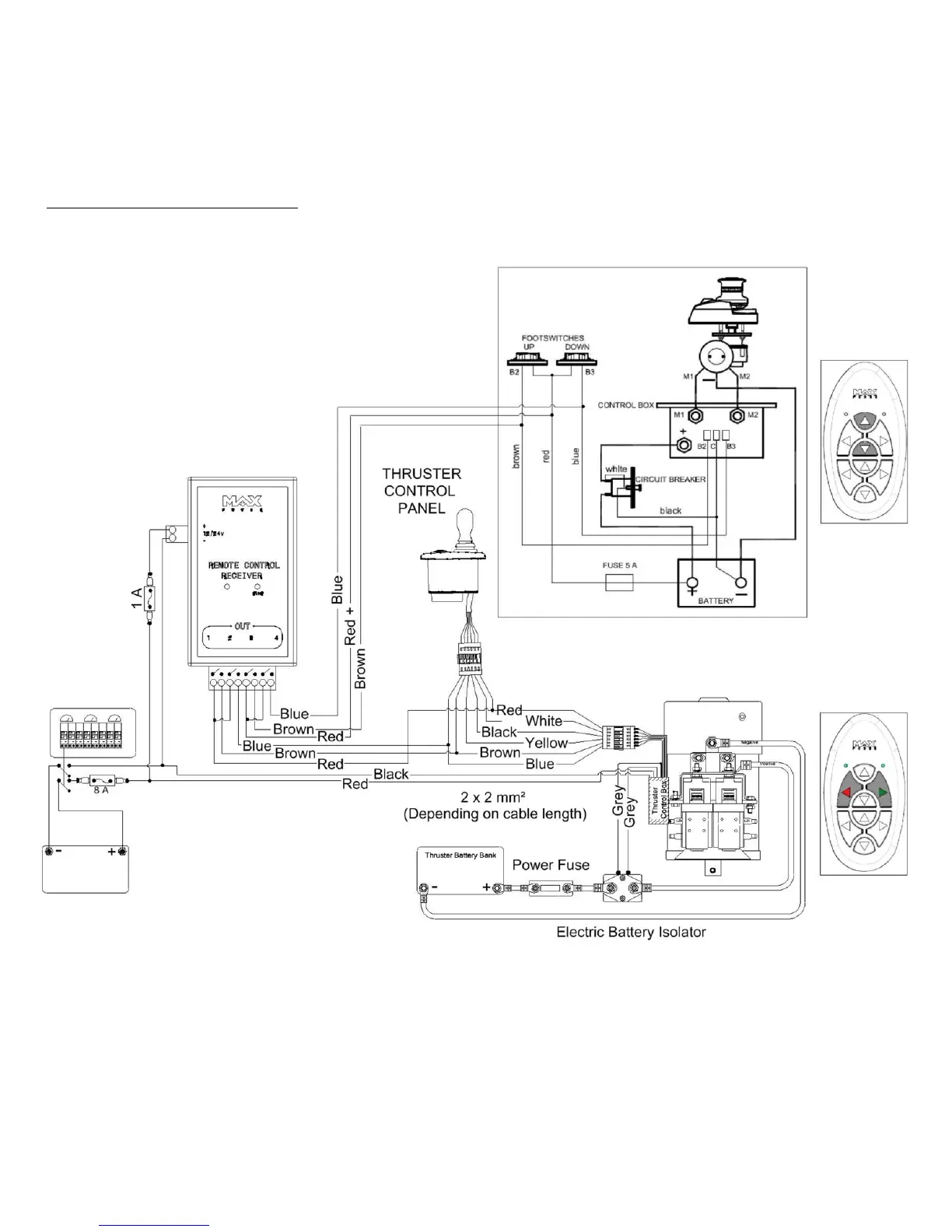

ELECTRICAL WIRING CONNECTION
Examples given for:
• Max Power Thruster CT60/CT80
• Lofrans Windlass (3 terminals motor)
For other makes and models of equipment please refer
to the manufacturer’s wiring diagram
CONTROL BOX AND REMOTE
CONTROL RECEIVER SUPPLY:
To be connected to seperate
battery bank (advised)
Yacht Main DC
Equipment
Breaker Board
Independent Battery Bank
for Control Circuit Supply
12
