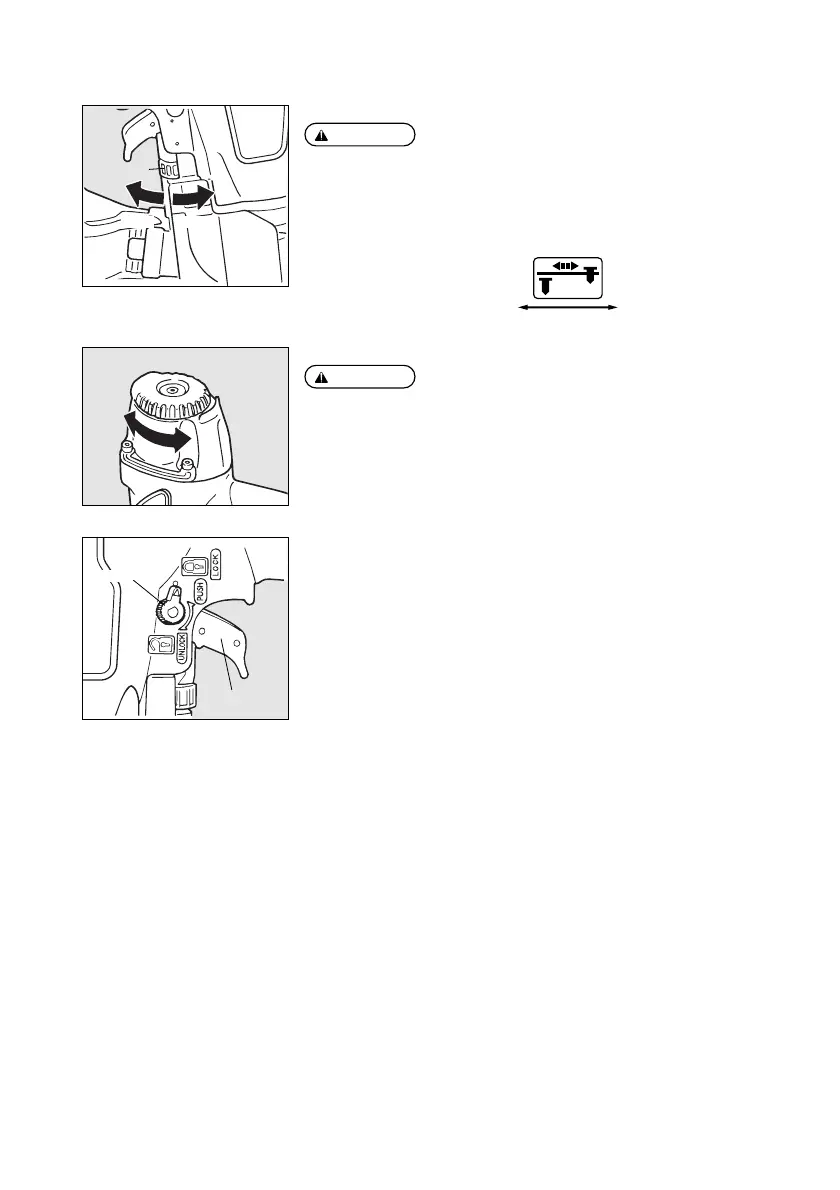

DRIVING DEPTH ADJUSTMENT DIAL
ALWAYS disconnect air supply before adjustment dial.
q
With air pressure set, drive nails into a representative material sample to determine
if adjustment is necessary.
w
If adjustment is required, disconnect air supply.
e
Refer to the mark on the contact arm for direction to turn the adjustment dial.
r
Reconnect air supply.
DIRECTIONAL EXHAUST COVER
ALWAYS disconnect air supply before rotating the exhaust cover.
Direction of the exhaust air is changeable by rotating exhaust cover by hand.
TRIGGER LOCK MECHANISM
The tool is equipped with a trigger lock mechanism. Push and rotate the trigger LOCK
to the trigger UNLOCK position before driving nails.
WARNING:
WARNING:
Adjustment dial
Deeper Shallow
Trigger lock dial
Trigger
Deeper Shallow
To Next Page
