Max EH-70F - Page 5

−5−
5. MAGAZINE ASSY. (2)
1. Insert the Pusher Assy. in to the Magazine Assy. in the position shown in the diagram, and place
the Staple Guide on top by matching it from above.
2. Affix the Face Plate Seal to the Face Plate CF.
3. Place the Driver, Forming Plate, and Guide Plate (70F) in this order on the Face Plate CF, matching
them together in the direction shown in the diagram. (Apply silicone grease MOLYCOTE EM-30L to
the surfaces of the Face Plate CF that come into contact with the Driver.)
4. Insert the assembly produced in part 3 into the Magazine Assy. (1) in the position shown in the
diagram. (Press the assembly in until a click is heard when the Hook A of the Guide Plate (70F)
enters the Hole A of the Magazine Assy. (1).)

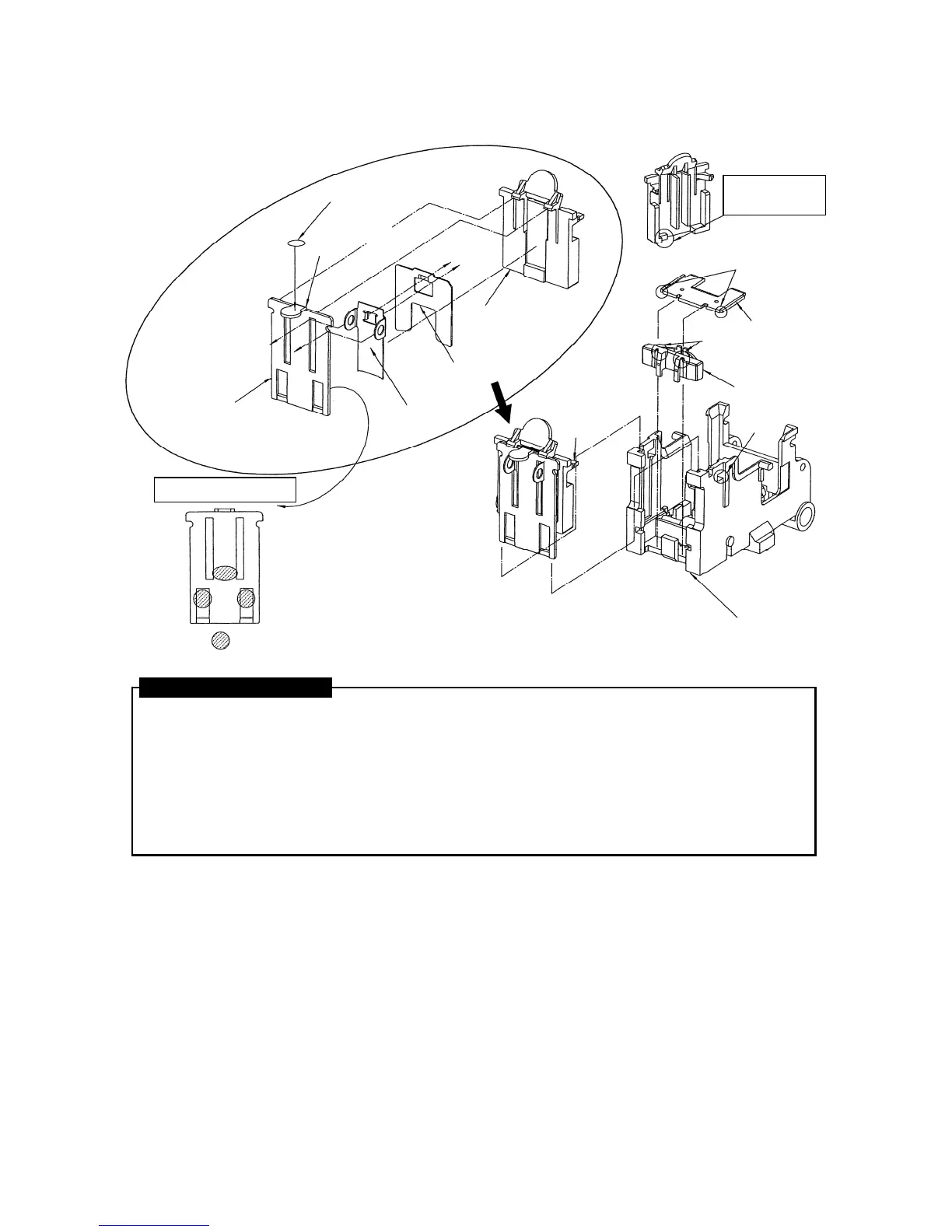

ASSEMBLY PROCEDURE
Positions for applying silicone
grease MOLYCOTE EM-30L.
Thinly apply silicone grease MOLYCOTE
EM-30L to the shaded parts.
Hook A
PUSHER ASSY.
(EH80166)
STAPLE GUIDE
(EH12863)
* Take care of the
mounting direction.
Confirm that there
is a cutout here.
GUIDE PLATE (70F)
(EH17387)
FORMING PLATE
(EH12282)
FACE PLATE SEAL
(EH12406)
DRIVER
(EH12736)
FACE PLATE CF
(EH17386)
MAGAZINE ASSY. (1)
Hole A
A
pply silicone grease
MOLYCOTE EM-30L
here.
* Take care of the
mounting direction.
