−4−

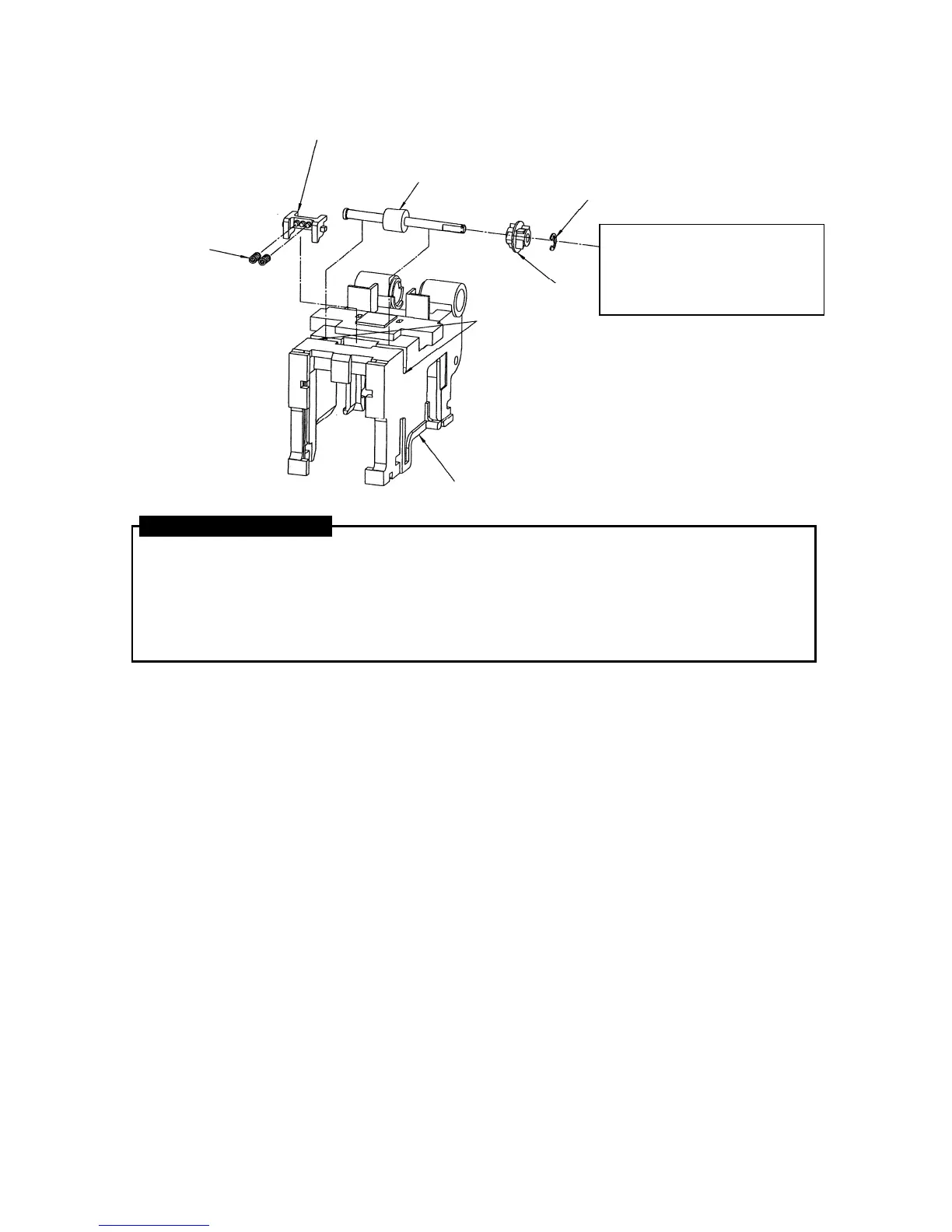

4. MAGAZINE ASSY. (1)
1. Insert the Ratchet on to the Rubber Roller Unit CF and fix it using the E-ring 2.3. Insert the Rubber
Roller Unit CF in the Magazine as shown in the diagram. (Apply silicone grease MOLYCOTE EM-
30L to the parts that come into contact with the Rubber Roller Shaft CF and the Magazine
beforehand.)
2. Attach the Roller Shaft Holder from above on to the Rubber Roller Shaft CF that has been inserted
in the Magazine. Insert the Springs 3522 between the protruding parts of the Roller Shaft Holder
shown in the diagram and the Magazine wall.
ASSEMBLY PROCEDURE
ROLLER SHAFT HOLDER
(EH12288)
SPRING 3552
(KK23552)
MAGAZINE
(EH12279)
E-RING 2.3
(JJ10003)
RUBBER ROLLER UNIT CF
(EH70486)
* Do not apply oil (particularly not silicone
grease) to the Rubber Roller Unit. If oil is
attached, replace the Rubber Roller Unit
CF and the Rubber Roller Shaft CF as a
set. This is because if oil is attached, it
may cause staple feeding problems.
A
pply silicone grease
MOLYCOTE EM-30L here.
(Apply grease to the parts where the Rubber Roller Shaft and
the Magazine come into contact.)
A
fter fixing the Rubber Roller Shaft, apply silicone grease and
rotate the Shaft.
RATCHET
(EH14092)
