7. MAIN UNIT ASSY. (1)
1. After applying silicone grease MOLYCOTE EM-30L to the Clincher Cam, mount the Clincher Cam in
the rear part of the Magazine Assy., in the direction shown in the diagram (taking care of the
direction).
(Matching the projection on the side of the Clincher Cam with the groove on the Magazine, slightly
rotate the Clincher Cam.)
2. After applying silicone grease MOLYCOTE EM-30L to the Rollers, match the Rollers with the Cam
Covers as shown in the diagram, making 2 assemblies.
(Apply silicone grease MOLYCOTE EM-30L to the inside surface of the circular part of the Cam
Covers.)
3. Combine one of the assemblies produced in part 2 with the Drive Gear. Pass the Drive Shaft
through this assembly from the Cam Cover side, and fix using the E-ring 4 CF on the Drive Gear
side. (Apply silicone grease MOLYCOTE EM-30L on all surfaces of the Drive Gear.)
4. Combine the remaining assembly produced in part 2 with the Cam Sensor Plate.
5. Pass the assembly produced in part 3 through the hole in the center of the Frame Assy., the shaft
hole in the Magazine Assy. and the shaft hole of the Clincher Cam until the tip of the Drive Shaft
protrudes from the other side of the Frame Assy.
6. Mount the Cam Cover side of the assembly produced in part 4 on to the tip of the Drive Shaft of part
5, and fix on the Cam Sensor Plate side using the E-ring 4 CF.

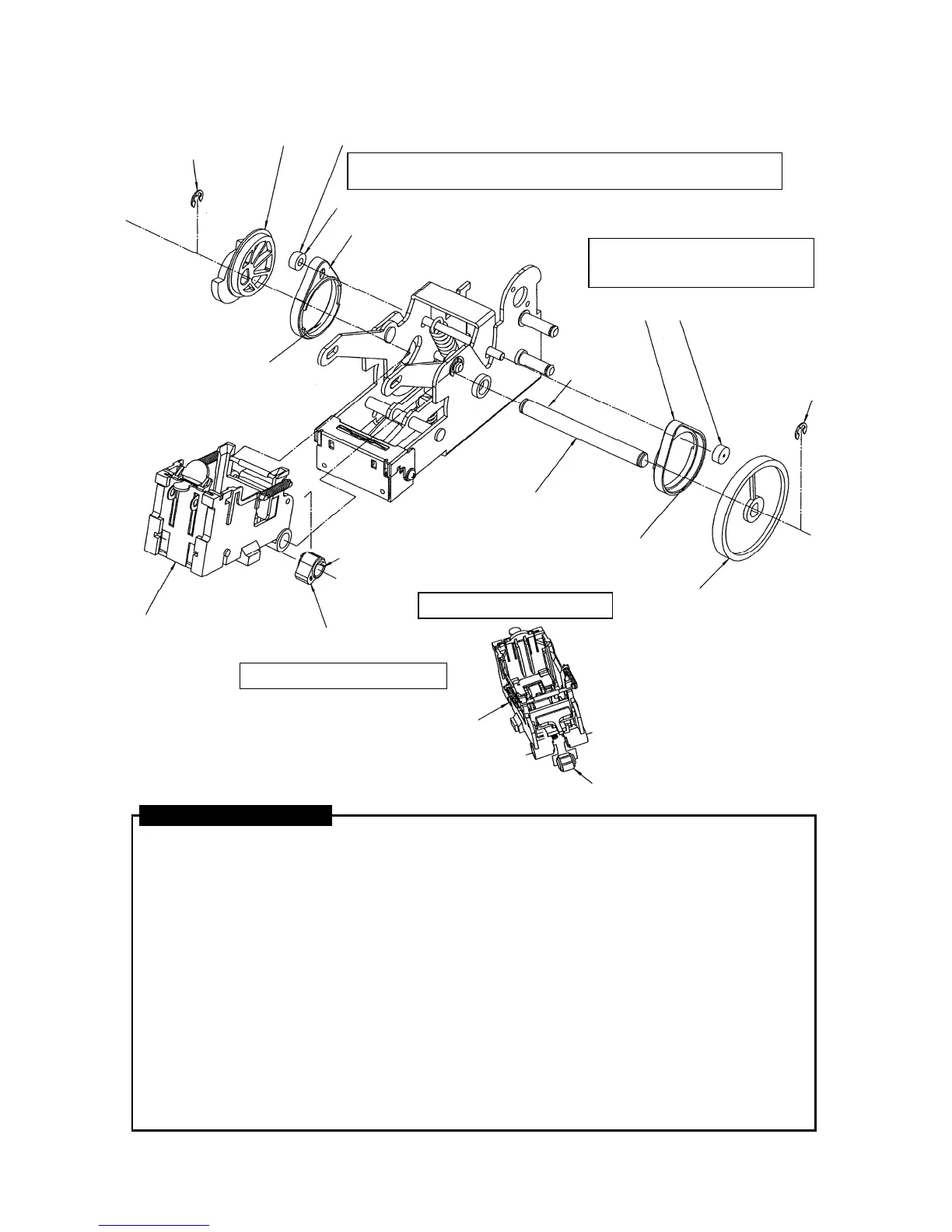

ASSEMBLY PROCEDURE
Clincher Cam Mounting Position
MAGAZINE ASSY. (3)
CLINCHER CAM
(EH12294)
CAM SENSOR PLATE
(EH12299)
E-RING 4 CF
(JJ10509)
CAM COVER
(EH12296)
ROLLER
(EH12297)
DRIVE SHAFT
(EH12295)
DRIVE GEAR
(EH12298)
MAGAZINE ASSY. (3)
* Take care of the mounting direction.
* Take care of the mounting direction.
The larger sized hole of the Roller should
be mounted on the Cam Cover side.
E-RING 4 CF
(JJ10509)
