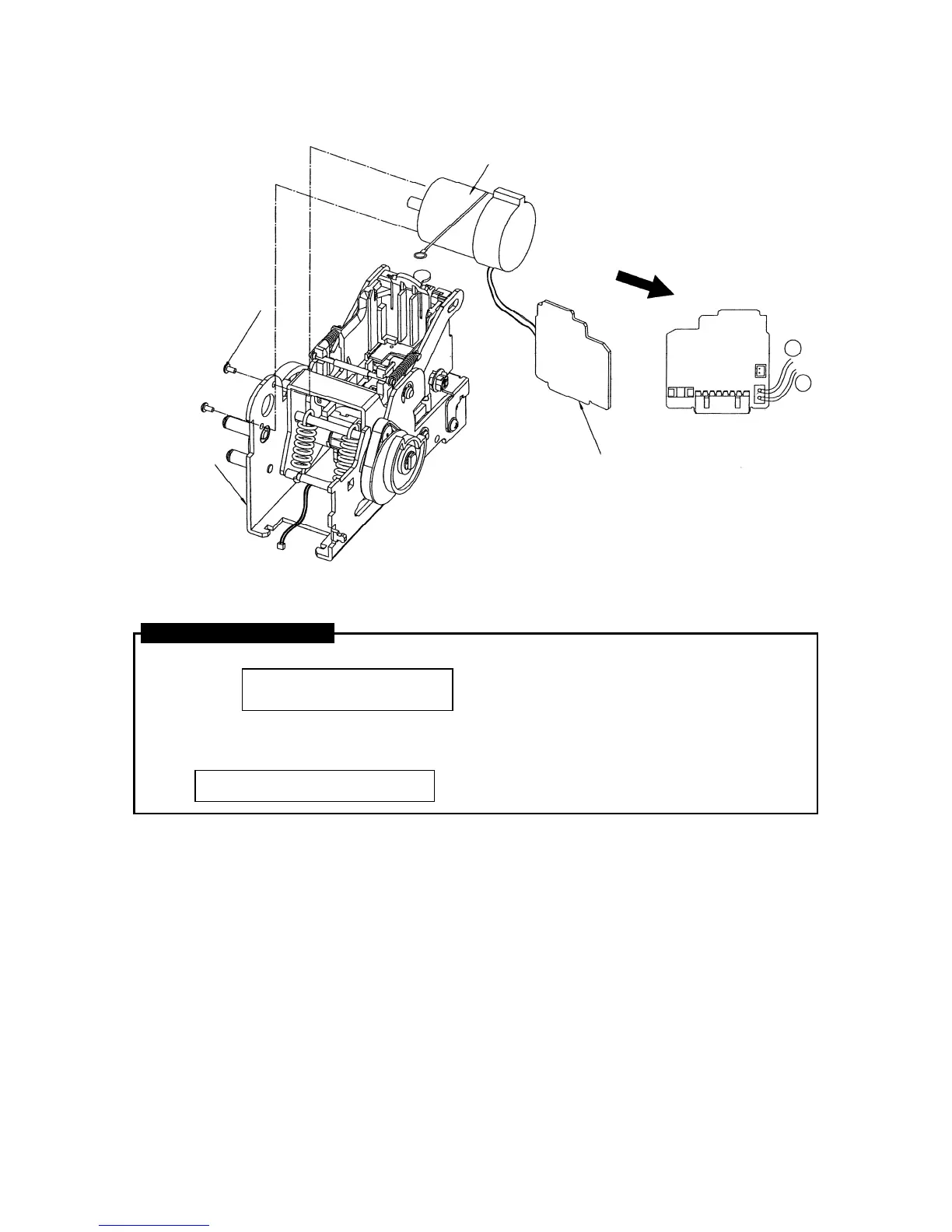

8. MAIN UNIT ASSY. (2)
1. Fix the Motor Unit in the Main Unit Assy.(1) by inserting and tightening the two Bind Screws 2.6x4
CF.
2. Insert the wires (board-in connectors) from the Motor Unit into the Main PWB Unit and solder the
Motor Unit terminals. (Soldering temperature 350ºC ± 10%)
ASSEMBLY PROCEDURE
Tightening Torque: 0.59N·m
±
10%
(6kgf·cm)
* Take care of the terminal direction
MAIN UNIT
A
SSY. (1)
MAIN PWB UNIT
(EH70496)
Red
Blac
k
BIND SCREW 2.6x4 CF
(AA25514)
MOTOR UNIT
(EH70482)
