2. SPECIFICATIONS AND TECHNICAL DATA

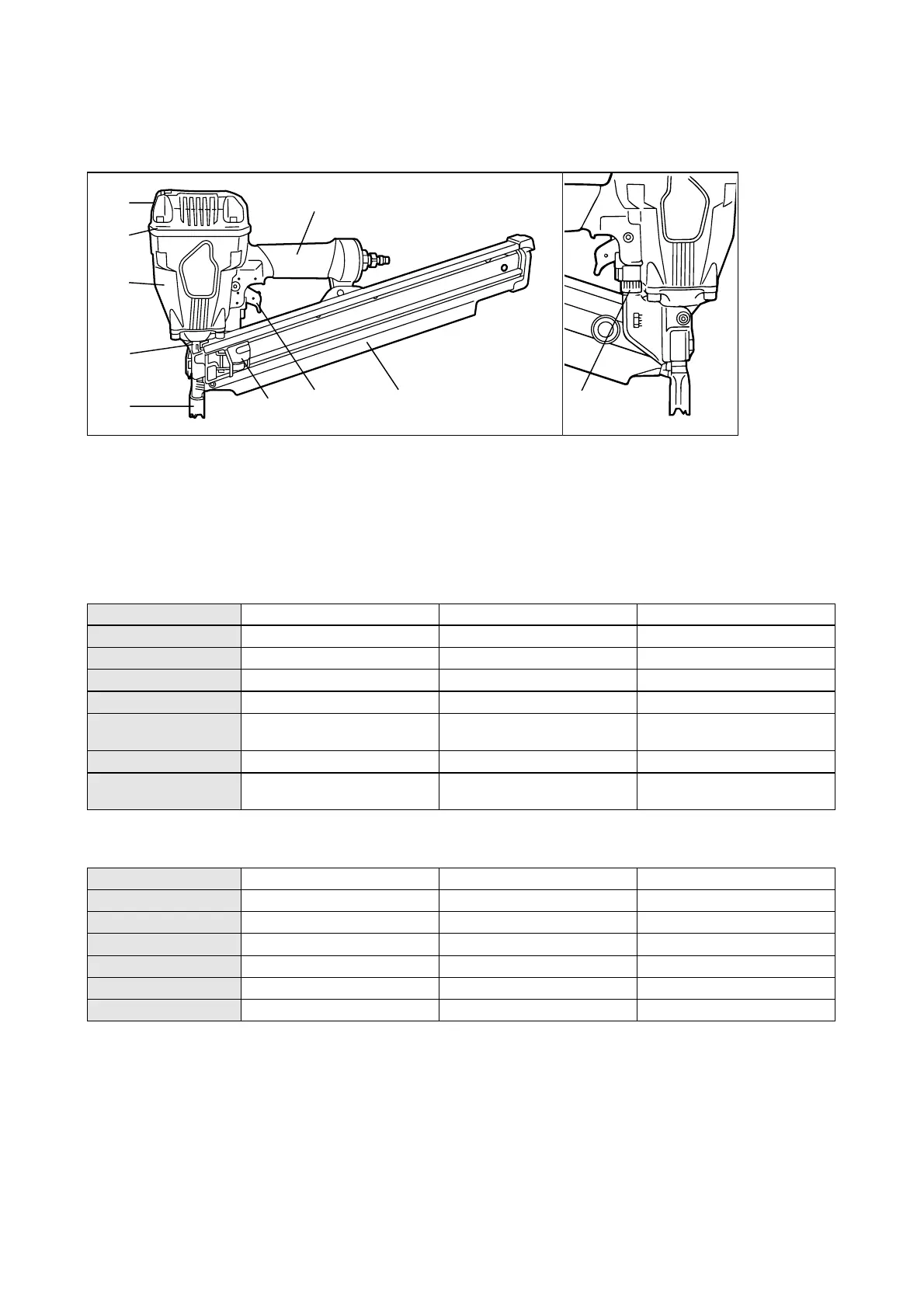

1. NAME OF PARTS
q Frame
w Cylinder Cap
e Contact Arm
r Nose
t Magazine
y Trigger
u Grip
i Exhaust Cover
o Pusher
!0 Adjustment Dial
i
u
w
q
r
e
y
o
t
PRODUCT NO. SN883RH SN883CH/34 SN883CH/28
HEIGHT 11-7/8˝ (300 mm) 12-1/4˝ (310 mm) 12-1/4˝ (310 mm)
WIDTH 4-3/4˝ (121 mm) 4-3/4˝ (121 mm) 4-3/4˝ (121 mm)
LENGTH 20-3/4˝ (526 mm) 18-1/8˝ (460 mm) 16-7/8˝ (428 mm)
WEIGHT 7.0 lbs. (3.2 kg) 6.8 lbs. (3.1 kg) 7.0 lbs. (3.2 kg)
RECOMMENDED
70 to 100 p.s.i. (5 to 7 bar) 70 to 100 p.s.i. (5 to 7 bar) 70 to 100 p.s.i. (5 to 7 bar)
OPERATING PRESSURE
LOADING CAPACITY 64 Nails 90 Nails 90 Nails
AIR CONSUMPTION
0.077 ft
3
at 90 p.s.i. (6 bar) 0.077 ft
3
at 90 p.s.i. (6 bar) 0.077 ft
3
at 90 p.s.i. (6 bar)
operating pressure operating pressure operating pressure
PRODUCT NO. SN883RH SN883CH/34 SN883CH/28
NAIL LENGTH 2˝ to 3-1/4˝ (50 to 83 mm) 2˝ to 3-1/4˝ (50 to 83 mm) 2˝ to 3-1/4˝ (50 to 83 mm)
SHANK DIAMETER .113˝ to .148˝ (2.9 to 3.8 mm) .113˝ to .131˝ (2.9 to 3.3 mm) .113˝ to .131˝ (2.9 to 3.3 mm)
SHANK TYPE Smooth, Ring, Screw Smooth, Ring, Screw Smooth, Ring, Screw
HEAD DIAMETER .267˝ to .295˝ (6.8 to 7.5 mm) .256˝ to .303˝ (6.5 to 7.7 mm) .256˝ to .303˝ (6.5 to 7.7 mm)
COLLATION ANGLE 21 degree 34 degree 28 degree
HEAD Full round head Clipped head Clipped head
2. TOOL SPECIFICATIONS
TOOL AIR FITTINGS:
This tool uses a 3/8˝ N.P.T. male plug. The inside diameter should be .39˝ (9.9mm) or larger. The fitting must be capable of
discharging tool air pressure when disconnected from the air supply.
RECOMMENDED OPERATING PRESSURE:
70 to 100 p.s.i. (5 to 7 bar). Select the operating air pressure within this range for best fastener performance.
DO NOT EXCEED 120 p.s.i. (8 bar).
3. FASTENER SPECIFICATIONS
