04 - Connecting the charging station
Option4.1-ConnectingaTeslaWallConnector
Install a circuit breaker and/or earth leakage circuit breaker for each
chargingstationatthemaximalpoweravailable.Seep.33.
Follow the installation instructions of the charging station. These
instructions can be found in the installation manual of the charging
station.
A.
B.
Set the Wall Connector to Slave mode
by placing the rotary switch in F
position.

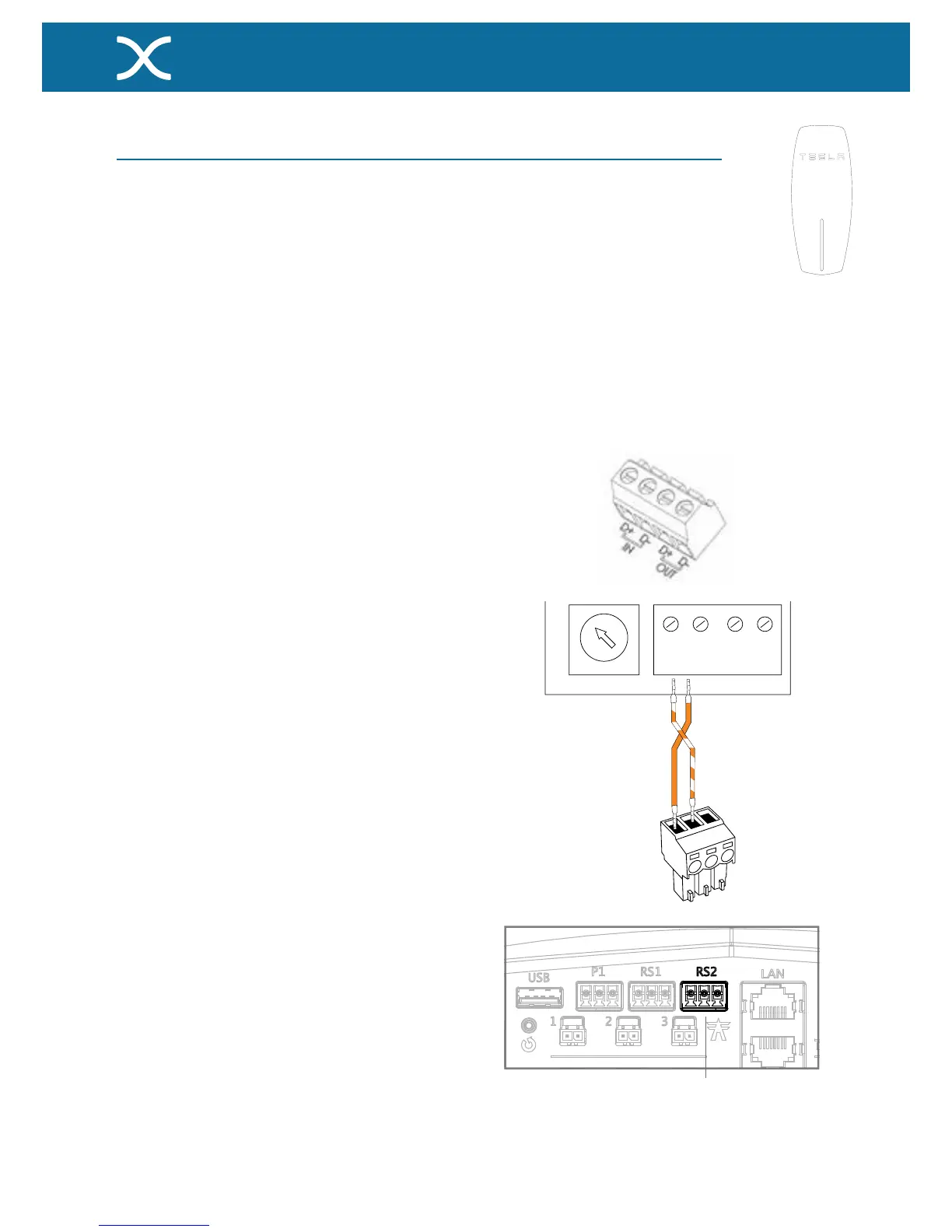

On the Maxem side connect the
supplied green Phoenix connector
to the data cable. 2 wires need to be
connected:
• Connect wire 1 (orange-white) to
port2.
• Connectwire2(orange)toport1.
Connect the green Phoenix connector
toportRS2ofMaxem.
ConnectthedatacabletotheINportof
the clamp block of the Wall Connector:
• Connect wire 1 (orange-white) to
D+
• Connectwire2(oranje)toD-
Place a suitable UTP (CAT5 or CAT6) of the Wall Connector to Maxem. (To prevent
electromagnetic interference at the RS485 connection, it is recommended to use FTP
CAT6cableatdistancemorethan25m.Max:50m).
C.
F.
G.
E.
