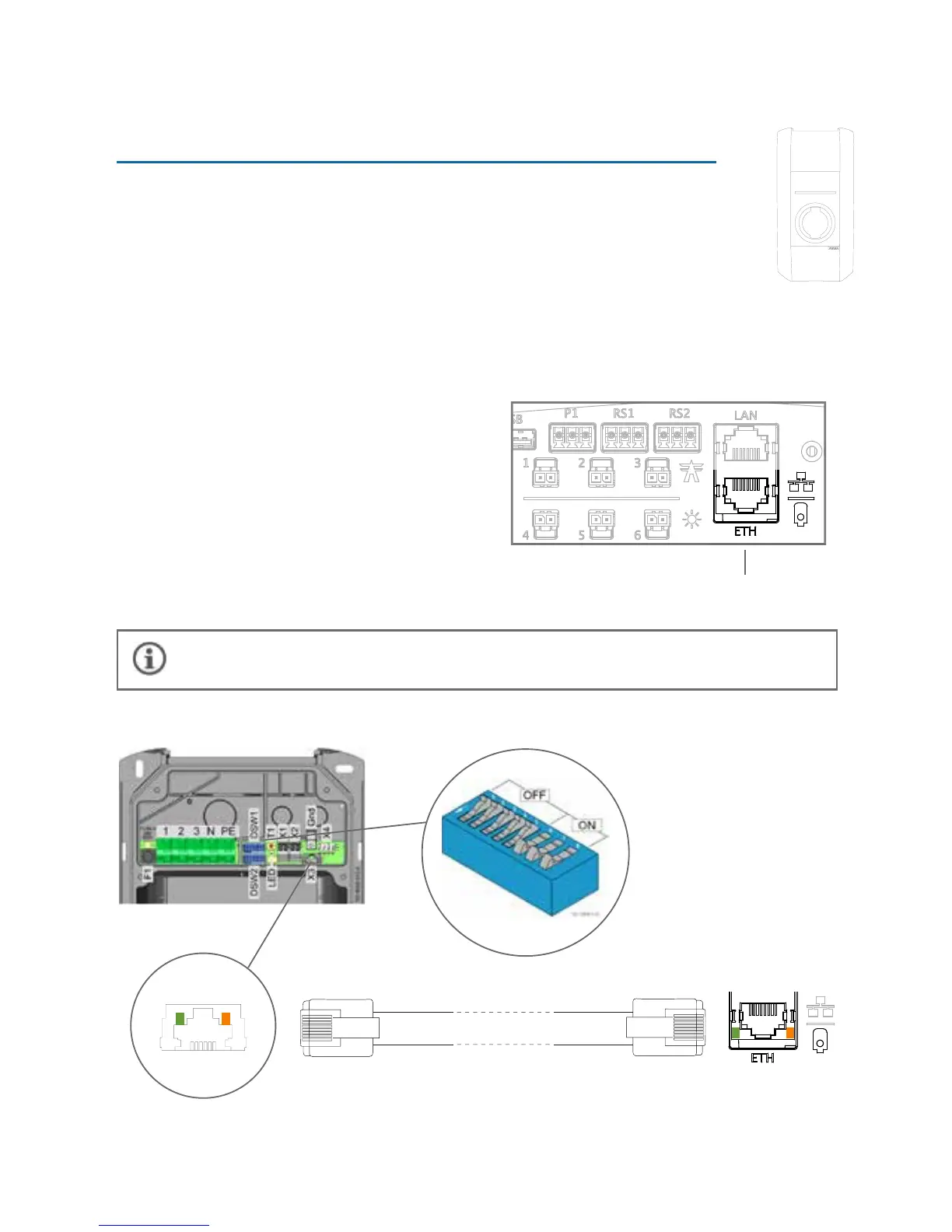

Option4.2-ConnectingaKEBAchargingstation
Install a circuit breaker and/or earth leakage circuit breaker at the
maximalpoweravailable. Seep.33.
Follow the installation instructions of the charging station. These
instructions can be found in the installation manual of the charging
station.
Place a suitable UTP (CAT5 or CAT6) cable from the charging station to Maxem and
clenchRJ45connectorsonbothsides.
Connect the UTP cable to the Ethernet
port of the charging station and the
ETHportofMaxem.
It is advisable to test the network cable with the help of a cable tester.
DSW1-Power(paragraphabove)
DSW2-Addressing(paragraphbelow)
DataactivityonETHport
Maxem
DataactivityonETHport
KebaP20orP30
UTP cable with RJ45 connectors
A.
B.
C.
D.
ETH port for
charging station
REVISION
TITLE:
A4
DWG NO.
SCALE:1:2 SHEET 1 OF 2
WEIGHT:
A A
B B
C C
D D
E E
F F
4
4
3
3
2
2
1
DATESIGNATURE
DO NOT SCALE DRAWING
MATERIAL:
NAME
1
DRAWN
LINEAR:
CHK'D
APPV'D
MFG
Q.A
ANGULAR:
FINISH:
TOLERANCES:
EDGES
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
DEBURR AND
BREAK SHARP
Maxem5-R4
