maxem 5 User Manual

7
EN
P1
port
Ethernet port
to charging station
Ethernet port to Internet
Router
230Vpower
supply
Current transformers
solar panels
Multi functional
USB port
Current transformers
grid connection
RS485
port 1
RS485
port 2

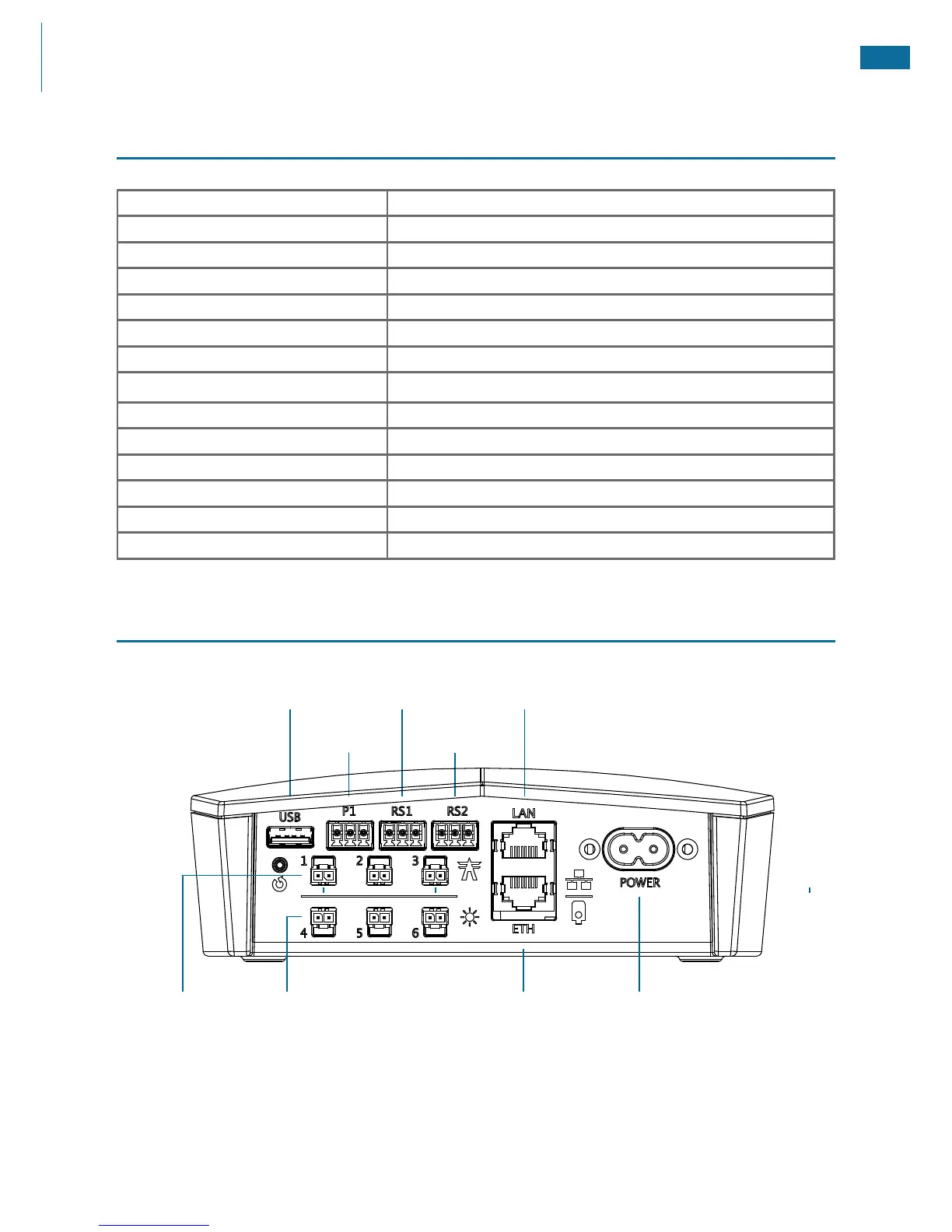

Denitionsinput/outputports
Specications
Dimensions 184mm(L)x167mm(W)x55mm(H)
Weight 700g
Working temperature 10°C to 35°C
Storage temperature 0°C to 60°C
Maximal humidity 80%
Protection class II (double insulated)
Seal IP20
Working height 0 to 2,000 m
EMC EN61326-1(2013),EN61000-3-2,61000-3-3
Safety EN61010-1(2010),EN61010-2-30(2010)
Immunity EN61326-1(2013)
Overvoltage category 300V/CATIII
Input power 110-240V.50/60Hz.Maximum2,75W
Power coils Up to 50A
REVISION
TITLE:
A4
DWG NO.
SCALE:1:2 SHEET 1 OF 2
WEIGHT:
A A
B B
C C
D D
E E
F F
4
4
3
3
2
2
1
DATESIGNATURE
DO NOT SCALE DRAWING
MATERIAL:
NAME
1
DRAWN
LINEAR:
CHK'D
APPV'D
MFG
Q.A
ANGULAR:
FINISH:
TOLERANCES:
EDGES
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
DEBURR AND
BREAK SHARP
Maxem5-R4

maxem 5 Specifications

General

Brand	maxem
Model	5
Category	Measuring Instruments
Language	English
