200mm min.
Centre line of
seating position
Attachment bolt
Anchor tting
Spacer/s (if
required)
Vehicle trim
Vehicle metal
structure
Reinforcing
washer
Lock washer
Nut
64
For cars not fitted with a child
restraint upper anchorage
point
For sedans only

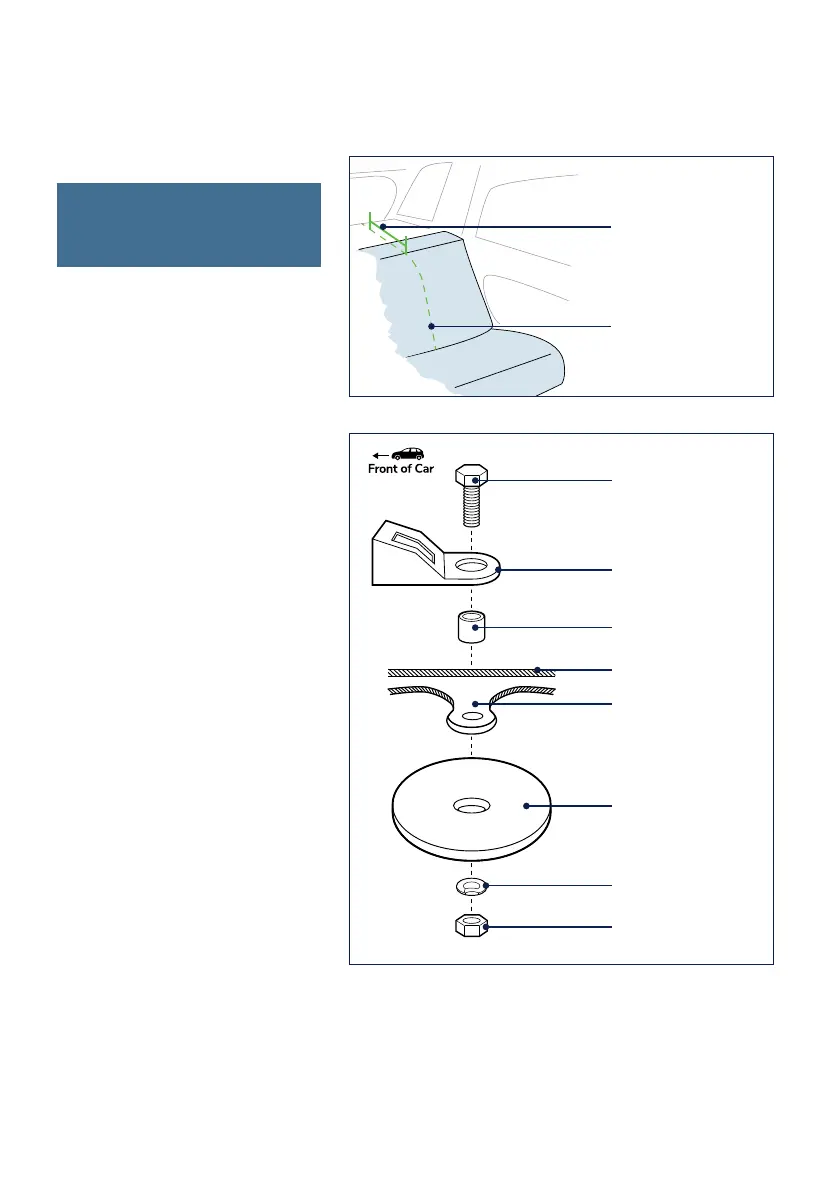

Drill a 9mm diameter hole in the parcel
shelf on the centre-line of the seating
position as shown in Figure 2.
Install the anchor bolt as shown in
Figure 3. It is recommended that this
installation be carried out by a child
restraint tting station or licenced
motor mechanic.
For vehicles other than sedans
In Australia, consult your nearest child
restraint tting station or trafc authority
for vehicle inspection to nd the best,
correct position for the placement of
the upper anchorage point, and for the
correct attachment bolt length and use
of spacers. In New Zealand, consult the
agent for the vehicle.
Figure 3
Figure 2
