Attachment bolt
Anchor tting
Spacer/s (if required)
Vehicle trim
Vehicle metal structure
Lock washer
63
Additional Information
Install Upper Anchorage
For cars fitted with a child restraint
upper anchorage point
CAUTION: DO NOT
OVER-TIGHTEN THE
ATTACHMENT BOLT.
OVER-TIGHTENING MAY
FRACTURE OR BREAK
BOLT. MAXIMUM TORQUE
IS20 NM.

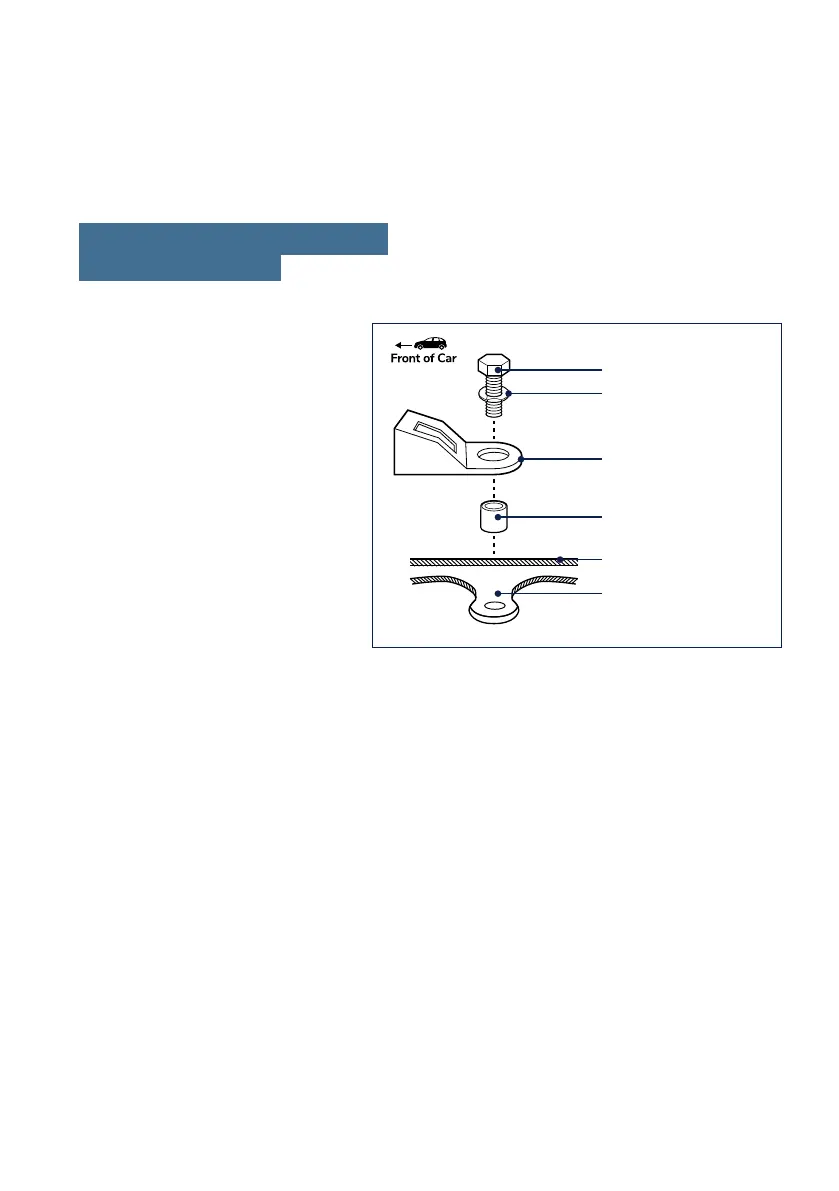

Figure 1
Locate the upper anchorage point
behind the rear seating position
(consult the vehicle owner’s
handbook for the location of the upper
anchorage point).
Remove the thread plug from the
parcel shelf/oor/roof and install the
attachment bolt as shown in Figure 1.
