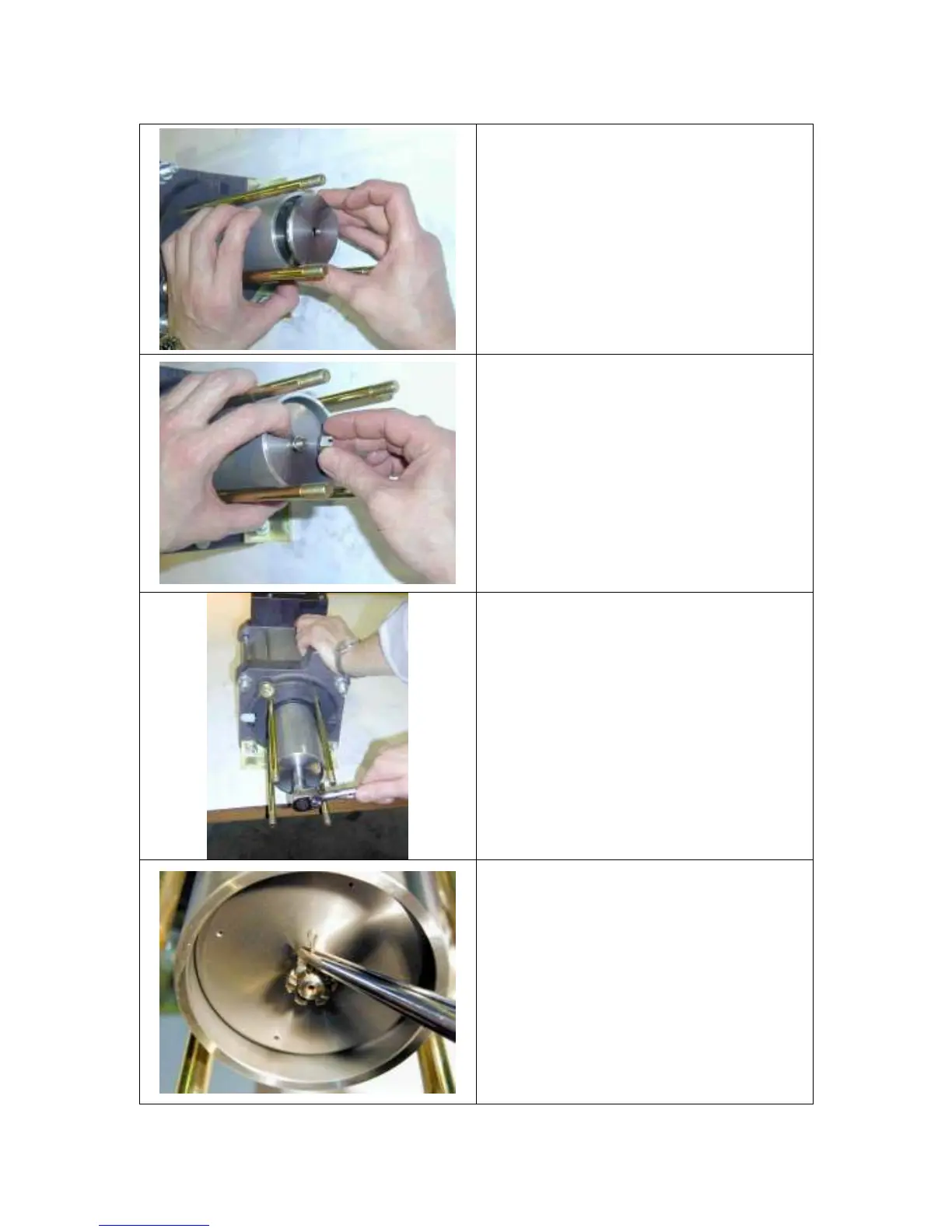

Attach the piston disk.
Attach the spring lock washer and the castle
groove.
Tighten the castle groove with 25 Nm. The
piston sealing ring is pushed onto the O ring
during tightening.
Use the retaining pin to secure the castle nut
(appropriately bend the retaining pin with a
screwdriver).
