WARNING!
• Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is sufficient
to inflict severe injury.
• Always wear eye protection that conforms with CUL
requirements. Failure to do so could result in objects being
thrown into your eyes, resulting in possible serious injury.
• Do not use any attachments or accessories not recommended
by the manufacturer of this tool. The use of attachments or
accessories not recommended can result in serious personal
injury.
• Although many of the illustrations in this manual are shown
with the blade guard removed for clarity, do not operate the
saw without the blade guard unless specifically instructed
to do so.
Fig. 35
Switch in Locked Position
Switch On Switch Off
Switch Key
3736

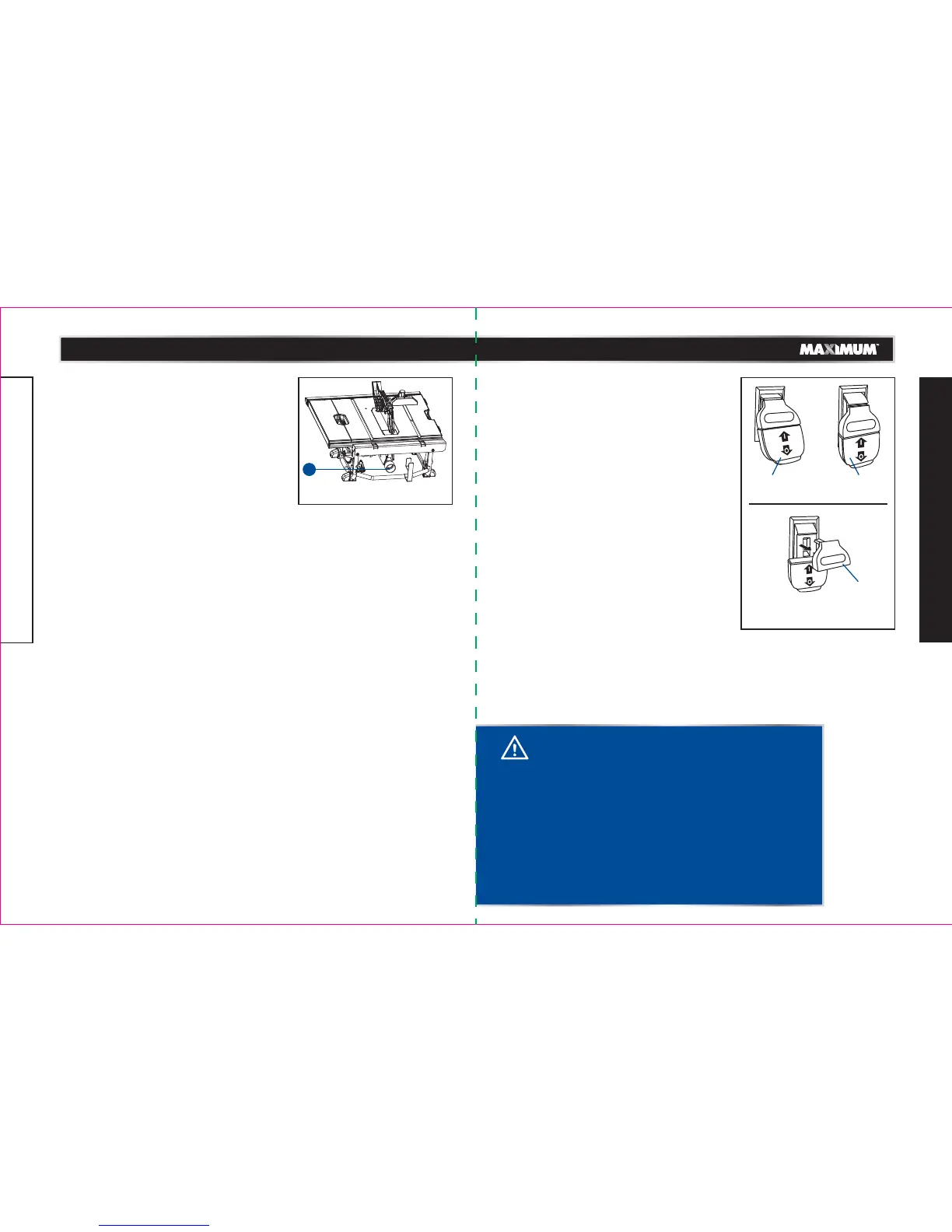

CONNECT TO A DUST COLLECTION SYSTEM
(Fig. 34)
The dust extraction port (1) with 2.5" (6.35 cm) size
is located on the back of the table saw. This port can
be connected directly to a dust collection system by
connecting the pickup end of the dust collection
hose to the dust port.
BASIC OPERATION OF THE TABLE SAW
The three-prong plug must be plugged into a
matching outlet that is properly installed and
grounded according to all local codes and ordinances.
Improper connection of the equipment can result in
electric shock. Do not modify the plug if it will not fit
the outlet. Have the correct outlet installed by a
qualified electrician. Refer to the electrical safety
section in this manual.
POWER SWITCH (Fig. 35)
This saw is equipped with a switch assembly that has
a built-in locking feature. This feature is intended to
prevent unauthorized and possible hazardous use by
children and others.
TO TURN YOUR SAW ON:
• With the switch key inserted into the switch, lift the
switch to turn ON ( l ).
TO TURN YOUR SAW OFF:
• Press the switch down to turn OFF ( O ).
model no. 055-6766-2 | contact us 1-888-670-6682
OPERATION
model no. 055-6766-2 | contact us 1-888-670-6682
ASSEMBLY
Fig. 34
1
1
