Maximum 055-6767-0 User Manual

44
model no. 055-6767-0 | contact us 1-888-670-6682
OPERATION

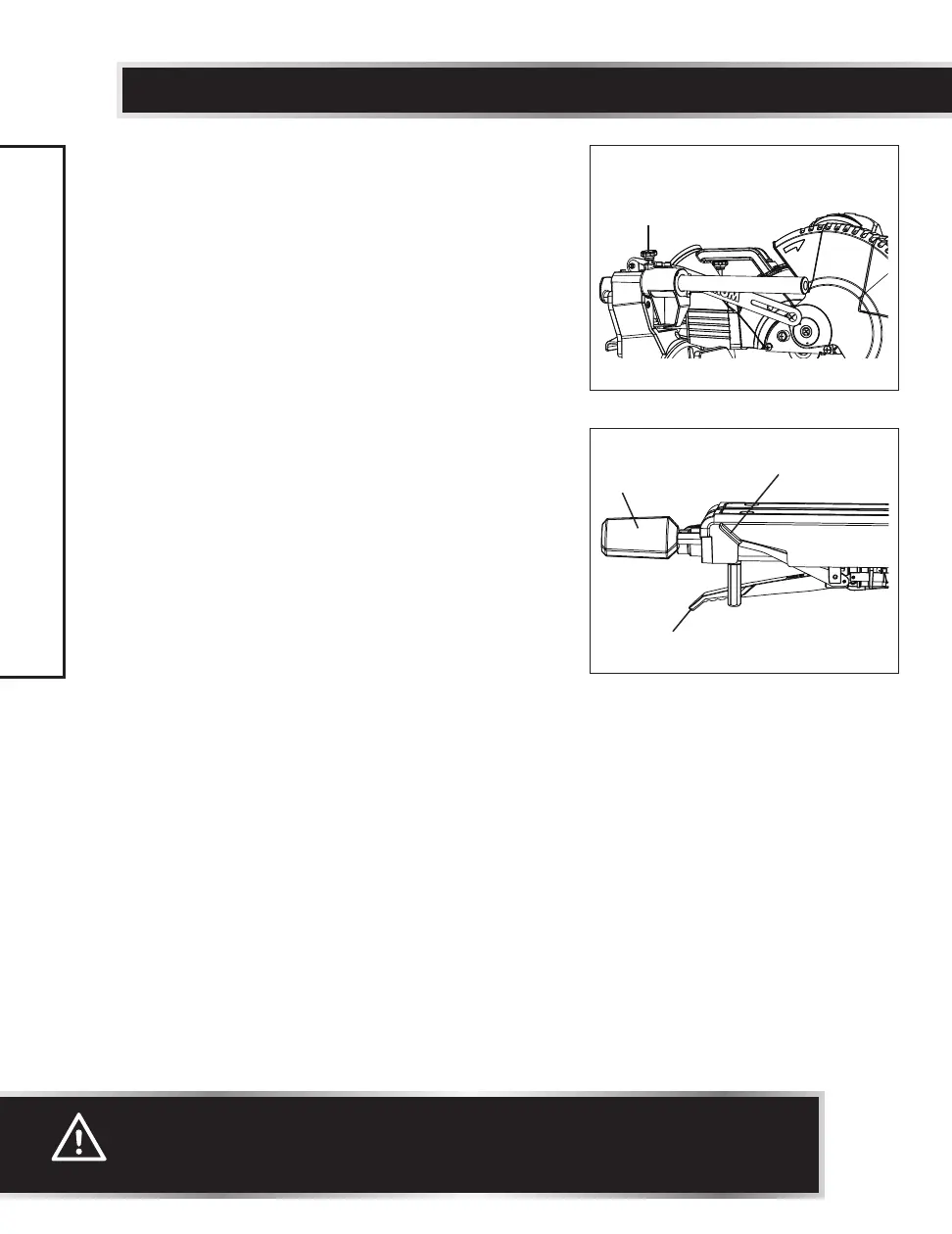

SLIDING CARRIAGE SYSTEM (Fig. 36)
• For chop cutting operations on small
workpieces, slide the cutting head
assembly completely towards the rear of
the unit and tighten the sliding carriage
lock knob (1).
• To cut wide boards up to 12 1/2", the sliding
carriage lock knob (1) must be loosened to
allow the cutting head to slide freely.
QUICK-CAM MITRE TABLE LOCK
OPERATION (Fig. 37)
If required mitre angles are NOT one of the
nine positive stops, the mitre table can be
locked at any angle between these positive
stops by using the quick-cam mitre table lock.
• Unlock the mitre table by lifting the quick-
cam mitre table lock (1).
• While holding the positive stop locking
lever (2) up, grasp the mitre handle (3) and
move the mitre table left or right to the
desired angle.
• Release the positive stop locking lever (2).
•
Press down on the quick-cam mitre table
lock (1) until it locks the mitre table in place.
NOTE: The quick-cam mitre table lock should
lock the table and prevent it from moving. If
adjustment is needed, see the section “QUICK-
CAM MITRE TABLE LOCK ADJUSTMENT.”
Fig. 36
1
Fig. 37
1
2
3
WARNING!
• To reduce the risk of injury, return carriage to the full rear position after
each crosscut operation.
