Maximum 055-6767-0 User Manual

63
REPLACEMENT PARTS
I.D. No. Description Size Q'ty I.D. No. Description Size Q'ty
0HUR BALL BEARING 1 3FJE CLEVIS PIN 1
0HUZ BALL BEARING 1 3FJF LOCK KNOB 1
0HVK BALL BEARING 1 3FJM MOTOR COVER 1
0HX9 NEEDLE BEARING 1 3FJR GEAR BOX 1
0J6H FLAT WASHER φ15.02*19.2-1 1 3GGU OIL CAP 1
0JEA C-RING 1 3GGW FLOW GUIDE 1
0JEC C-RING 1 3GGX MOTOR REAR COVER 1
0JG7 PARALLEL KEY 1 3GH6 HALL SENSOR ASS’Y 1
0K6X CR. RE. TRUSS HD. SCREW M4*0.7-6 2 3H48 ARMATURE ASS’Y 1
0KCP
CR. RE. PAN HEAD TAPPING & WASHER SCREW M5*12-60 2 3H49 CONTROLLER ASS’Y 1
0QM2 BRUSH HOLDER ASS’Y 2 3H5A NEEDLE ROLLER 2
0QQT BRUSH ASS’Y 2 3H5C OIL PAPER 1
0QR0 BRUSH COVER 2 3H7F FIELD ASS’Y 1
20ZA C-RING 1 3H9V LEAD WIRE ASS’Y 1
2RUY BALL BEARING 1 3HJN HEX. SOC. HD. CAP SCREW M5*0.8-25 4
33NE MAGNET 1 3HJR HEX. SOC. TRUSS HD. SCREW M5*0.8-10 1
35V0 BEARING BUSHING 1 3HJS HEX. SOC. TRUSS HD. SCREW M4*0.7-6 4
3FJ5 ARM 1 3HK5 FLAT WASHER φ5*16-2 1
3FJ6 CUTTER SHAFT 1 3HLH HEX. SOC. SET SCREW M5*0.8-6 2
3FJ7 COLLAR 1 3JDW PARALLEL KEY 1
3FJ8 HELIX GEAR 1 3JDY CR. RE. PAN HD. TAPPING SCREW M4*16-8 1
3FJA GEAR SHAFT 1 3GGC COMPRESSION SPRING 1
3FJB STRAIGHT BEVEL GEAR 1 3KTS SOC. COUNTERSUNK HEAD TAPPING SCREW M5*16-25 2
3FJD FRONT HOUSING 1 3KUC SOC. PAN HEAD & WASHER SCREW M5*0.8-60 4
MAXIMUM™ 10" DUAL-BEVEL SLIDING MITRE SAW

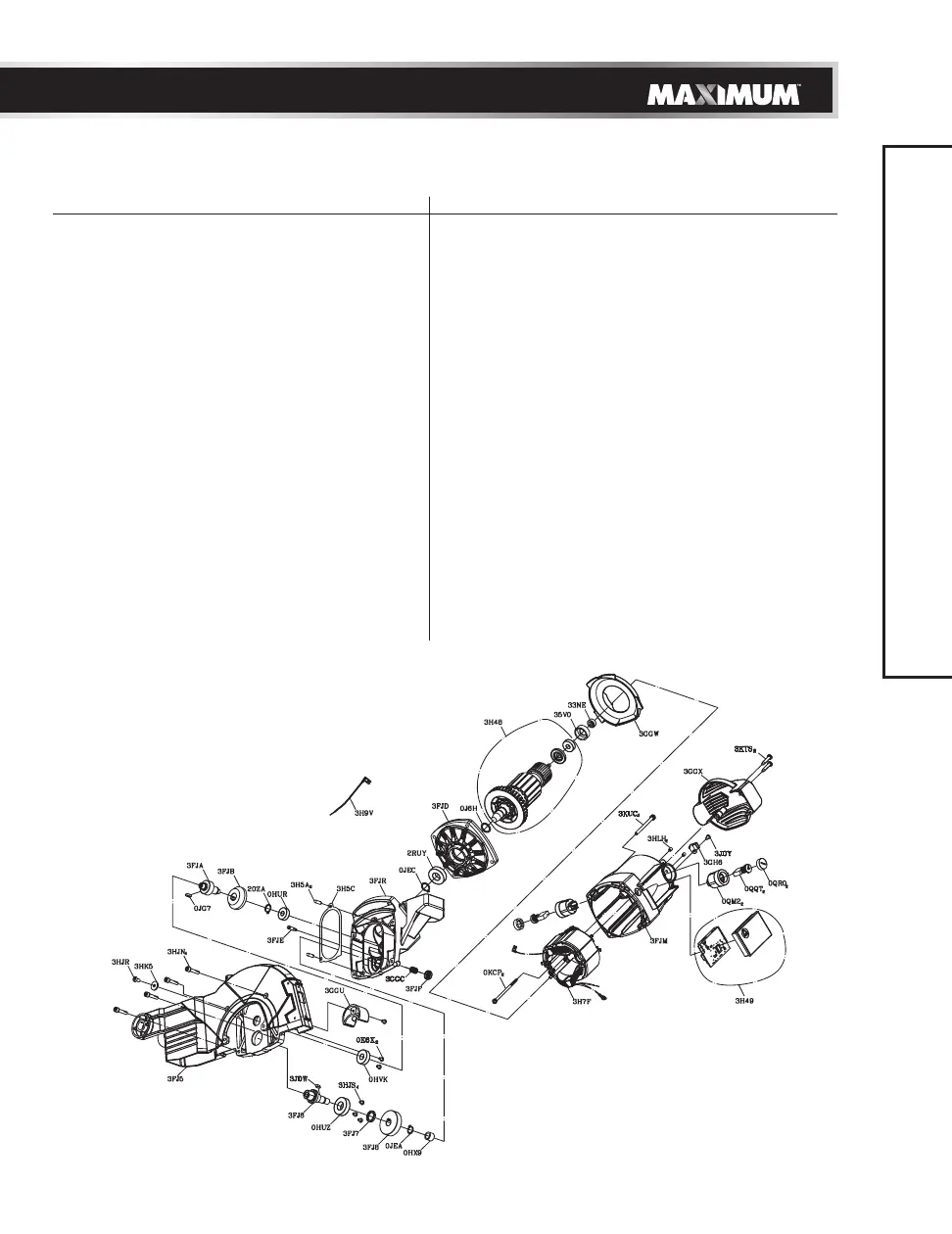

PARTS LIST FOR MOTR
