Maxitrol Mertik GV60 - Installation Instructions; Application; Components

3 / 20
© 2019 Mertik Maxitrol GmbH & Co. KG, All Rights Reserved.
ENGLISH
G60-ZMA3 with
connections for
EU, UK, and U.S.
Figure 4: Additional Function RF: FAN – Light/Dimmer – Latching Solenoid
INSTALLATION INSTRUCTIONS FOR OEM USE ONLY
Figure 2: Operation
Switch Panel
with cable
G6R-SPKS…
Wall Switch US
G6R-ZWSN..-...
Wall Switch EU
G6R-ZWSE...
Touchpad
G6R-TPN…
Cable Wall Switch/Touchpad
G6R-CWSN…
Figure 3: Basic RF
Standard receiver
G6R-R3(4)AM...
Ignition Cable
G60-ZKIS...
8 Wire Cable
Combination Control – Receiver
G6R-C…
Interrupter Block
G60-ZUS...
Thermocurrent Cable
Interrupter – Receiver TC
G60-ZKIRS…
Combination Control
GV60
Thermocurrent Cable, Interrupter Block – Receiver SW
without ON/OFF switch
G60-ZKIRSWS…
or
Universal receiver
G6R-R3(4)AU...
Cable with Relay (optional)
G6R-CLB…, G6R-CDB…
or
Battery Box
G60-ZB(S)90/...
with ON/OFF switch
G60-ZSKS(L)S…
Latching Solenoid Valve
(with cable)
GV-S60…
Cable V Module – Receiver
G6R-CBV...
V Module
G6R-BU(E)…
Receiver
G6R-R3(4)AU...
Figure 6: RF 2
nd
Thermocouple Option
Figure 5: Mains Adapter
Receiver
G6R-R3(4)AUT
2nd Thermocouple Cable
G60-ZCTC...
Ground Cable
G60-ZCGTC/…
Cable with Relay
G6R-CL..., G6R-CD... (optional)
Infrared handset
G6R-HIO…
Infrared Sensor
G6R-IRC
Receiver
G6R-RIAE
Figure 7: Infrared (IR)
APPLICATION
GV60 is a battery-powered electronic remote ignition and control system for gas appliances with pilot burners and ODS systems.
Standard RF handset
G6R-H3S...
G6R-H4S...
Display RF handset
G6R-H3D...
G6R-H4D...
Timer/Thermostat RF
handset
G6R-H3T...
G6R-H4T...

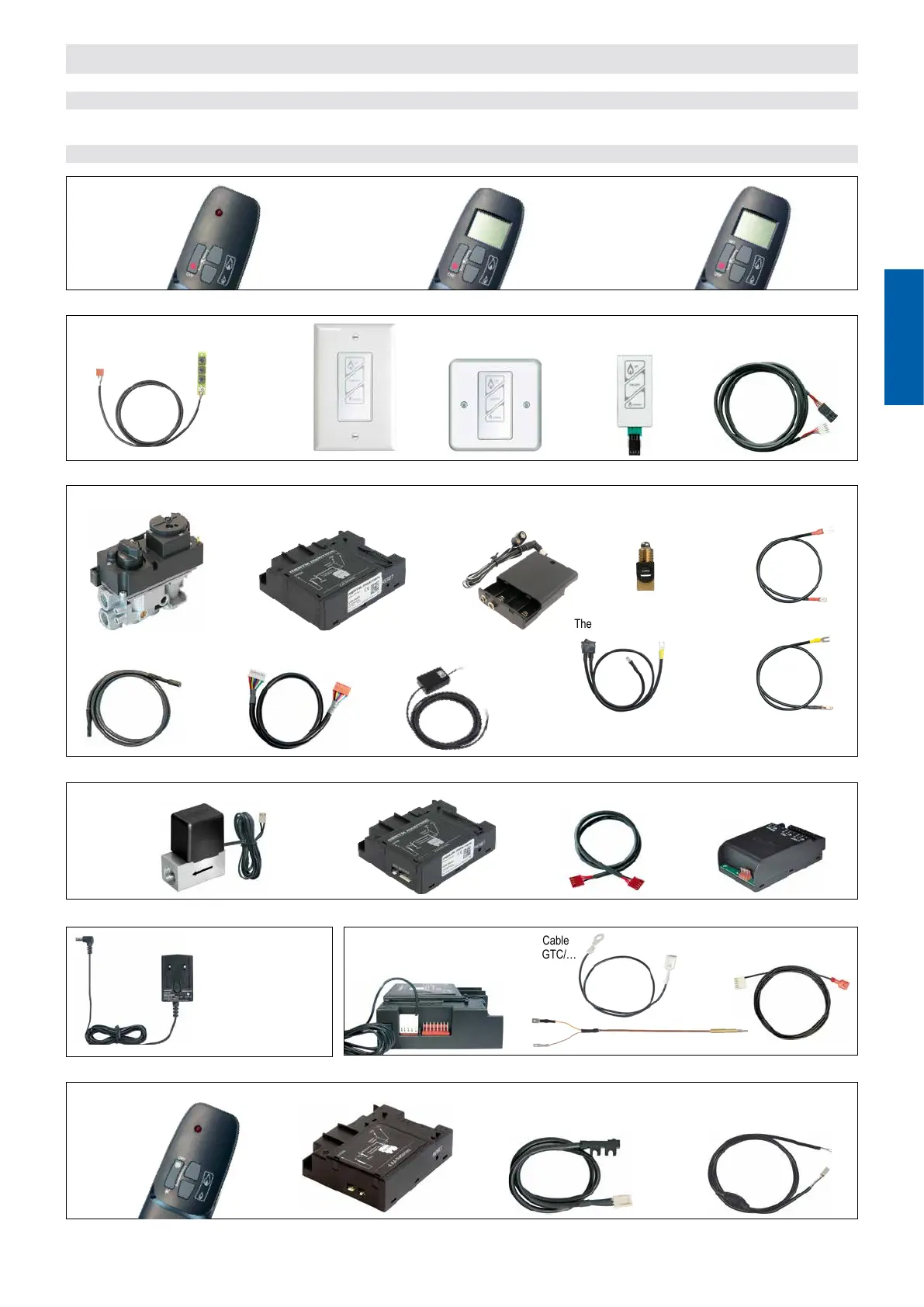

Figure 1: Remotes
COMPONENTS
2nd Thermocouple G60-ZPT…
