47

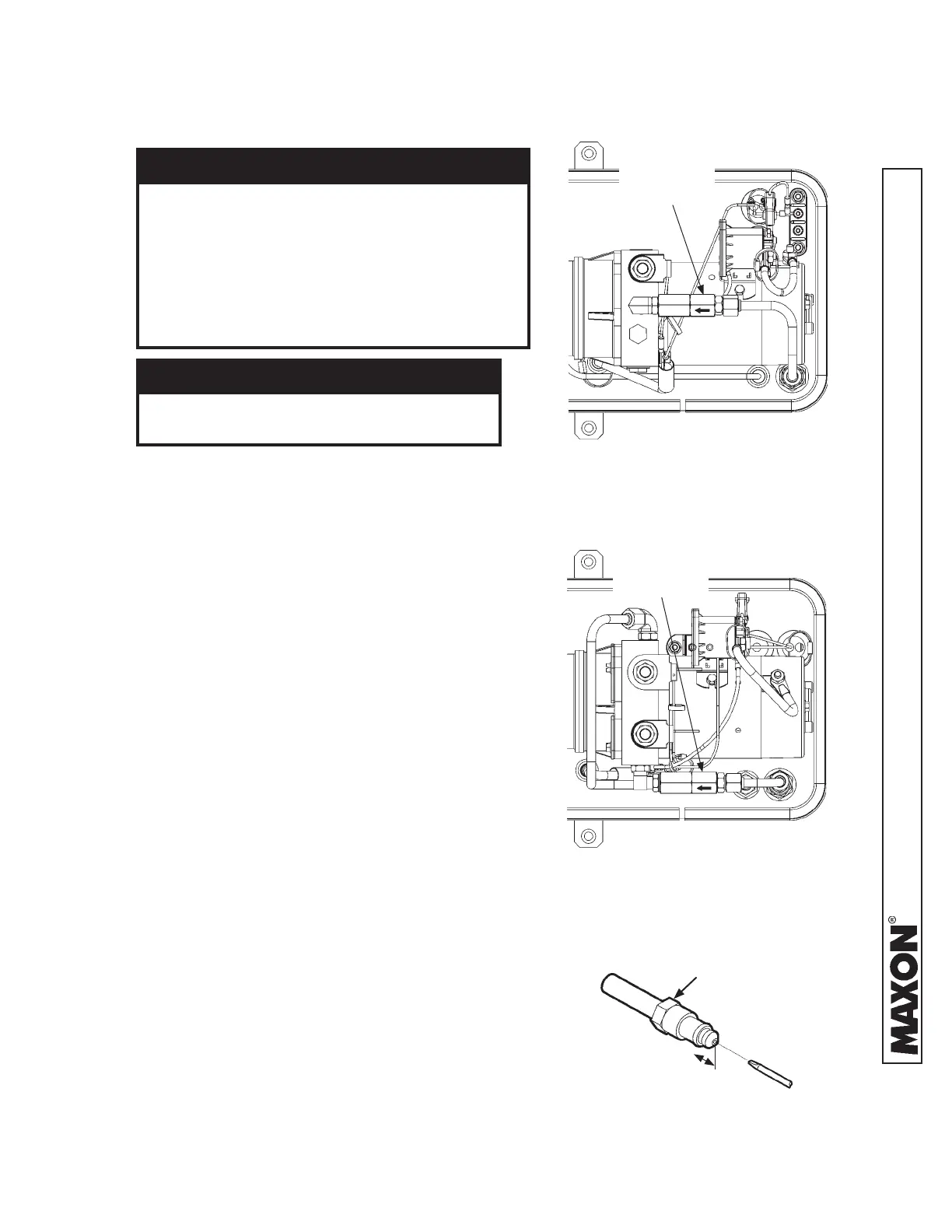

4. Make sure platform is on the ground. Check
the fl ow control valve as follows. Remove
fl ow control valve (FIGS. 47-1 or 47-2).
Ensure the fl ow control valve operates with
a smooth spring-loaded action. Check for
debris inside the valve. Clean or replace the
fl ow control valve, if necessary. Reinstall fl ow
control valve (if good) or a replacement.
5. Check the lowering solenoid valve as follows.
Check if fi ltering screen is plugged. Clean
carefully if required. Push on the plunger in the
valve by inserting small screwdriver in the open
end (FIG. 47-3). If the plunger does not move
with a smooth, spring-loaded action (approxi-
mately 1/8”), replace the valve cartridge. Re-
install lowering solenoid valve (if good) or a
replacement. Torque valve cartridge to 25-30
lb-ft and hex nut to 30 lb-in.
To prevent damage to fl ow control
valve, do not disassemble the valve.
CAUTION
CHECKING SOLENOID VALVE
FIG. 47-3
FLOW CONTROL VALVE ON BACK OF
POWER DOWN PUMP ASSEMBLY
FIG. 47-2
Keep dirt, water and other contaminants
from entering the hydraulic system. Before
opening the hydraulic fl uid reservoir fi ller
cap, drain plug and hydraulic lines, clean
up contaminants that can get in the open-
ings. Also, protect the openings from acci-
dental contamination during maintenance.
CAUTION
VALVE CARTRIDGE
1/8”
FLOW CONTROL VALVE ON BACK OF
GRAVITY DOWN PUMP ASSEMBLY
FIG. 47-1
FLOW
CONTROL
VALVE
FLOW
CONTROL
VALVE
