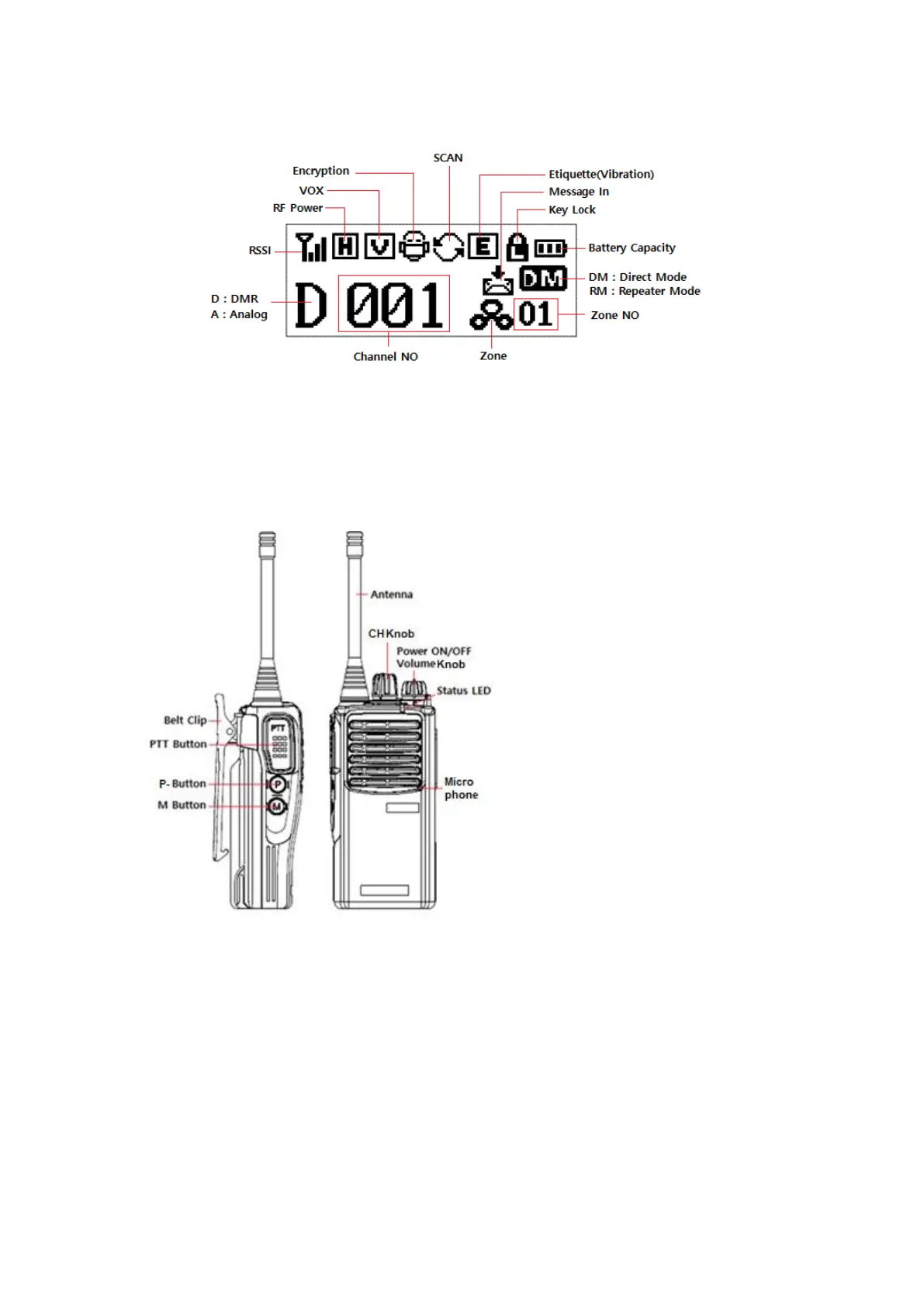

Power ON/OFF Volume Knob
Turns radio on/off and adjusts audio volume level.
Channel Knob
Change channels by turning the control knob
clock-wise or counter-clockwise. 16 Channels can
be inputted into each zone. A voice response will
notify the user when the channel has been
changed. If the channel is not assigned, the radio
will beep.
PTT Button
Press the PTT button to transmit voice. Release
the PTT button to receive voice. It is recommended
to talk 2” to 4” away from the microphone.
P Button
Default function of this button is to easily toggle
between high transmit power and low transmit
power to save battery life. This button can be
reassigned through radio programming.
M Button
Default function of this button is to “Monitor” the
open channel. This button can be re-assigned
through radio programming.
TOP Button (Orange)
Default function of this button is “Emergency /
SOS”, This button can be assigned a different
function through radio programming.
